Customized stainless steel tube chain conveyors are suitable for grain, fertilizer, and feed transportation in space-saving applications.

Categories	Chain Scraper Conveyor
Brand Name:	WESEW
Model Number:	W003
Certification:	ce
Place of Origin:	china
MOQ:	1pcs
Price:	US$75000~US$20,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month
Delivery Time:	20~35 working day
Packaging Details:	Wooden Case
Material:	Stainless steel
Material Feature:	Heat Resistant, Fire Resistant
Application:	Chemical Industry, Grain Transport, Mining Transport, Power Plant
Applicable Industries:	Manufacturing Plant, Energy & Mining
Core Components:	Motor, Engine
Dimension(LWH):	Customized
Specification:	Customized
Structure:	Chain Conveyor

Contact Now

Add to Cart

Company Info.

Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Customized stainless steel tube chain conveyors are suitable for grain, fertilizer, and feed transportation in space-saving applications.

tube chain conveyor system full enclosed tubular chain conveyor pipe chain conveyor

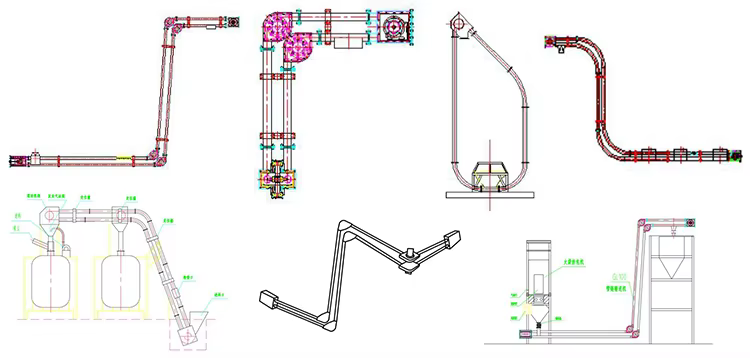

Tube Chain Conveyor, also called plate chain conveyor, is a mechanical system that operates in a seal pipe. Its feature is the stable property and saving the energy consumption in conveying system. It can contiguously convey bulky material, such as powder,fine particle and small lump and so on. It can convey in the level, the incline and the vertical. It widely applies in the chemical industry, the chemical fiber, the agricultural chemicals, ore, the food industry, the building materials, ect..

   SPECIFICATIONS FOR BELT CONVEYOR

 Motor
 Motor Power
 Kw
 4-80

 Power
 Voltage
 380/220


Main performance parameters
 Chain Wheel Speed
 r/min
 8-20

 Chain plate speed
 m/s
 3

 Conveying Quantity
 CBM/h
 4-80



Steel wire rope conveyor
Compact structure, Can be universal turning2.No dead area
discharge at multiple points; no special airlocks
adjustable plate spacing
Suitable for small capacity material conveying
Cheaper than the plate chains, chains
Low maintenance cost

  Model
 Capacity(m³/h)
 Chain Wheel Speed(r/min)
 Chain Plate Speed(m/s)
 Motor powder(kw)

 GL80
 4
 20
 0.29
 4

 GL100
 8
 18
 0.31
 5.5

 GL150
 16
 15
 0.31
 7.5

 GL200
 28
 12
 0.3
 11

 GL250
 48
 10
 0.3
 15

 GL300
 60
 8
 0.28
 18.5

 GL400
 80
 8
 0.28
 22

 Technology advantage

1. Scientific Design--In chain conveyor design, we have anti-off chain device and chain-broken protection device, matching color disc, the chain reverse recognition; add emergency outlet to ensure resume production rapidly.
2. Perfect Service--Have rich experience on manufacturing and installing. There are enough spare parts.
3. Rich Experience--Boyang chain conveyors have rich experience based on being use in most industries and treat widest range materials. Max Capacity is 300m³/h.Vertical conveying length up to 40 m,and horizontal conveying length up to 60 m.
4. Powerful Strength--Boyang Machinery Company is strong in technology and established research base with universities. It has two research centers. It is high-new-tech enterprise with more than 30 engineers and technicians.
5. Advanced Technology--Advanced control system,with online status detection system,could timely alarm interlock in the case of abnormal running to avoid equipment accidents.
6. Excellent Performance--The sofe disc could bear high temperature up to 250℃.The system could working at 500℃.
