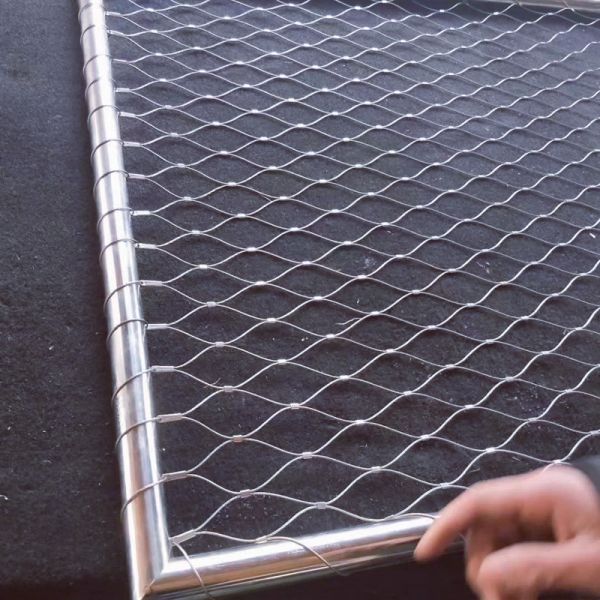

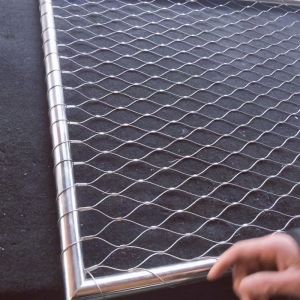

Ferrule 2'' X 2'' Frame Wire Rope Mesh Stainless Steel For Safety Barries

2'' X 2'' Frame Rope Mesh Stainless Steel For Safety Barries

Introductions of Frame Rope mesh

The frame rope mesh is a type of structural or decorative mesh system consisting of ropes or cables tensioned within a rigid frame. It is commonly used in architectural, industrial, and recreational applications for safety barriers, partitions, climbing structures, or aesthetic designs.

Data sheet of Frame Rope Mesh

Rope mesh	Wire Rope dia		Rupture Stress(W×H)		Rupture Stress
Item no	inch	mm	inch	mm	lbs.
XY-32120	1/8	3.2	4.75 x 8.23	120 x 207.8	1,600
XY-32102	1/8	3.2	4 x 6.9	102 x 176.7	1,600
XY-3290	1/8	3.2	3.55 x 6.15	90 x 156	1,600
XY-3276	1/8	3.2	3 x5.2	76 x 131.6	1,600
XY-3251	1/8	3.2	2 x3.46	51 x88.3	1,600
XY-24102	3/32	2.4	4x6.9	102x176.7	920
XY-2490	3/32	2.4	3.55x6.15	90x 156	920
XY-2476	3/32	2.4	3 x 5.2	76x 131.6	920
XY-2460	3/32	2.4	2.4x 4.16	60x 104	920
XY-2451	3/32	2.4	2x3.46	51 x 88.3	920
XY-2076	5/64	2.0	3 x 5.2	76 x 131.6	676
XY-2060	5/64	2.0	2.4x 4.16	60 x 104	676
XY-2051	5/64	2.0	2 x 3.46	51 x 88.3	676
XY-2038	5/64	2.0	1-1/2 x 2.6	38 x 65.8	676
XY-1676	1/16	1.6	1.2 x2.08	76 x 131.6	480
XY-1651	1/16	1.6	2x 3.46	51 x 88.3	480
XY-1638	1/16	1.6	1-1/2 x 2.6	38 x 65.8	480
XY-1630	1/16	1.6	1.2x2.08	30 x 52	480
Note	The rope mesh could be could be made as request , and the frame size must be properly tensioned

Features of the Frame Rope Mesh

✔ Durability – Resistant to weather and wear.
✔ Flexibility – Can be designed in various patterns (square, diamond, etc.).
✔ Visibility & Airflow – Provides safety without obstructing views or ventilation.
✔ Aesthetic Appeal – Modern, minimalist look for architectural projects.

Packing of the Frame Rope Mesh

• The frame rope mesh could be packed in bulk.
• The frame rope mesh with frame would be fastene on pallets.
• Rope mesh packed in wooden case, and frame cold be customized in the clien's local market .

Application of the Frame Rope Mesh

• Safety Barriers – Fall protection in elevated walkways or balconies.
• Playgrounds & Climbing Structures – For adventure parks or kids' play areas.

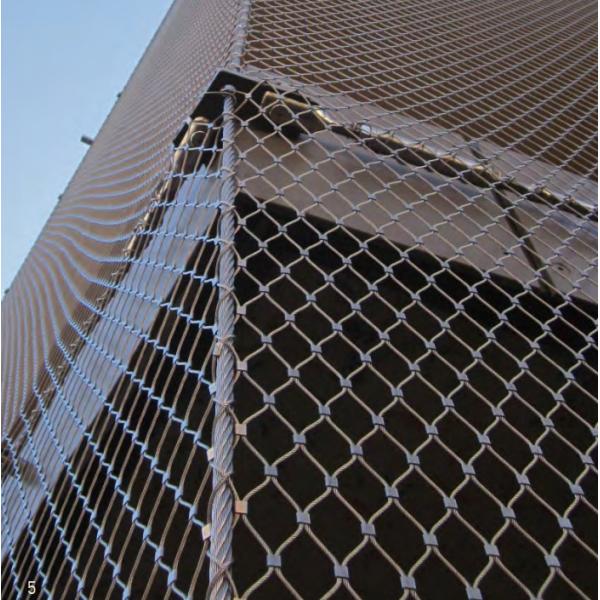

• Architectural Design – Decorative facades, partitions, or shading systems.
• Industrial Use – Cargo nets, animal enclosures, or warehouse dividers.

Tips of the Frame Rope Mesh

The frame rope mesh would take too much sapce , to save the freight , the client could cusotmized the frame in their local market , and then install the rope mesh on the frame by the following guide .

Anping County Huihao Wire Mesh Manufacture Co., Ltd
