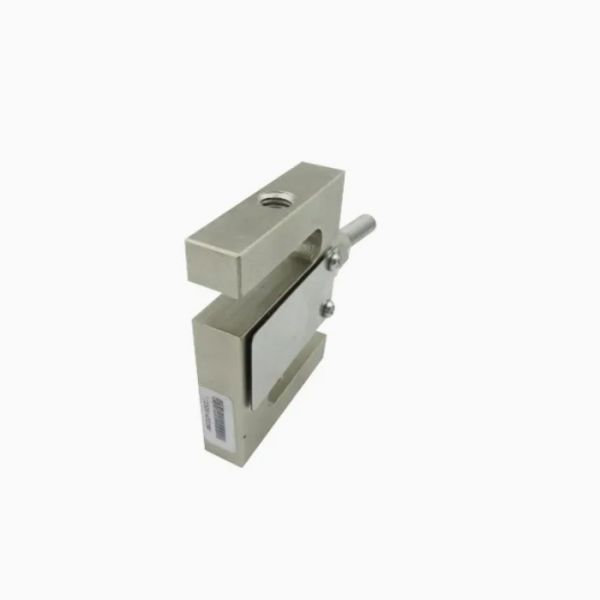

Micro Tension Sensor Stainless Steel Weighing Tension Sensor

Categories S Type Load Cell
Brand Name: RUIJIA
Model Number: RJ
Certification: CE
Place of Origin: CHINA
MOQ: 1
Price: USD20 ~100/piece
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Month
Delivery Time: 5-8 Work days
Packaging Details: Standard export packaging
Output Signal Type: Analog Type
Production Process: Normal Wirewound
IP Rating: IP65
Out-Wire: 4-Wire
Material: Stainless Steel
HS Code: 9031809090
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Micro Tension Sensor Stainless Steel Weighing Tension Sensor

Micro Tension Sensor Stainless Steel Weighing Tension Sensor

Product size drawing
Micro Tension Sensor Stainless Steel Weighing Tension Sensor

capacity A B C M
10kg~30kg 50.8 12.7 64 M8
50kg~300kg 50.8 19.1 76.2 M12*1.75
500kg~2000kg 50.8 25.4 76.2 M12*1.75/M16*2
2000kg~5000kg 76.2 25.4 108 M18*1.5


Product parameter list

capacity kg 10~5000kg
Rated Output mv/v 2.0±0.2
Non-linearity %F.S 0.03
Hysteresis %F.S 0.03
Repeatability %F.S 0.03
Creep %F.S/3min 0.03
Temp.effect on zero %F.S/10ºC 0.03
Temp.effect on span %F.S/10ºC 0.03
Zero balance mv/v ±0.03
Input impedance Ω 350±5
Output impedance Ω 350±5
Insulation resistance ≥5000(100VDC)
Recommended excitation voltage VDC 5~12
Allowed excitation voltage VDC 5~15
Compensated temp.Range ºC -10ºC~+40ºC
Operating temp.Range ºC -20ºC~+60ºC
Safe overload %F.S 120
Ultimate Overload %F.S 150
Connection Excitation: Red:+ Black:-
Signal: Green:+ White:-
