| Categories | TPO Waterproof Membrane |
|---|---|
| Brand Name: | HAOBANG |
| Model Number: | 1.2mm TPO waterproof membrane |
| Certification: | ISO |
| Place of Origin: | Shandong,China |
| MOQ: | 1,000 square meters |
| Price: | Price negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 680000 square meters per year |
| Delivery Time: | 6-7 work days |
| Packaging Details: | Packed in Roll and on Pallet |
| After-sale Service: | Online technical support, Return and Replacement |
| Uvresistance: | Excellent |
| Elongation At Rapture: | 500% |
| Application: | Roof |
| Design Style: | Traditional |
| Color: | Grey, White (Color can be customized) |
| Type: | Smooth Version |
| Port: | FOB QINGDAO |
| Company Info. |
| Weifang Haobang Waterproof Materials Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description

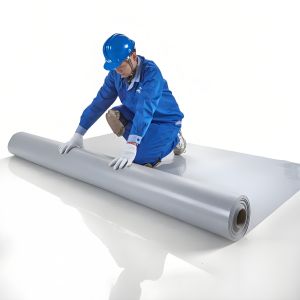

| Product Name | 1.2mm TPO Roofing Membrane (Smooth Version) |
| Material | TPO |
| Color | White |
Crafted from thermoplastic polyolefin (TPO) material — integrating the weldability of propylene-alpha-olefin copolymer resins derived from advanced polymerization processes and the durability of polypropylene resins — Haobang TPO-H is a homogeneous multi-layer composite thermoplastic polyolefin polymer waterproof membrane. Produced via sophisticated processing technology, it is specifically designed for detailed treatment of exposed roofs.
Technical Data Sheet
| GB27789-2011 TPO Waterproofing Membrane(Type H) | |||
| Tensile Properties | Value | ||
| Tensile strength | ≥ | MPa | 12 |
| Elongation at rapture | % | 500 | |
| Dimensional change rate on heating | % | 2 | |
| Low temperature bending | - | -40℃No Cracks | |
| Watertightness | - | 0.3 MPa,2h Watertight | |
| Impact resistance | - | - | 0.5 kg ·m, No water leakage |
| Peel strength at joints | N/mm | 4.0 or damaged | |
| Right angle tear strength | N/mm | 60 | |
| Water Absorption Rate(70℃168h) | % | 4 | |
| Heat aging (115℃) | |||
| Time | - | h | 672 |
| Appearance | - | - | No blistering,cracks,delamination,sticking or voids |
| Tensile strength retention | ≥ | % | 90 |
| Elongation retention at rapture | ≥ | % | 90 |
| Low temperature bendability | - | - | -40, No Cracks |
| Chemical resistance | |||
| Appearance | - | - | No blistering,cracksdelaminationsticking or voids |
| Tensile strength retention | ≥ | % | 90 |
| Elongation retention at rapture | ≥ | % | 90 |
| Low temperature bendability | - | - | -40℃,No Cracks |
| Artificial climate accelerates aging | |||
| Time | - | h | 2500 |
| Appearance | - | - | No blisteringcracks,delamination,sticking or voids |
| Tensile strength retention | % | 90 | |
| Elongation retention at break | ≥ | % | 90 |
| Low temperature bendability | -40℃, No Cracks | ||
| Wind uplift resistance | 4.3Kpa | 90 | |
Application
Transportation hubs: airport terminals, high-speed rail stations, passenger terminals...
Public buildings: convention and exhibition centers, exhibition halls, stadiums and gymnasiums...
New infrastructure: big data centers, logistics hubs...
Industrial plants: automobile, electronics, machinery, tobacco manufacturing facilities...
Advantages
Superior weldability;
Excellent low-temperature flexibility;
Outstanding dimensional stability;
Strong elongation performance;
Good impact resistance;
High sunlight reflectivity;
Energy-efficient and eco-friendly, recyclable;
Long-term UV exposure resistance
Specification
