Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs

Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs

Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs
Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs
Categories TPO Waterproof Membrane
Brand Name: HAOBANG
Model Number: TPO(Smooth Version) 1.2mm*2m*20m
Certification: ISO
Place of Origin: Shandong,China
MOQ: 1,000 square meters
Price: Price negotiable
Payment Terms: T/T,L/C
Supply Ability: 680000 square meters per year
Delivery Time: 6-7 work days
Packaging Details: Packed in Roll and on Pallet
After-sale Service: Online technical support, Return and Replacement
Design Style: Traditional
Warranty: 1 Year
Roofing Application: Planted Roofs
Feathure: excellent tensile strength
Coil Length: 20m or as agreed by both parties
Shape: Roll material
Project Solution Capability: graphic design, total solution for projects, Cross Categories Consolidation
Application: Roof
Contact Now
Company Info.
Weifang Haobang Waterproof Materials Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs

Tough TPO Membrane Waterproofing – Weldable, Easy Construct for Steel Roofs

Product Description



Product Name1.2mm TPO Roofing Membrane (Smooth Version)
MaterialTPO
ColorWhite


Made from thermoplastic polyolefin (TPO) material — merging the weldability of propylene-alpha-olefin copolymer resins from cutting-edge polymerization processes with the durability of polypropylene resins — Haobang TPO-H is a homogeneous multi-layer composite thermoplastic polyolefin polymer waterproof membrane. Manufactured via state-of-the-art processing technology, it is dedicated to the detailed treatment of exposed roofs.


Technical Data Sheet



GB27789-2011 TPO Waterproofing Membrane(Type H)
Tensile Properties

Value
Tensile strength≥MPa12
Elongation at rapture
%500
Dimensional change rate on heating
%2
Low temperature bending
--40℃No Cracks
Watertightness
-0.3 MPa,2h Watertight
Impact resistance--0.5 kg ·m, No water leakage
Peel strength at joints
N/mm4.0 or damaged
Right angle tear strength
N/mm60
Water Absorption Rate(70℃168h)
%4
Heat aging (115℃)


Time-h672
Appearance--No blistering,cracks,delamination,sticking or voids
Tensile strength retention≥%90
Elongation retention at rapture≥%90
Low temperature bendability---40, No Cracks
Chemical resistance


Appearance--No blistering,cracksdelaminationsticking or voids
Tensile strength retention≥%90
Elongation retention at rapture≥%90
Low temperature bendability---40℃,No Cracks
Artificial climate accelerates aging


Time-h2500
Appearance--No blisteringcracks,delamination,sticking or voids
Tensile strength retention
%90
Elongation retention at break≥%90
Low temperature bendability

-40℃, No Cracks
Wind uplift resistance
4.3Kpa90



Application


  • Transportation hubs: airport terminals, high-speed rail stations, passenger terminals...


  • Public buildings: convention centers, exhibition halls, sports venues...


  • New infrastructure: big data centers, logistics complexes...


  • Industrial facilities: automobile, electronics, machinery, tobacco manufacturing plants...

Advantages


  • Superior weldability;
  • Excellent low-temperature flexibility;
  • Outstanding dimensional stability;
  • Good elongation property;
  • Good impact resistance;
  • High solar reflectivity;
  • Energy-efficient and eco-friendly, recyclable;
  • Long-term UV resistance


Specification

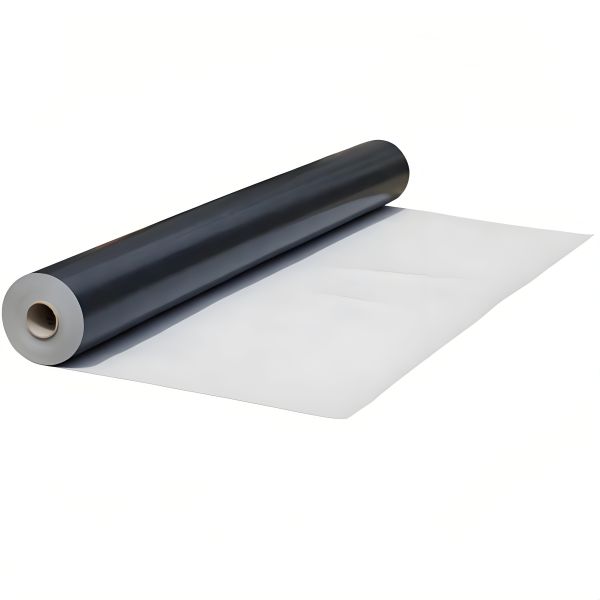

Each standard roll is individually encapsulated in polyethylene film. The width is 2.0m, and the length varies according to the thickness of the membrane.
  • 0.8mm 30m(Each roll weighs about 48-50kg)
  • 1.2mm 25m(Each roll weighs about 62-64kg)
  • 1.5mm 20m(Each roll weighs about 62-64kg)
  • 1.8mm 15m(Each roll weighs about 56-58kg)
  • 2.0mm 15m(Each roll weighs about 62-64kg)



FAQ



Q: Are samples free of charge?
A: Yes, samples under 1M² or 1KG are complimentary, with the buyer responsible for freight costs.
Q: Can I use my own shipping agent?
A: Yes, your designated shipping agent is welcome.
Q: Is the price negotiable?
A: Preferential discounts are available for bulk orders.
