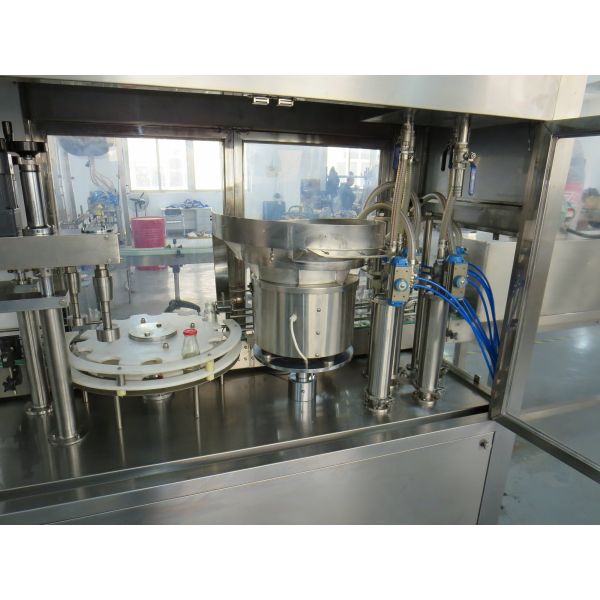

Engineered for scalable production environments, the YIMUPACK YMF4C1 is a fully automated integrated filling and capping solution tailored for medium-to-large output lines. It specializes in 10–1000ml packaging of oils, juices, and high-viscosity fluids (ketchup, chilli sauce). Featuring a 4-nozzle piston pump system, PLC management, and adaptable capping heads, it achieves >99.5% filling precision and >99.9% capping accuracy—optimized for food, beverage, daily chemical, and chemical sectors requiring streamlined packaging of glass/plastic bottles and jars. This system consolidates automatic filling, cap feeding, and capping into a unified workflow, delivering high throughput, broad adaptability, and resilient performance across multi-product manufacturing operations.
| 4-nozzle piston pump configuration | Elevates throughput by threefold versus single-nozzle units; processes viscous liquids without blockages |
| >99.5% filling + >99.9% capping accuracy | Minimizes material loss and rejects; satisfies rigorous volume/closure standards |
| Full automation (filling + cap feeding + capping) | Removes manual handling; substitutes 4–5 personnel; reduces annual labor expenses by 60%+ |
| Broad adaptability (materials + containers + caps) | Addresses 95%+ standard packaging cases; avoids multiple specialized machines, cutting capital expenditure |
| Customizable voltage + capping heads | Adapts to global power standards and production demands (e.g., 6-nozzle expansion for higher capacity) |
| Product Name | YIMUPACK YMF4C1 Automatic Filling & Capping Machine (Glass/Plastic Bottles/Jars; Viscous Liquids) |
| Brand/Model | YIMUPACK / YMF4C1 |
| Origin | Shanghai, China |
| Power Configuration | Electric (220V/380V/415V, customizable to regional standards) |
| Automation Level | Fully automatic |
| Applicable Materials | Oil, juice, high-viscosity liquids (ketchup, chilli sauce, peanut butter) |
| Applicable Containers | Glass bottles, plastic bottles, jars (bottle diameter: 30–100 mm) |
| Applicable Caps | Plastic/metal caps (cap diameter: 28–88 mm) |
| Core Components | Motor, Piston Pump, PLC (Programmable Logic Controller), Capping Head |
| Dimensions & Weight | 250010002000 mm; Net/Gross Weight: 650 kg |
| Warranty & After-Sales | 2-year warranty; video/online technical support, spare parts supply |
| Quality Verification | Machinery test report; video outgoing-inspection; TVRheinland certified |
| Filling System | 4-nozzle Piston Pump | High precision for viscous fluids; prevents blockages versus standard pumps |
| Filling Volume | 10–1000 ml | Supports small (10ml essence) to medium (1000ml sauce) packaging requirements |
| Filling Speed | 25–35 bottles/min (varies by viscosity/bottle size) | Aligns with medium-to-large output lines; achieves up to 2100 bottles/hour |
| Filling Accuracy | >99.5% | Guarantees consistent fill levels; curbs overfilling/underfilling waste |
| Capping System | 1 capping head (customizable to multiple heads) | Scales with production needs; >99.9% accuracy minimizes cap damage |
| Machinery Capacity (Variant) | 2000 BPH (Bottles Per Hour) | Meets industrial throughput demands |
| Power Consumption | 2000 W | Energy-efficient for uninterrupted 24/7 operation |
| 3.1 Precision Multi-Nozzle Filling | Four piston pump nozzles operate concurrently, achieving >99.5% fill accuracy—optimized for viscous media (ketchup, chilli sauce) prone to clogging conventional systems. Broad dosage range (10–1000ml) enables multi-SKU production without complex recalibration. |
| 3.2 Gentle High-Accuracy Capping | Single capping head (expandable to multiple units) maintains >99.9% accuracy while minimizing cap deformation. Compatible with plastic and metal caps (28–88mm diameter), reducing manual adjustments during cap type transitions. |
| 3.3 Labor-Efficient Automation | Unifies automatic filling, cap feeding, and capping into a continuous flow—eliminating post-startup manual intervention. Ideal for medium-to-large lines, enhancing efficiency by 50% compared to standalone filling/capping equipment. |
| 3.4 Cross-Industry Adaptability | Accommodates varied container materials (glass/plastic) and sizes (30–100mm diameter), plus fluids of differing viscosities (oil, juice, thick sauces). Serves cross-sector requirements (food, beverage, daily chemicals, low-corrosive chemicals) without specialized modifications. |
| Food Industry | Ketchup, chilli sauce, peanut butter, edible oil (10–1000ml bottles/jars) |
| Beverage Industry | Fruit juice, vegetable juice, syrup, functional drinks |
| Daily Chemicals | Liquid detergent, hand sanitizer, hair care products (plastic bottles) |
| Chemical Industry | Low-corrosive liquid reagents (small glass jars) |
| Order Quantity (Sets) | Lead Time (Days) |
| 1 | 20 |
| 2 – 3 | 30 |
| ＞ 3 | Negotiable |
| Packaging Material | Export-standard wood (shock-proof) |
| Package Size | 250120220 cm |
| Gross Weight | 650 kg |
| Selling Unit | Single item |
| Logo Customization | Print brand logo on machine body/operation panel | 1 set |
| Packaging Customization | Tailor brand-colored export wooden cases | 1 set |
| Graphic Customization | Multi-language operation interface (for global use) | 1 set |
| Functional Customization | Adjust number of filling/capping heads (e.g., upgrade to 6 filling heads) | 1 set |
| Business Background | Custom manufacturer integrating R&D, production, after-sales (founded 2016) |
| Scale | 888㎡ factory; 26 total staff |
| Quality Control | Drawing/sample-based customization, raw material traceability, 1 dedicated QA/QC inspector; TVRheinland certified |
| Core Capabilities | Full customization of filling & capping systems; specialization in high-precision viscous liquid packaging |
Seeking to enhance your integrated filling and capping process? I can develop a custom parameter reference table matched to your liquid viscosity (e.g., ketchup/oil), container dimensions (30–100mm diameter), and target fill volume (10–1000ml), guaranteeing >99.5% accuracy and optimized throughput. Shall we proceed?
|
