GHP Double Step Dust Seal Ring | Advanced Two-Stage Contamination Protection

Dual-Protection Sealing Technology for Extreme Environments

The GHP Double Step Dust Seal Ring represents a breakthrough in contamination control for hydraulic and pneumatic systems. Featuring an innovative two-stage sealing design, this advanced dust seal provides unparalleled protection against abrasive particles, moisture, and environmental contaminants in the most demanding industrial applications.

Product Overview

Dual-Stage Protection System

• Primary Wiper Stage - Effectively removes coarse contaminants and debris
• Secondary Sealing Stage - Provides additional barrier against fine particles
• Integrated Design - Combines two protection levels in one compact unit
• Optimized Geometry - Computer-designed profiles for maximum efficiency

Engineering Excellence

• ✅ Superior Contaminant Exclusion - Dual-lip design blocks particles of all sizes
• ✅ Reduced Maintenance Costs - Extends component life by preventing wear
• ✅ Easy Installation - Single-unit design simplifies assembly process
• ✅ Proven Reliability - Thousands of hours of field testing validation

Technical Specifications

Applications & Industries

Construction & Heavy Equipment

• Excavator Cylinders - Protection for boom, arm, and bucket rods
• Loader Applications - Lift and tilt cylinder contamination control
• Crane Systems - Telescopic boom and outrigger rod protection
• Bulldozer Equipment - Blade and ripper cylinder applications

Industrial Machinery

• Hydraulic Presses - Ram and platen guide protection
• Injection Molding - Clamp unit rod sealing
• Machine Tools - Slideway and guideway protection
• Automation Equipment - Linear actuator rod sealing

Specialized Applications

• Mining Equipment - Extreme environment contamination control
• Agricultural Machinery - Implement cylinder protection
• Marine Systems - Saltwater environment durability
• Mobile Equipment - Off-road vehicle cylinder protection

Design Features & Benefits

Advanced Two-Stage Design

• Primary Lip - Heavy-duty wiper for large particle removal
• Secondary Lip - Fine particle barrier and additional sealing
• Optimized Angles - Perfect balance between wiping efficiency and friction
• Material Selection - Special compounds for specific environments

Performance Advantages

• Extended Component Life - Prevents abrasive damage to rods and cylinders
• Reduced System Contamination - Maintains fluid cleanliness
• Lower Maintenance Costs - Fewer replacements and less downtime
• Reliable Operation - Consistent performance in harsh conditions

Installation & Maintenance

Professional Installation

1. Surface Preparation - Clean and inspect rod surface
2. Proper Lubrication - Use compatible lubricant
3. Correct Orientation - Install with primary lip facing outward
4. Careful Handling - Avoid damaging lips during installation
5. Verification - Check for proper seating and alignment

Maintenance Guidelines

• Regular Inspection - Check during routine maintenance
• Lip Condition Monitoring - Look for wear or damage
• Cleaning Procedures - Remove accumulated debris
• Replacement Schedule - Follow manufacturer recommendations

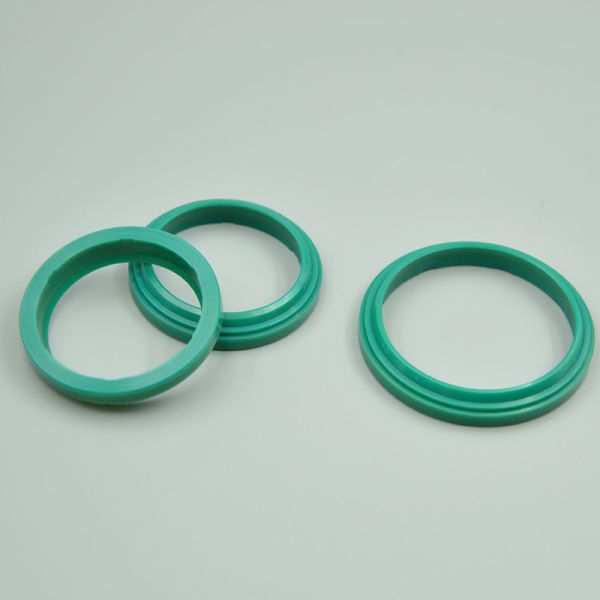

Product real photos
