| Categories | Rock Drilling Machine |
|---|---|
| Brand Name: | MTH |
| Model Number: | Y26 |
| Certification: | ISO 9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 3000 pieces per month |
| Delivery Time: | 10-15 days |
| Packaging Details: | wooden case |

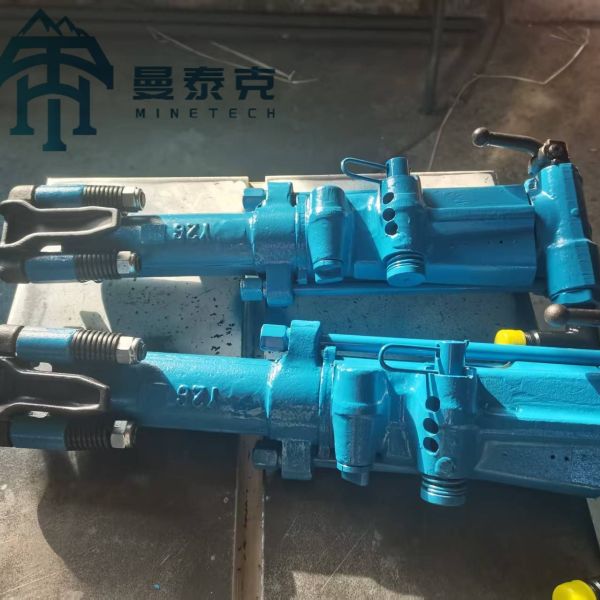

| Name: | Pneumatic portable drilling machine/Hand held rock drill/jack hammer |
| Model: | Y26 |
| Piston Stroke: | 60mm |
| Application: | Surface Mining, Quarrying, Construction |
| Feature: | High Drilling Efficiency |
| Weight: | 28kg |
| Company Info. |
| HEBEI MINETECH MACHINERY TECHNOLOGY CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Introduction
Y26 hand-held rock drill machine has the advantages of small size, light weight, low gas consumption and so on , suitable for small mines, quarries, mountain roads, water conservancy construction and other projects a vertical downward or sloping blasting hole or secondary blasting hole is drilled in the surface layer. Y26 rock drill with independent strong air blowing system is suitable for drilling vertical downward blasting holes.
Technical specifications:
| Weight | 26 | KG |
| Outside dimensions(L×W×H) | 650*534*125 | MM |
| Cylinder diameter | 65 | MM |
| Piston Stroke | 70 | MM |
| Working Pressure | 0.4 | Mpa |
| Impact energy | ≥30 | J |
| Impact frequency | ≥23 | HZ |
| Air consumption | ≤47 | L/S |
| Idling rotational speed | ≥200 | R/min |
| Noise | ≤124 | dB(A) |
| Working water pressure | 0.3-0.35 | Mpa |
| Air pipe inner diameter | 19 | MM |
| Water pipe inner diameter | 13 | MM |
| Rock drill hole diameter | 34-42 | MM |
| Rock drill hole depth | 5 | M |
| Shank Size | 22*108 | MM |
|
