1D 2D Barcode Scanner Module with DC 3.3V Power and 160mA Current for Fixed QR Code Reading

Categories Barcode Scan Engine
MOQ: 1
Price: 10
Model NO.: DE2120
Interface Type: USB
Scan Speed: 25cm/S
Scan Element: CMOS
Resolution: 4mil
Image Sensor: 640*480
Scan Mode: Auto Scan, Continuous
Print Contrast: 25%
Power Supply: DC 3.3V, 160mA Work
FFC Cable: 5cm
Drop Height: 1.2m
Dimensions: 21.2mm*16.0mm*12.0mm
Light Source: Red Light LED 625±10nm(aim), 5600K LEDs(Lighting)
CPU: 32-bit
Weight: <4g
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

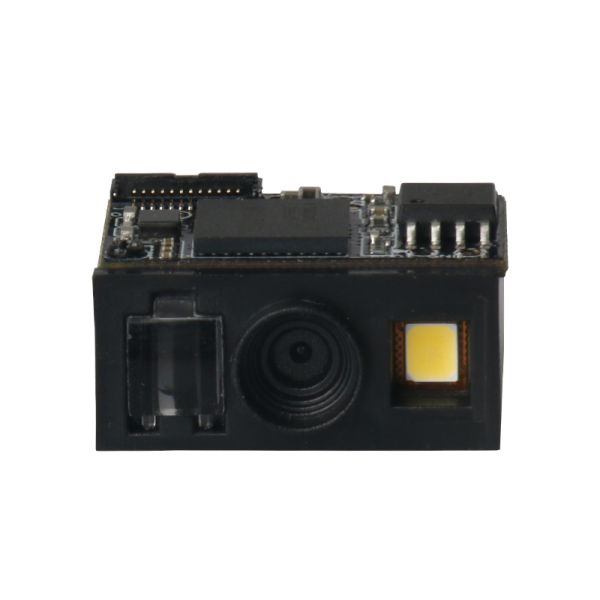

1D 2D Barcode Scanner Module with DC 3.3V Power and 160mA Current for Fixed QR Code Reading

Product Description



1d 2D Cheap Qr Code Fixed Barcode Scanner CMOS Reader Module
1D 2D cheap QR Code Fixed Barcode Scanner CMOS Reader Module


DE2120 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.
It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.
Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.
Product Parameters
Scan TypeCMOS
Light SourceRed Light LED 625±10nm(aim), 5600K LEDs( Lighting)
CPU32-bit
Resolution640*480
Reading precision≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed25CM/S
Depth of field25mm-400mm
Scan ModeManual ,Continuous, Auto Sense, command control
Scan angleTest Conditions:CODE39,10mil/0.25mm,PCS90%
 Pitch:±45°
 Roll: ±36
 Skew: ±4
Print Contrast Signal≥25%
Ambient LightDark environment, indoor natural light
Symbologies1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Strande 2 of 5, Codabar(NW-7),MSI Plessey,GS1 Databar(RSS),China Post,etc.
2D: QR Code, Data Matrix,PDF417,Micro PDF 417, Aztec, etc.

Weight<4g
Dimension(L)21.2mm* (W)16.0mm *(H)12.0mm
Communication ModeUSB(USB-KBW,USB-COM),TTL
Interface TypeFFC 12PIN Pitch 0.5
Power SupplyDC 3.3V @160mA(Work)

Operating temperature -20ºC to 50ºC
Storage  temperature -40ºC to 70ºC
Humidity5% to 95%(non-condensing)
Drop Height1.2m
Temp. Test30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.60ºC
Low Temp.-20ºC
Transport vibration Test10H@125RPM
Detailed Photos


1d 2D Cheap Qr Code Fixed Barcode Scanner CMOS Reader Module
1d 2D Cheap Qr Code Fixed Barcode Scanner CMOS Reader Module

Packaging & Shipping

1d 2D Cheap Qr Code Fixed Barcode Scanner CMOS Reader Module

Company Profile

1d 2D Cheap Qr Code Fixed Barcode Scanner CMOS Reader Module

Certifications



1d 2D Cheap Qr Code Fixed Barcode Scanner CMOS Reader Module
Exhibition

1d 2D Cheap Qr Code Fixed Barcode Scanner CMOS Reader Module
