QH - 6015FB Dual-platform Enclosed Laser Cutting Machine

Categories Sheet Metal Laser Cutting Machine
Brand Name: QIHAI
Model Number: QH - 6015FB
Certification: ISO, CE
Place of Origin: Foshan, Guangdong, China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100 set/month
Delivery Time: 50 days
Packaging Details: wood, plastic, container
Graphic format supported: DXF,AI,BMP,PLT,DWG
Cnc or not: Yes
Application: Laser Cutting,Suitable for metal sheets cutting,cheap laser metal cutting machine,metal cutting
Cutting thickness: Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode: Water Cooling
Warranty: 1 Year
After-sales service provided: Engineers available to service machinery overseas
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

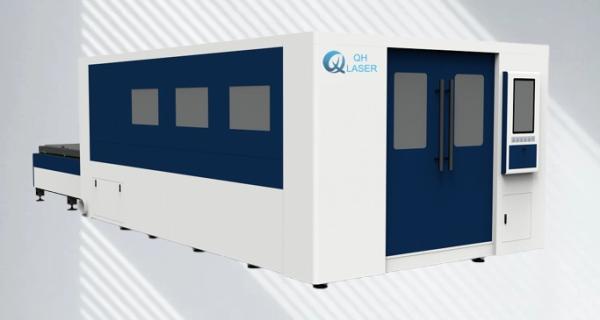

QH - 6015FB Dual-platform Enclosed Laser Cutting Machine

QH - 6015FB Dual-platform Enclosed type Laser Cutting Machine
Description
The QH-6015FB is a high-efficiency, safety-focused sheet metal processing solution defined by its dual-platform alternating design and fully enclosed structure—ideal for batch production in industries like heavy machinery, steel structures, and industrial equipment manufacturing.
Its signature dual-platform system (shared 6000×1500mm processing area, 1000kg maximum loading weight per platform) enables parallel workflow: one platform performs laser cutting at up to 100m/min (supported by 1.0G maximum linkage acceleration), while the other completes workpiece loading/unloading, eliminating downtime from material changeover. The fully enclosed structure acts as a critical safety and durability enhancement: it contains cutting-generated fumes, sparks, and noise (reducing noise levels by 15-20dB), protects operators from laser radiation, and prevents dust accumulation on internal components (extending the service life of the double rack & pinion servo transmission system by 20%-25%).
Quick details

Dual-Platform Core: Alternating workflow (cutting + loading) eliminates downtime; 6000×1500mm area, 1000kg max loading per platform, 100m/min speed boosts batch efficiency by 30%-35%.

Enclosed Advantage: Captures fumes/sparks, reduces noise by 15-20dB, protects operators/equipment; prevents dust damage to servo transmission.

Key Specs: 1500W-20KW laser power (0.5-30mm thickness), ±0.03mm X/Y accuracy (consistent quality across platforms), 380V/50Hz industrial compatibility.

Fit: Batch production (heavy machinery, steel structures); safety-sensitive workshops.


Technical Specifications
Processing Area6000 * 1500mm
Maximum Loading Weight1000kg
Machine Weight3500kg
Overall Dimensions8500×2280×2150mm
Laser Power Range1500W - 20KW
X/Y-axis Positioning Accuracy±0.03mm
X/Y-axis Repositioning Accuracy±0.03mm
Maximum Linkage Acceleration1.0G
Maximum Linkage Speed100m/min
Transmission SystemDouble rack & pinion transmission with servo drive
Voltage Requirement380V
Frequency50Hz


Advantage

Dual-Platforms Deliver Uninterrupted Batch Efficiency: Unlike single-platform machines that pause for 15-20 minutes per load/unload cycle, the QH-6015FB’s alternating platforms cut total batch processing time by 30%-35%. For example, processing 50pcs of 6m×1.5m steel plates (20mm thick) takes 2.5-3 hours vs. 4-4.5 hours with single-platform models—critical for meeting tight delivery schedules in high-volume production.

Enclosed Structure Enhances Safety & Equipment Longevity: The fully enclosed design complies with industrial safety standards (e.g., IEC 60825 for laser safety) by blocking direct laser exposure and containing hazardous fumes (via optional built-in extraction ports). It also shields internal components (like the double rack & pinion transmission) from workshop dust, reducing maintenance frequency by 20%-25% and lowering long-term operational costs.

Dual-Platform Consistency Backed by High Precision: The double rack & pinion servo transmission and ±0.03mm X/Y accuracy ensure uniform cutting quality across both platforms—no variance in cut depth or edge smoothness when switching between platforms. This is vital for batch production of large components (e.g., steel structure beams), where dimensional consistency directly impacts assembly fit.

Enclosed Design Optimizes Workshop Environment: By reducing cutting noise to below 80dB (vs. 95-100dB for open machines) and containing fumes, the enclosed structure improves workplace air quality and reduces operator fatigue. This makes the QH-6015FB suitable for workshops with strict environmental or occupational health requirements, eliminating the need for additional noise/fume control equipment.
