| Categories | Ball Screw |
|---|---|
| Brand Name: | TBI |
| Model Number: | SFNU05010-4 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | SFNU |
| Diameter: | 50mm |
| Lead(mm）: | 10mm |
| Accuracy Grade: | C3,C5,C7 |
| Overall Length of shaft(mm): | Max 4000mm |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Threading Direction: | right |
| Flange type: | double cutting |
| Proudct code: | F: rolled |
| Application: | delicate application in industrial application, machine tool and automation application |
| Installation: | Easy |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

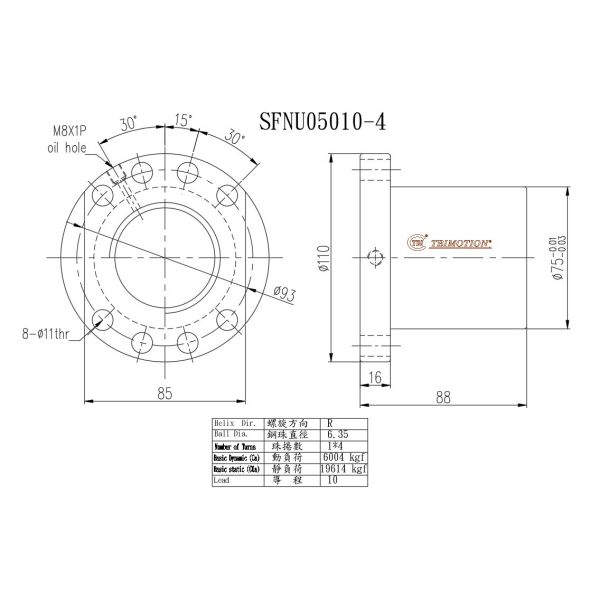

The TBI SFNU05010 50mm Ball Screw exemplifies precision engineering for demanding CNC router applications, showcasing TBI Motion's expertise in high-performance motion control solutions. This robust screw assembly delivers reliable vertical lifting capability and precise linear motion for woodworking, metal cutting, and composite material processing routers. Engineered to handle the dynamic loads and rapid directional changes characteristic of modern CNC routing operations, the SFNU05010 incorporates TBI's advanced ball recirculation technology to ensure smooth, consistent movement even during aggressive machining cycles. The precision-ground screw and nut combination provides the accuracy needed for intricate carving and detailed surface finishing while maintaining durability for high-volume production environments. TBI's specialized heat treatment processes enhance wear resistance, extending service life in continuous operation with minimal maintenance requirements. The screw's thermal-stable design minimizes positional drift during prolonged use, ensuring dimensional accuracy remains consistent throughout machining operations. Designed for integration with various router configurations, this ball screw demonstrates TBI's ability to deliver components that enhance machine performance while simplifying installation and operation. With its combination of high load capacity and smooth motion characteristics, the SFNU05010 supports the precision positioning requirements of advanced routing applications, from sign making to aerospace component fabrication. TBI's commitment to quality ensures this ball screw meets the rigorous demands of professional CNC equipment, providing reliable performance that manufacturers and machine builders can depend on for critical production applications.
⑥Actual product photo
|
