| Categories | RAID Controller Cards |
|---|---|

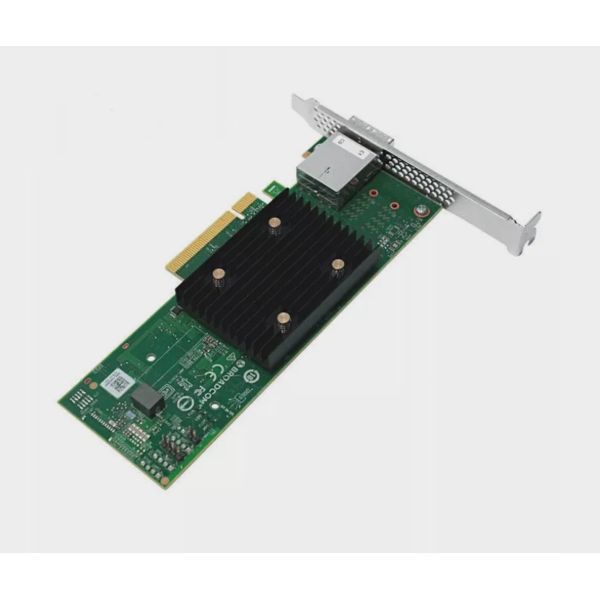

| Brand Name: | Broadcom |
| Model Number: | 9500-8E |
| Place of Origin: | Beijing, China |
| MOQ: | 1 pieces |
| Price: | $400 -800/ piece |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Packaging Details: | box |
| transmission rate: | 1000Mbps |
| interface type: | PCI |
| Host Bus Type: | PCI Express 4.0 x8 channel interface |
| I/O Processor/SAS Controller: | SAS3808 core processing chip |
| Key RAID Data Protection Features: | RAID levels supported: 0/1/5/6/10/50/60 |
| Data Transfer Rates: | 12Gb/sSAS,6Gb/sSATA |
| Physical Dimensions: | 155.6mm * 68.9mm |
| Warranty: | 3 years |
| Company Info. |
| Beijing HengzhengTC Sci-Tech Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Parameter | Description |
Product Model | 9500-8e |
Host Bus Type | x8-lane PCI Express 4.0 |
Physical Dimensions | 6.600 inches x 2.712 inches |
Supported Devices | SAS/SATA: 1024, NVMe: 32 |
External Connectors | 2 x4 SFF-8644 (External Drive) |
Operating Temperature | 0°C to 55°C |
Operating Voltage | +12V +/-8%, 3.3V +/-9% |
OS Support | Microsoft Windows, Linux, VMware |
I/O Controller | SAS3808 |
Operating Humidity | 20% to 80% non-condensing |
Bracket Types | Full-height and Low-profile |
Compliance Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES-003 Class B),
Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN / IEC/ UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR Part 15 Subpart B, Class B), WEEE |
Warranty | Three years, including free technical support, with advanced
replacement options available at [Broadcom's Support Website](support/warranty/internal-raid-hba) |
Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII
(UEFI Human Interface Infrastructure) |
|
