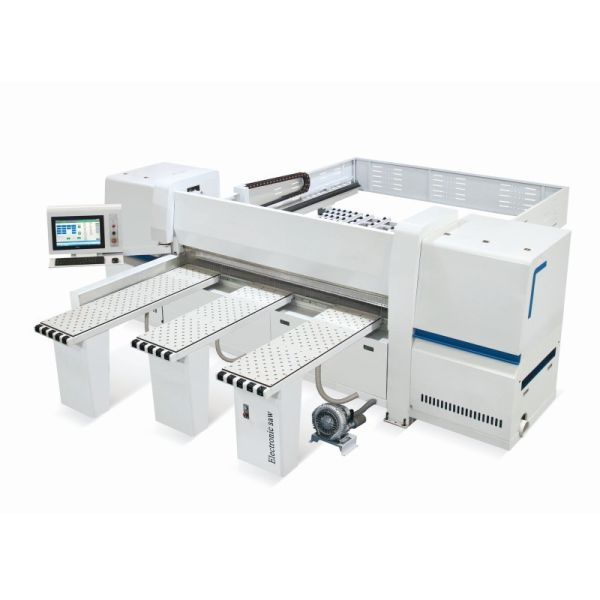

High Precision CNC Beam Saw 3300mm Automated Wood Panel Cutting Machine

Elevate your panel processing capabilities to new heights with the 3300L CNC Beam Saw. This state-of-the-art computer panel saw is engineered for manufacturers who demand uncompromising accuracy, robust durability, and seamless automation. Designed to handle a wide range of materials with exceptional precision, the 3300L transforms raw panels into precisely cut components with minimal operator intervention, maximizing your productivity and material yield.

Streamlined, Fully Automated Operation
The 3300L simplifies the cutting process from start to finish. The operator simply places the raw panel on the worktable or loading device. With the press of a button, the machine takes over: automatic clamping, positioning, edge alignment, sawing, and material discharge are all executed flawlessly based on pre-input data. This automated workflow not only boosts output but also drastically reduces labor costs and the potential for human error, ensuring consistent, high-quality results batch after batch.

Robust Construction for Long-Term Accuracy
At the heart of the 3300L is a main structure built for a lifetime of reliable service. The table is constructed from 18mm steel plates, bent and welded into rigid square tubes. The entire machine body is reinforced with square tubing and undergoes a critical zero-temperature annealing process. This advanced stress-relief treatment guarantees that the machine body will never deform, preserving its critical sawing accuracy for years to come, even under the most demanding production schedules.

Core Features and Technological Excellence

1. Precision Sawing System: Powered by a potent 16.5kW main and auxiliary saw motor, the 3300L cuts through materials up to 85mm thick with ease. The saw carriage is driven by a high-performance 2KW servo motor and features a magnetic sensor limit device, a significant upgrade over old-fashioned rod-type switches that are prone to jamming from dust.

2. High-Speed Servo Positioning: Equipped with INVT high-performance servo motors, the machine executes control commands with lightning speed and pinpoint accuracy, achieving a remarkable servo positioning accuracy of ±0.02mm. This ensures every cut is exactly where it needs to be, guaranteeing a final sawing accuracy of within ±0.2mm.

3. Intelligent Control System: The brain of the operation is a reliable Taiwan Yonghong PLC, ensuring stable and dependable control. The user-friendly 19-inch interface is simple to understand, offering guided operations, fault alarm diagnostics, and sawing plan simulation. It is fully compatible with a wide array of optimization and barcode management software.

4. Efficient Material Handling: The machine features a high-performance pneumatic feed clamp system with 11 manipulators, positioned by precision servo drives for a firm and accurate hold. The ball-type air flotation table effortlessly solves the problem of feeding heavy panels, reducing operator strain and streamlining the workflow.

5. Durable Linear Motion: To ensure smooth, precise, and quiet movement, the 3300L is fitted with Taiwan Yinchuang Technology steel-belt square linear guide rails. These guides are renowned for their high precision, durability, and long service life.

6. Automated Maintenance: An automatic oil filling system lubricates the lubrication tracks every 10 minutes upon startup, ensuring all moving parts operate smoothly and reducing long-term wear and tear.

Technical Specifications at a Glance

Premium Components for Guaranteed Reliability
We use only top-tier components to ensure the longevity and stability of the 3300L. Key accessories include:

• PLC: Taiwan Yonghong

• Servo Control & Frequency Converter: INVT

• Solenoid Valve & Pneumatic Components: EASUN

• Linear Guides: Taiwan Yinchuang Technology

Optional Optimization Software: The Smart Factory Solution
Upgrade your 3300L with our powerful optimization software to create a truly intelligent cutting cell. This optional system expands the machine's capabilities far beyond basic cutting:

• Seamless Integration: It is open to all major design and optimization software ports, including Yuan Fang, Hua Guang, 1010, Wei Lun, Hai Xun, and more. It also supports direct import from Microsoft Excel cut lists.

• Advanced Management: Features include automatic data layout optimization, order design and splitting, remnant management, and barcode printing, significantly improving raw material utilization.

• Remote Monitoring & Control: Enable remote operation status monitoring and wireless remote control start/stop for enhanced management flexibility.

• Simplified Operation: The system guides the worker step-by-step via the computer interface. By scanning a barcode, the cutting data is instantly loaded, enabling one-key operation. New operators can typically be trained and productive in just 2 hours.

Optional Side Leaning Device
For operations that frequently process small panels, the optional intelligent side leaning device offers unparalleled convenience, making side pushing quicker and more accurate than ever before.
