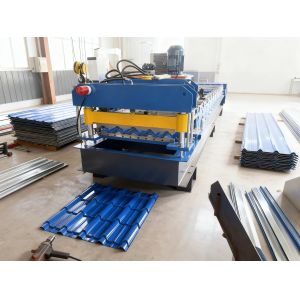

High Precision Roof Tile Roll Forming Machine with 0.3-0.8mm Material Thickness and 15-20m/min Forming Speed

This roof tile roll forming machine is engineered for manufacturers seeking reliable production of decorative and weatherproof metal roofing tiles for both residential and commercial projects. The line delivers stable performance, precise tile profiles, and consistent surface quality, making it ideal for metal roof panel suppliers and roofing contractors. With flexible configuration options, the roll forming system can be customized to match different tile designs, material thicknesses, and production requirements. It is a safe, efficient, and cost-effective solution for companies aiming to expand their metal roof tile product range and enhance competitiveness in the roofing market.

This metal roof tile profile is produced from pre-painted or galvanized steel sheets with a thickness range of 0.3mm to 0.6mm. Designed to replicate the classic appearance of traditional tiles, it features smooth wave-shaped contours and a refined architectural look. The lightweight yet durable structure offers excellent corrosion resistance, making it ideal for villas, residential houses, commercial buildings, and prefabricated projects across different climate conditions. Its stable quality and attractive finish make it a popular choice for manufacturers using roof tile roll forming machines to supply long-lasting roofing solutions.

Flow Chart:

Hydraulic Decoiler - Guide - Roll Former - Hydraulic Cutter - Out Table

Process:

The production flow begins with the steel coil being decoiled and smoothly guided into the forming section. Inside the chain-driven roll forming machine with a guide-pillar structure, the material is gradually shaped into a precise wave-style metal roof tile profile. A hydraulic cutting unit equipped with customized tooling completes the curved wave cut to enhance the realistic tile appearance. After cutting, the finished metal roof tiles are manually collected for stacking or packaging, ensuring clean handling and consistent panel quality throughout the line.

• Hydraulic cutter with custom wave mold delivers decorative aesthetics.
• Guide pillar structure enhances tile forming precision and line stability.
• Chain drive with cover ensures operator safety and reduces maintenance.
• Optimized for prepainted or galvanized steel from 0.3–0.6mm thickness.
• Ideal for high-appeal residential and prefabricated roof tile production.

For this square downspout profile, we offer customization in embossing pattern, pipe dimensions, material thickness range (0.3–0.8mm), drive system (chain or gearbox), and cutting method (stop-cut or flying cut). Logo embossing, punching unit, and dual-size production switching are also available upon request.
