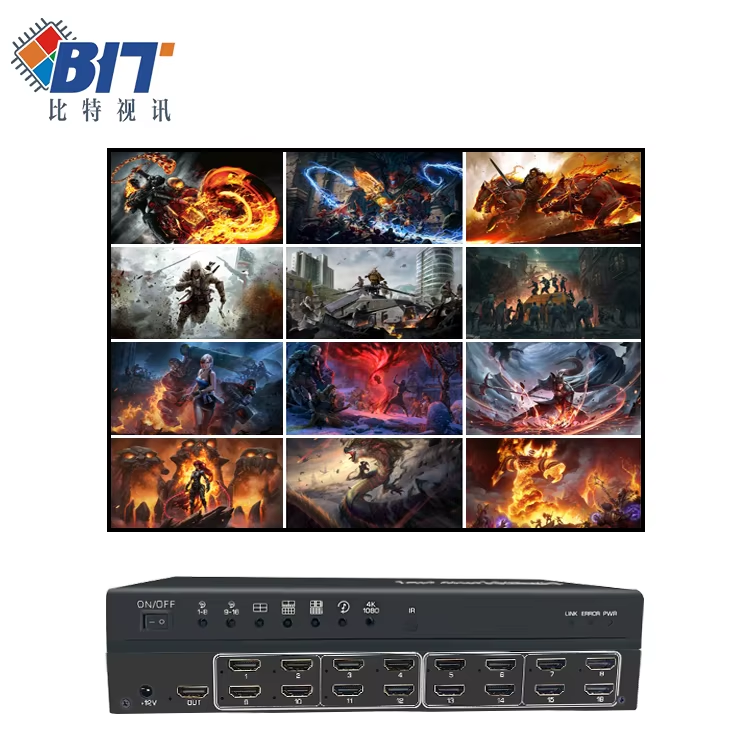

Name: 4K 16 Inputs 1 Output Video Wall Controller Multiviewer Professional Grade CCTV Monitoring Picture Synthesizer
Brand: Bitvisus
Price: 309 USD

Home >

4K 16 Inputs 1 Output Video Wall Controller Multi-viewer Professional Grade CCTV Monitoring Picture Synthesizer

Categories	Video Wall Controller
Brand Name:	Bitvisus
Model Number:	BIT-MV-4K-1601
Certification:	CE、FCC、GB
Place of Origin:	Guangdong China
MOQ:	1
Price:	309
Payment Terms:	T/T
Supply Ability:	1000
Delivery Time:	5-8 work days
Packaging Details:	2KG, 36cm21.5cm7cm
Product name:	BIT-MV-4K-1601
Product type:	4K60 16 multi-viewer
Feature:	Ultra-high definition sixteen-screen splitter
Function:	16 in 1 out, can be combined with a variety of split mode
Input:	16 HDMI
Output:	1 HDMI
Input resolution:	Up to 1080p, backward compatible with low resolution
Ouput resolution:	Up to 3840x1080@30Hz, can be customized
Color:	Balck
Warranty:	3 Years

Contact Now

Add to Cart

Company Info.

Shenzhen Bitvisus Technology Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

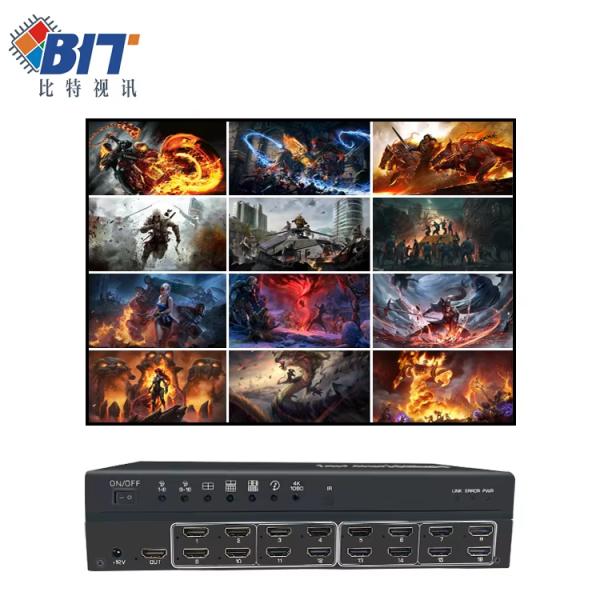

4K 16 Inputs 1 Output Video Wall Controller Multi-viewer Professional Grade CCTV Monitoring Picture Synthesizer

4K Seamless Switch Video Splitter 16 Inputs 1 Output Multi-viewer Professional Grade CCTV Monitoring Picture Synthesizer

Product Overview

4K 16 in 1 Out Multi-viewer

Ultra high-definition sixteen screen splitter with double-layer or single-layer board solution
Supports up to 16 HDMI signal inputs with maximum input resolution of 1920x1080@60Hz (backward compatible with lower resolutions)
Single channel HDMI/DVI signal output with automatic signal recognition (HDMI/DV)
Maximum output resolution of 3840x2160@30Hz with customizable options including 3840x1080@60Hz, 2560x1440@30/60Hz
16-channel HDMI audio input with selectable output from any channel
Supports multiple split modes with zero delay switching and automatic mode saving
Flexible control via buttons or infrared remote control

Welcome to contact us to consult about the products required by your project!

Product Specifications

Product Name	BIT-MV-4K-1601
Input Interface Type	16-way HDMI interface, resolution up to 1080p, backward compatible with low resolution
Audio	Support 16 HDMI audio inputs, 1 HDMI audio output (1 out of 16)
Output Interface	HDMI, support resolution up to 3840x1080@30Hz. Resolution can be customized
Split Mode	Fullscreen, quad-split, eight screens (2 large 6 small), 16 screens, grid 16 screens 4 large 12 small
Control Mode	Button, infrared remote control
Control Method	Remote Control, Pushbutton, RS232, Web
Power Supply	12V @ 2A AC-DC power supply
Power Consumption	12W
Board Size	Double-layer solution: 250mm × 115mm × 45mm
After-sales Warranty	3 years warranty

Features at a Glance

Company Profile

FAQ

Why Choose Bitvisus?

We maintain our own warehouse to ensure shipping within 48 hours after payment (excluding weekends and holidays)
OEM/ODM services available for custom requirements
Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems

Shipment & Payment

Payment Methods: T/T, Visa, PayPal, Western Union, L/C
Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight

How to Order?

Contact us via email or chat (TM, WhatsApp, Skype) with your order requirements
We will provide a proforma invoice based on your specifications
After payment confirmation, we will process and ship your order promptly
