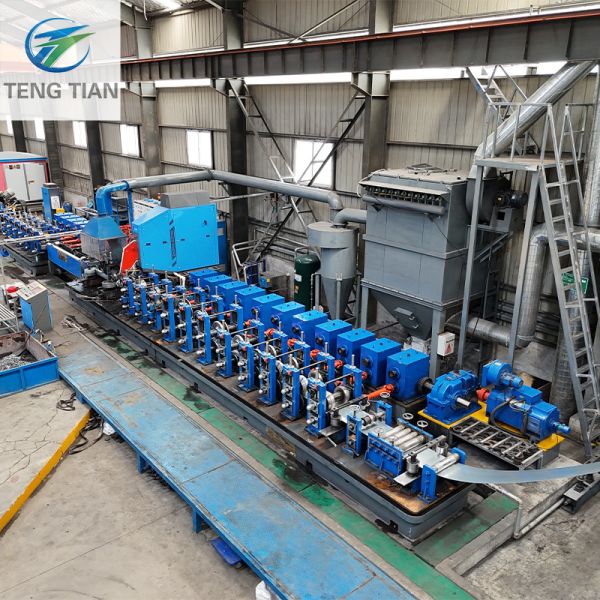

8-32mm 150m/min Carbon Steel High Frequency ERW Tube Mill

8-32mm 150m/min Carbon Steel High Frequency ERW Tube Mill

Product Specifications

Attribute	Value
Product name	High Frequency Welded Pipe Mill Professional Automatic ERW Tube Mill, Carbon Steel Welded Pipe Mill
Production speed	Max 150m/min
Pipe diameter	8-32mm
Pipe thickness	0.4-2.0mm
Product type	ERW tube mill

HG32 High Precision Automatic ERW Pipe Mill With High Frequency Welder

Production Process

material(steel coil) → uncoiler → shear and welder → horizontal(or cage) accumulator → forming mill → HF solid welder → sizing mill → roughly straightening(turkey head) → cut off machine → run out table

Technical Parameters

Stands of forming mill	8
Stands of sizing mill	6
Shaft material	40Cr
Power of HF solid welder	100kw
Round pipe diameter	8-32mm
Round pipe thickness	0.4-2.0mm
Square pipe size	10×10-25×25mm
Square pipe thickness	0.4-1.0mm

This ERW pipe mill with high frequency solid welder can produce round pipes, square pipes, and rectangular pipes at high speed. It can also produce L, T, and Z shaped pipes, reducing roller costs while ensuring the quality of finished pipes.

We can customize the machine according to specific customer requirements.

Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.

Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm

Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.

Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system

Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.

Hebei tengtian welding pipe equipment manufacturing co., ltd. is a leading domestic professional

manufacturer of welding pipe forming machinery and related products. With more than ten years

of ERW pipe production experience, the factory covers an area of 50,000 square meters, advanced

equipment, the introduction of advanced modern management system, to ensure the quality of products.
After long-term practice, we have a deeper understanding of users' needs.
With the growth of the enterprise, we can provide all range of welded pipe forming machinery from

single machine to complete the pipe mill production line, we also provide "turnkey engineering"

system solutions for our customers from all over the world, including upgrading the old system,

after-sales service completion, test run and worker training services.
The company adheres to the principle of "quality first, customer first", the products are exported

to South America, southeast Asia, Africa, Europe, Australia, Russia, South Korea and other countries

and regions.
Welcome to our factory, we will provide the most suitable technical solution and the most reasonable

price for our customers.The company has obtained ISO 9001 certification, CE certification and

international BV certification.
