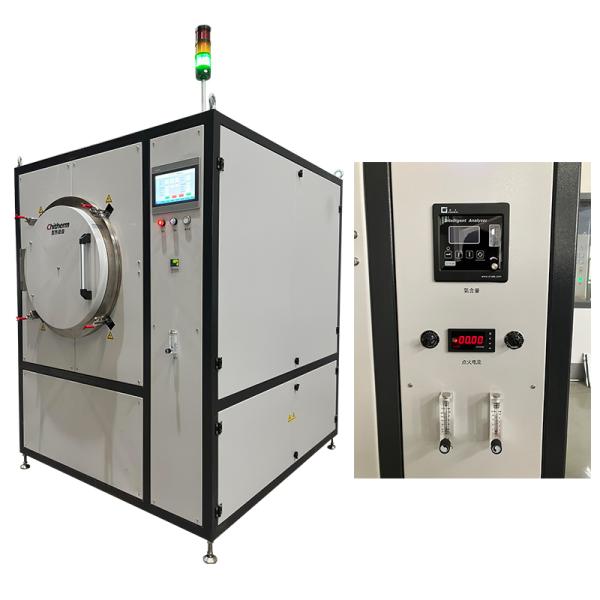

Customizable Atmosphere Sintering Furnace Electric Muffle Furnace For Ceramic Sintering In Nitrogen-Hydrogen Atmosphere

This furnace is suitable for medium-temperature heat treatment of electronic products, including nitrogen/hydrogen atmosphere heat treatment for electronic ceramics, media, and conductors.

• Model Number: HWF100-10NH
• Tank dimensions: 630 × 900 (d × D)
• Effective furnace chamber dimensions: 400 × 400 × 650 mm (W × H × D)
• Maximum operating temperature: 1000°C
• Long-term working temperature: 900°C
• Heating method: FEC ceramic fiber heater
• Refractory thermal insulation, alumina products
• Cooling method: in-furnace cooling
• Temperature control points: Three independent points (front, middle, rear)
• Temperature control instrument: Japanese YAMATA intelligent temperature controller
• Program segments: 9
• Operating power supply: 380±10%V, 3-phase 5-wire, 50Hz
• Maximum power: 30kW
• Thermal insulation power: ≤15kW

• Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
• N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h
• H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 0.2-0.6m3/h
• Water Conditions: clean, no corrosive water, working pressure 0.1-0.3MPa, 1-3L/min
• Ventilation System: non-contact access to user pumping system, capacity > 10m3/h
• Ground Requirements: horizontal, no vibration, load-bearing > 500 kg/m²
• Power Condition: capacity > 40kVA, 3-phase 5-line, 220/380V, 50Hz
• Installation Site: 3200×2500×3000mm(D×W×H), area > 8m²
