| Categories | Gas Flow Meter |
|---|---|
| Brand Name: | YUNYI |
| Model Number: | VA500 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 Piece |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000pcs per month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Type: | Variable Area Air & Gas Flowmeters |
| Measure Range: | m3/h, l/min , Nm3/h, Nl/min |
| Accuracy: | 1 % Accuracy of m.v. ± 0,3 % of f.s. |
| Power Supply: | 18...36 VDC, 5 W |
| Temperature: | -30...110 °C probe tube, -30...80 °C housing |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Description of Compressed air gas CS flowmeter VA500 Thermal mass flow meter
VA500 Thermal mass flow sensor for compressed air and gases Recording and reducing energy costs and CO2 emissions while increasing the sustainability of any compressed air system. With our VA500 it is possible to monitor your consumption and analyze your leakage flows with just one measuring device. Due to its design, it is also ideal for mobile measurements.

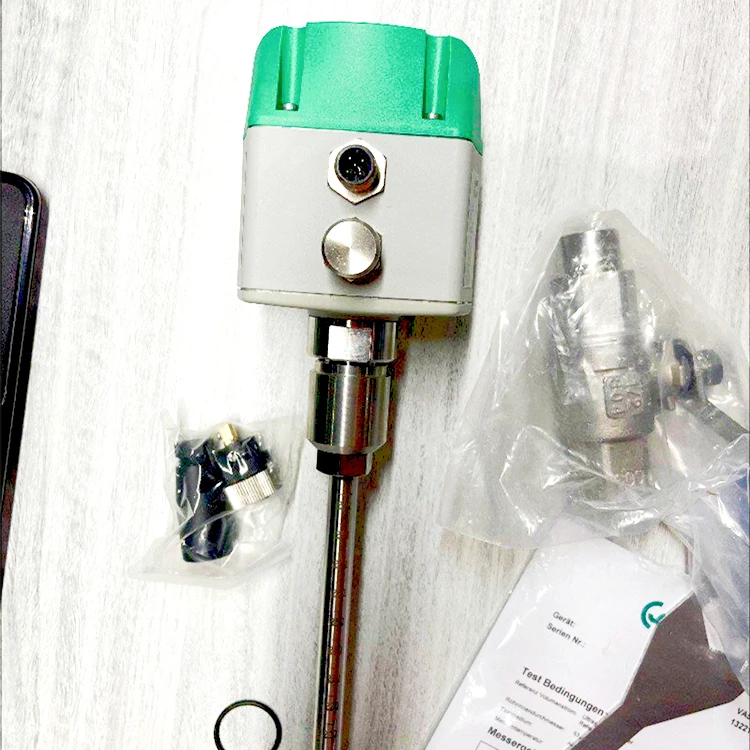

Detailed Images Compressed air gas CS flowmeter VA500 Thermal mass flow meter
 |  |
|  |

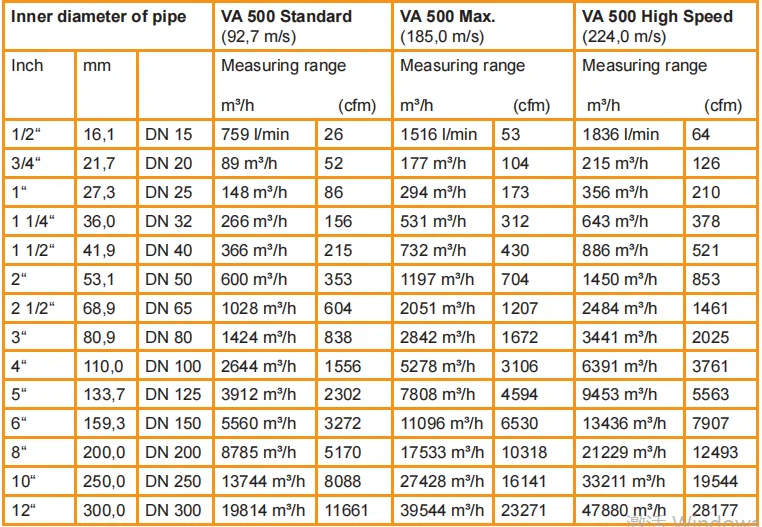

Specification Compressed air gas CS flowmeter VA500 Thermal mass flow meter
Features Compressed air gas CS flowmeter VA500 Thermal mass flow meter
-RS 485 interface, Modbus-RTU standard
-Comprehensive display for m³/h and m³
-Range from 1/2" to 12" (DN 300)
-Easy to install under pressure
-4...20 Ma analog output for m³/h resp. m³/min
-Pulse output for m³
-Inner diameter can be adjusted by keyboard
- consumption counter reset
- Adjustable via buttons on the display: standard conditions, °C and mbar, 4...20 mA scaling, pulse gravity

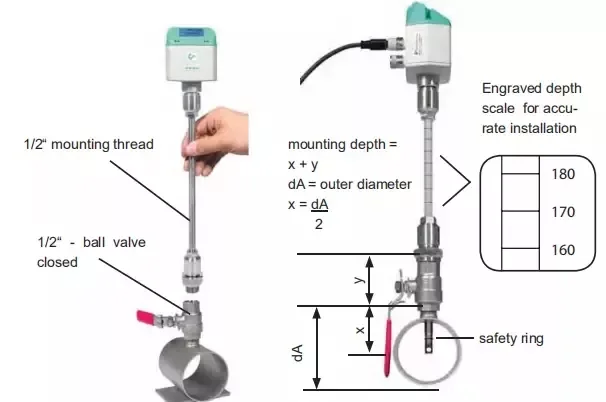

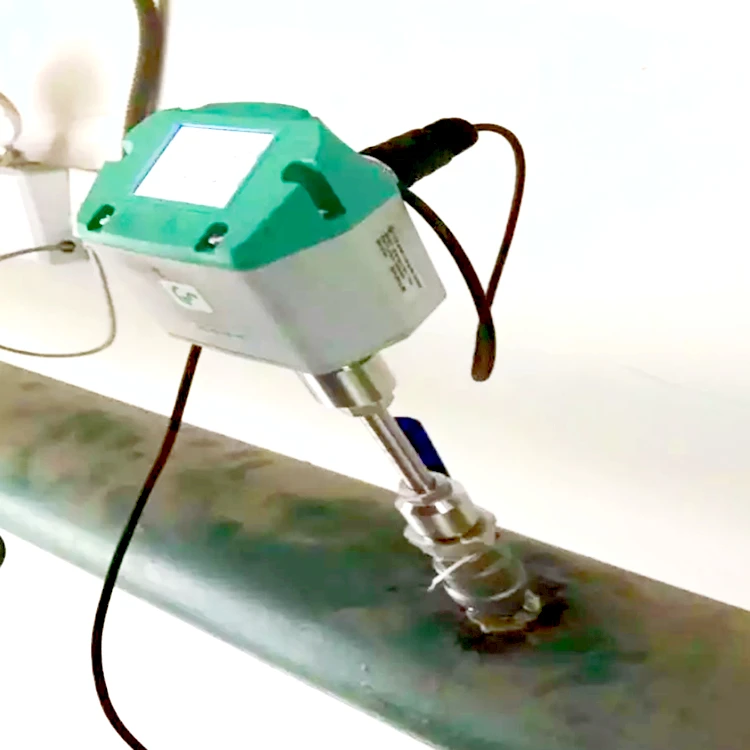

Installation Compressed air gas CS flowmeter VA500 Thermal mass flow meter
|
