CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing
CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing
Categories Stone Profile Cutting Machine
Brand Name: Xianda Machinery
Model Number: BLMM-1800MAX-A/B
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin: Jinjiang, Fujian, China
MOQ: 1
Price: To Be Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Sets/Year
Delivery Time: 15 Days
Packaging Details: Wire rope lashing,Suitable for sea/land/rail/air transportation.
Model: BLMM-1800MAX-A/B
Blade Diameter Range: 400-700mm
Cutting Surface: Flat/Arc
Condition: New
Warranty: 1 Year
Max Cutting Length: 3000mm
Voltage: 220V/380V/Customized
Transport Package: Load in a 20 Feet Container
Contact Now
Company Info.
Fujian Xianda Machinery co.,ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CNC Stone Cutting Machine with Precision Cutting Head Heavy-Duty Structure and High Speed Cutting for Large-Scale Stone Processing

Dual Beam Bridge Type Linear Cutting and Milling Machine

Product Overview

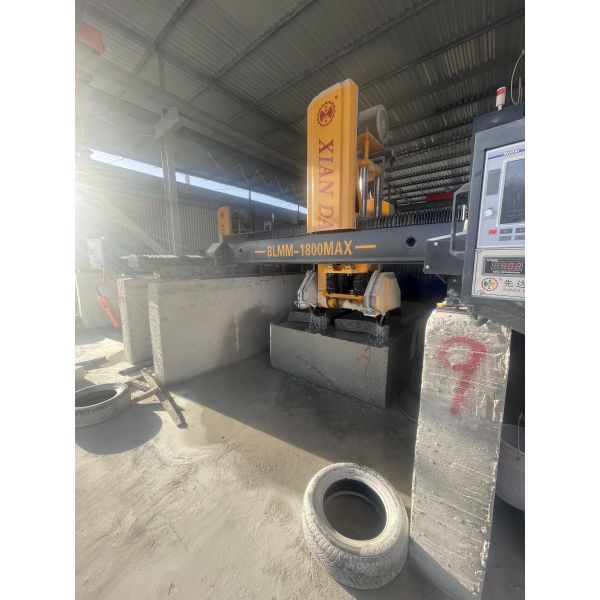

Introducing the BLMM-1800MAX-A/B, a state-of-the-art dual beam bridge type linear cutting and milling machine designed for precision stone processing. This advanced CNC system features a robust bridge double beam heavy structure that combines the accuracy of linear guide rails with the power of profiling machines, making it ideal for large-scale special-shaped stone processing applications.
Product Specifications
AttributeValue
KeywordStone Cutting Machine, Heavy-Duty Bridge Double Beam Structure
Cutting AbilityHigh Speed
Voltage380V
Control systemCNC
UsageRoughcutting, Fine Cutting, Fine Miling and Other Functions
ApplicationProcessing of Large-sized Special-shaped Stone Materials
WarrantyOne Year
After-sales service providedOnline support, Video technical support, Field maintenance and repair service, Field installation

Technical Specifications

ParameterUnitBLMM-1800BLMM-1800MAX-ABLMM-1800MAX-BBLMM-1800MAX-2D-ABLMM-1800MAX-2D-B
Blade diametermm350-600400-700400-700400-700400-700
Max lifting travel of cutting framemm450600600600600
Worktable Sizemm1800*35001800*35001800*35001800*3500*21800*3500*2
Max processing lengthmm35003500350035003500
Main motorkw15/18.5(Optional)18.5/22(Optional)18.5/22(Optional)18.5*2/22*2(Optional)18.5*2/22*2(Optional)
Gross motorkw21/24.5(Optional)24/27.5(Optional)24/27.5(Optional)46/5346.5/53.5
Outline dimensionmm5300*3950*25506500*4350*36006200*4100*36006500*6450*36006200*6200*3600
Water Consumptionm³/h6661212

Equipment Features

Advanced CNC Control System

  • Three-Axis CNC System Control: Precision control of X, Y, and Z axes for complex cutting operations
  • Intelligent Programming: User-friendly interface with multiple cutting functions
  • Automated Operation: Reduces manual intervention and increases productivity
  • Real-Time Monitoring: Continuous system status feedback and error detection
  • Program Storage: Multiple program storage for different stone processing requirements

Robust Bridge Double Beam Heavy Structure

  • Dual Beam Design: Enhanced stability and rigidity for heavy-duty operations
  • Bridge Type Configuration: Optimal weight distribution and vibration dampening
  • Thermal Stability: Minimal thermal deformation during extended operations
  • Long Service Life: Durable construction ensures years of reliable performance

Precision Cutting Head Lifting Structure

  • Four Guide Column + Sleeve Copper Design: Superior stability and precision
  • Smooth Lifting Motion: Minimized vibration during vertical movement
  • High Precision Positioning: ±0.1mm positioning accuracy
  • Extended Stroke Range: Maximum vertical travel for deep cutting applications
  • Wear-Resistant Components: Copper sleeves ensure long-term precision


Frequently Asked Questions

Q: What makes this machine different from standard bridge saws?

A: The BLMM-1800MAX combines cutting and milling functions in one machine, features a dual-beam structure for enhanced stability, and offers three-axis CNC control for complex shape processing that traditional bridge saws cannot achieve.

Q: What training is required for operators?

A: We provide comprehensive training including CNC programming, machine operation, maintenance procedures, and safety protocols. Most operators become proficient within 1-2 weeks.

Q: Can this machine process all types of stone?

A: Yes, the BLMM-1800MAX is designed to handle granite, marble, quartz, microcrystalline stone, limestone, sandstone, and artificial stone materials.

Contact Information

Ready to transform your stone processing operations?
