Fully Automated Horizontal Ring Rolling Machine with Water Cooling and Emergency Stop Button for Large Seamless Ring Components

Categories	Horizontal Ring Rolling Machine
Brand Name:	Duolek
Model Number:	D53KF
Place of Origin:	China
MOQ:	1 Set
Price:	25000 - 493000 USD Per Set
Payment Terms:	L/C,T/T
Delivery Time:	45-75 Working Days
Packaging Details:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Model:	D53KT - 7000
Nominal outer diameter of grinding ring:	7000 mm
Range of outer diameter of rolling ring:	1000 - 8000
Equipment Size:	26050 X 7550 X 7250 mm
Cooling System:	Water Cooling
security features:	Emergency Stop Button, Safety Protection Device, Overload Protection

Contact Now

Add to Cart

Company Info.

Shandong Dorco Heavy Machinery Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Fully Automated Horizontal Ring Rolling Machine with Water Cooling and Emergency Stop Button for Large Seamless Ring Components

Large Seamless Ring Components Horizontal Ring Rolling Machine Fully Automated Wide Processing Range

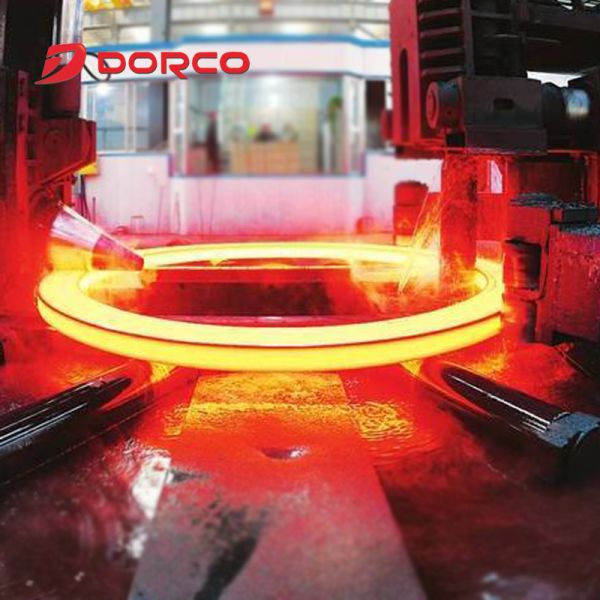

The D53KF series ring rolling machine, with automation and high precision as its core, combines CNC technology and bi-directional rolling function to improve the quality and production efficiency of ring parts. It is a reliable equipment for large-scale seamless ring processing.

Technical Specifications

DRC-D53KF Series (350-3500mm)

Model	350	450	600	800	1200	1600	2000	2500	3500
Nominal outer diameter (mm)	350	450	600	800	1200	1600	2000	2500	3500
Rolling diameter range (mm)	160-350	180-450	200-600	300-800	300-1200	400-1600	400-2000	500-2500	700-3500
Rolling height (mm)	50-150	50-200	50-250	60-250	60-300	60-350	60-400	50-500	80-600
Radial rolling force (KN)	350	450	630	1000	1250	1600	2000	2500	3000
Axial rolling force (KN)	200	350	500	800	1000	1250	1600	2000	2500
Linear rolling speed (m/s)	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
Radial motor power (Kw)	90	110	132	160	250	280	355	2*280	2*315
Axial motor power (Kw)	55	55	90	2*75	2*110	2*160	2*220	2*280	2*315
Dimensions (mm)	6750×2000×3400	6950×2150×3450	7050×2050×3500	8550×2250×3500	9050×2450×3550	11050×2550×3650	13050×3050×3850	14050×3550×4380	17050×3850×4550

DRC-D53KF Series (4000-12000mm)

Model	4000	5000	6000	6300	7000	8000	9000	10000	12000
Nominal outer diameter (mm)	4000	5000	6000	6300	7000	8000	9000	10000	12000
Rolling diameter range (mm)	800-4000	800-5000	800-6000	1000-6300	1000-8000	1100-8000	1100-9000	1200-10000	1500-12000
Rolling height (mm)	80-700	80-800	80-800	100-1000	100-1200	100-1600	110-1600	120-1650	130-2000
Radial rolling force (KN)	3000	3600	4000	5000	6300	8000	8000	10000	12500
Axial rolling force (KN)	2500	3000	3150	4000	5000	6300	6300	8000	10000
Linear rolling speed (m/s)	1.3	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4
Radial motor power (Kw)	2*350	2*450	2*550	2*630	2*730	2*800	2*900	2*1000	2*1250
Axial motor power (Kw)	2*350	2*450	2*550	2*630	2*730	2*800	2*900	2*1000	2*1250
Dimensions (mm)	18050×4250×4650	20050×5350×4750	21050×6550×5550	24050×6850×6550	26050×7550×7250	30050×8550×8050	36050×9050×8050	40050×9550×10050	48050×12050×11050

Key Features

Fully automatic operation: Industrial computer controls the rolling cycle, with a high degree of automation, ensuring production stability.
Precision technology: automatic generation of rolling curves, electronic handwheel control, reducing operational difficulty and experience dependence.
Energy saving and environmental protection: Material saving and energy-saving technologies reduce waste and assist enterprises in low-cost green production.
Double directional rolling reinforcement: synchronously rolling dense metal structures radially and axially to improve mechanical properties and dimensional accuracy.
Wide adaptability: Large processing range, high material utilization rate, and support for non-standard customization.
User friendly: Dual screen display and open console, real-time monitoring of equipment status and process data.
Supporting integration: It can be paired with equipment such as bulging machines and loading and unloading machines to form an automated production line.

Application Scope

Used in industries such as aerospace, petrochemicals, wind power, ships, nuclear power, etc., to produce various high-precision annular forgings.
