Features:

K23JSD-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three_-way solenoid valves with

the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's

actions.when one of the valve goes wrong as the "OUT"side"s"air pressure is higher than clutch "s"and break-

ar"s”,the press machine will stop runing,It makes the press machine more safe then those that only have one single

solenoid valve.

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Globe Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Method: Pipe Connection

⑦ Nominal Diameter: 15SC2, 20G1/4, 25G1, 32G1-1/4, 40 G1-1/2

⑧ Product Model: HSV Series

⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:

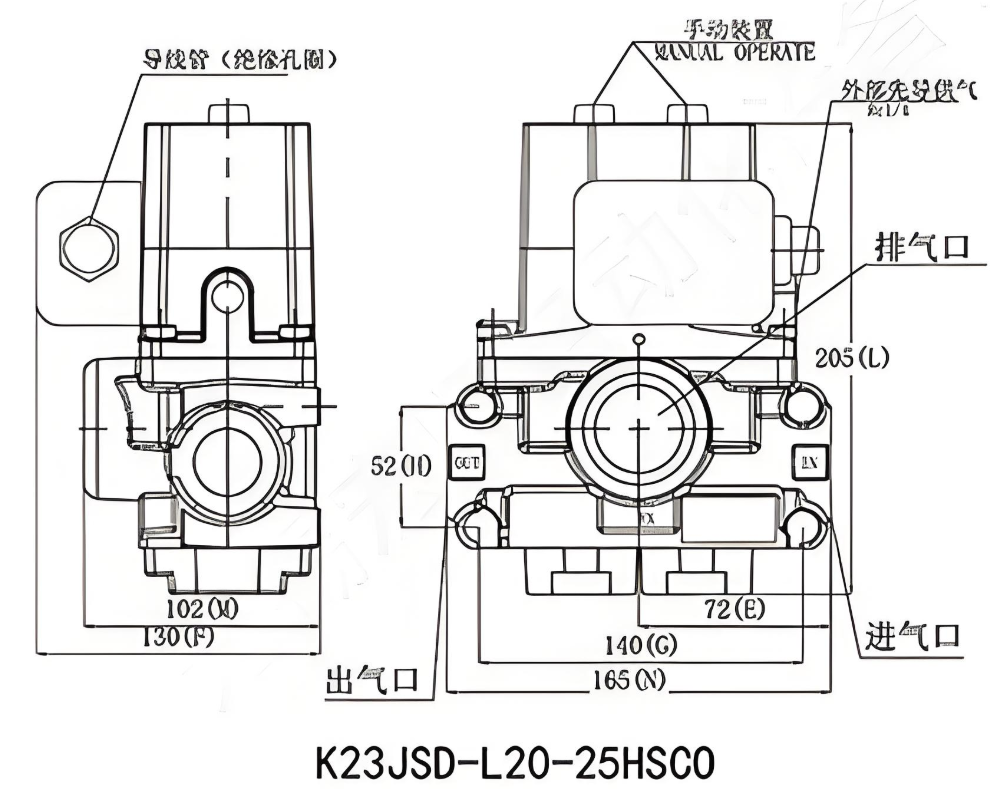

Outlook Dimension:

Specification:

AC voltage:

Valve Type	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO	K23JSD-HSCO
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption (W)	8	7	9	8	7	9

DC voltage:
