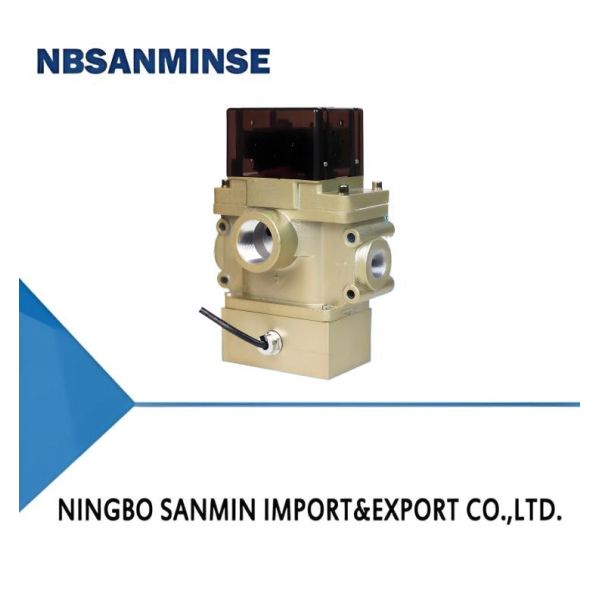

K23JSD-L Series double valves for press machine

Contact Now

Add to Cart

Company Info.

Ningbo Sanmin Import And Export Co.,Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Features:

K23JSD_-L15HSCOis the parallel flow duoble safe valveThis product integratestwo three_-way solenoid valves with

the same function to operate simultaneously, greatly improving the accuracy and safety ofthe stamping machine's

aSafety double valves is an exclusive pneumatic element controlling the actions of the brake and cluth of a press

.when the controlling air pressure below the valveitself goes wrong,it makes presssure of the brake and clutch,then

sopping the press quickly to ensure safety ofthe equipment and personal.

Order Code:

① Medium: Air

② Circuit Form: 2/3 Way

③ Valve Body Form: Poppet Type

④ Dual Valve

⑤ Control Form: Electric Control

⑥ Connection Type: Pipe Connection

⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2

⑧ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V

Symbols:

Outlook Dimension:

Specification:

Parameters	Type	K23JSD-L15	K23JSD-L20	K23JSD-L25	K23JSD-L32	K23JSD-L40
dia		15	20	25	30	40
port size	P	G1/2	G3/4	G1	G1-1/4	G1-1/2
	A	G1/2	G3/4	G1	G1-1/4	G1-1/2
	0	G3/4	G1-1/4	G1-1/4	G2	G2
Range of working pressure(Hpa)		0.3-0.8
Working temperatureC)		-5~50
Direction changing Time(sec)		≤0.05	≤0.07	≤0.07	≤0.10	≤0.10
Effective sectional area Cv(mm²)	P-A	>30	>90	>90	>140	>140
Effective sectional area Cv(mm²)	A-0	≥120	≥360	≥360	≥560	>560

AC voltage:

Valve Type	K23JSD-L	K23JSD-L	K23JSD-L	K23JSD-L	K23JSD-L	K23JSD-L
Rated Voltage	AC100V 50HZ	AC100V 60HZ	AC110V 60HZ	AC200V 50HZ	AC200V 60HZ	AC220V 60HZ
Starting Current	0.29	0.25	0.27	0.14	0.12	0.13
Holding Current	0.15	0.12	0.15	0.08	0.06	0.07
Power Consumption (W)	8	7	9	8	7	9

DC voltage:

:voltage

DC voltage
