Smart Energy Meter Test System with Programmable Harmonics & High Accuracy

Categories Stationary Meter Test System
Brand Name: GENY
Model Number: YC1893D/YC1891D
Certification: ISO, CE
Place of Origin: CHINA
Payment Terms: L/C,T/T,D/P
Supply Ability: 100/Year
MOQ: 1 pcs
Price: Negotiation
Delivery Time: 30 days after order confirmed
Packaging Details: Plywood case
Test Voltage (Phase-Neutral): 3 × (24 V - 500 V) or customized
Test Current:: 3 × (1 mA - 120 A)
Setting accuracy: Better than 0.05% at the final range value
Stability: Better than 0.005%/h(integrantion time 150s)
Distortion Factor: Better than 0.3% for linear resistance load
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

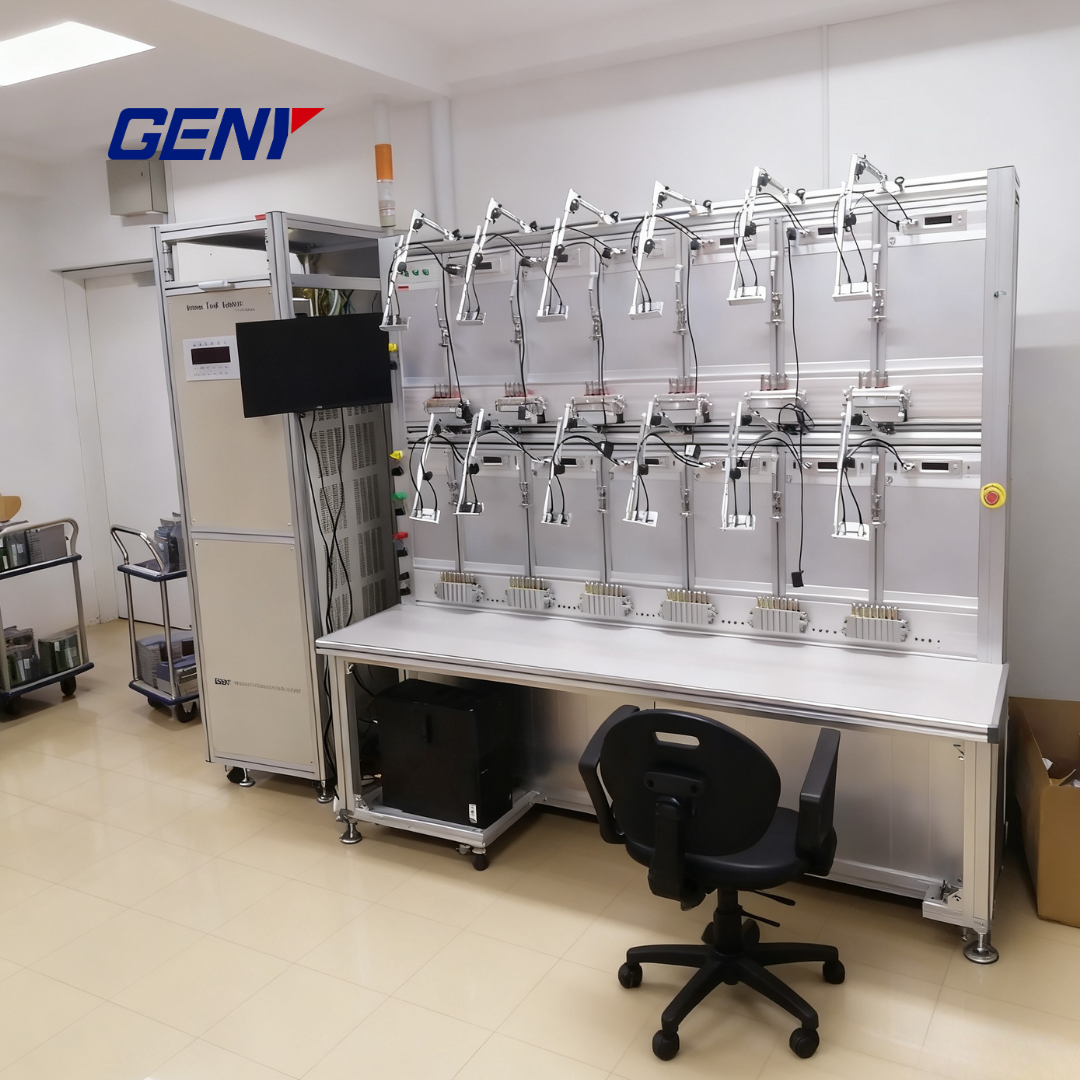

Smart Energy Meter Test System with Programmable Harmonics & High Accuracy

Smart Energy Meter Test System with Programmable Harmonics & High Accuracy


Guangzhou GENY Electric Co., Ltd Meter Test System is a high-precision solution designed for testing, calibration, and verification of single-phase and three-phase energy meters. Built with advanced control and measurement technology, it ensures exceptional accuracy, stability, and reliability under a wide range of environmental and electrical conditions. Perfect for laboratories, power utilities, and meter manufacturers.


Specifications


Power Source

Voltage Output

  • Test Voltage (Phase–Neutral): 3 × (24 V – 500 V) or customized

  • Output Power: 3 × 100 VA

  • Resolution: < 0.01% of full-scale range

  • Setting Accuracy: < 0.05% at final range value

  • Stability: < 0.005%/h (integration time 150 s)

  • Load Regulation (0–max): < 0.01%

  • Distortion Factor: < 0.3% (linear resistive load)

  • Harmonics: Programmable 2nd to 21st order

Current Output

  • Test Current: 3 × (1 mA – 120 A)

  • Output Power: 3 × 150 VA

  • Resolution: < 0.01% of full-scale range

  • Setting Accuracy: < 0.05% at final range value

  • Stability: < 0.005%/h (integration time 150 s)

  • Load Regulation (0–max): < 0.01%

  • Distortion Factor: < 0.3% (linear resistive load)

  • Harmonics: Programmable 2nd to 21st order

Phase Angle

  • Range: 0° – 360°

  • Resolution: 0.01°

  • Accuracy: ±0.1°

Frequency

  • Range: 45 Hz – 65 Hz

  • Resolution: 0.01 Hz


Key Features & Benefits


  • High-precision measurement with accuracy up to ±0.01%

  • Programmable harmonics for flexible testing (2nd–21st order)

  • Stable operation under wide temperature and humidity ranges

  • User-customizable voltage and current output ranges

  • Built-in surge protection and advanced grounding system

  • Ideal for energy meter calibration, power testing, and R&D applications
