3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight
3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight
Categories Vibration Testing Machine
Brand Name: ASLI
Place of Origin: Guangdong, China
Model Number: ES-6
MOQ: 1
Price: $23,500
Vibration force: 6000N
Vibration direction: 3 Axis
Acceleration: 100g
Frequency range: 3~3500Hz
Moving coil weight: 6.5kg
Rated speed: 1.8m/s
Rated sine force: 6000N
Rated random force: 6000N
Rated acceleration: 1000m/s²
Rated displacement: 25mm
Max loading: 180kg
Moving coil dimension: Φ230mm
Power type: Electronic
Control system: Advanced
Data acquisition: Integrated
Contact Now
Company Info.
ASLi (China) Test Equipment Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

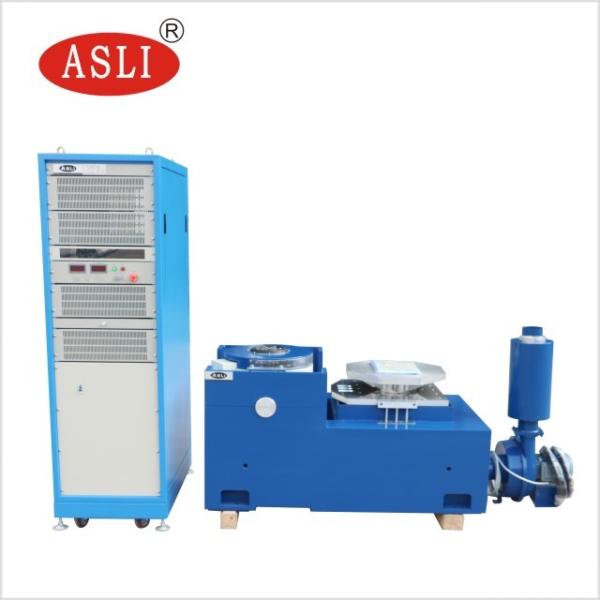

3 Axis Vibration Direction Electrodynamic Shaker with 100g Acceleration and 6.5kg Moving Coil Weight

Product Description
Test Standard: ISO,UL,GB,EN,DIN,JIS,CNS,CE,IEC,BS,etc

Electrodynamic shaker, high frequency vibration table, vibration testing, product durability testing, precision vibration control,high-frequency vibrations, robust electrodynamic system, advanced control panel, wide amplitude range, wide acceleration range,versatile testing applications, durable construction, user-friendly interface, safety mechanisms, data acquisition, test analysis,compliance with standards, automotive testing, aerospace testing, electronics testing, consumer goods testing

Features:
1. High Frequency Range: Capable of generating high-frequency vibrations for a wide variety of testing applications, ensuring thorough examination of product durability and performance.

2. Powerful Electrodynamic Shaker: Utilizes a robust electrodynamic shaker system to deliver precise and controlled vibration forces.

3. Advanced Control System: Equipped with a sophisticated control panel for easy programming, monitoring, and adjustment of vibration parameters.

4. Wide Amplitude and Acceleration Range: Offers a broad range of amplitude and acceleration settings to accommodate differentt esting requirements.

5. Versatile Applications: Suitable for testing components in industries such as automotive, aerospace, electronics, and
consumer goods.

6. Durable Construction: Built with high-quality materials to withstand rigorous testing conditions and ensure long-term
reliability.

7. User-Friendly Interface: Features an intuitive touchscreen interface for straightforward operation and test configuration.

8. Safety Mechanisms: Includes multiple safety features such as over-travel protection, emergency stop buttons, and alarms to ensure safe testing environments.

9. Data Acquisition and Analysis: Integrated data logging and analysis capabilities for detailed reporting and evaluation of test results.

10. Compliance with Standards: Meets various international testing standards, ensuring accurate and reliable test outcomes.
Specification
Model
Rated Sine Force (N)
Rated Random Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed(m/s)
Rated displacement (p-p)mm
Max. Loading (Kg)
moving coil (Kg)
Dimension of Moving coil (mm)
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450
ES-60
60000
60000
3-2700
1000
1.8
51
750
60
Φ450
ES-100
100000
100000
3-2500
1000
1.8
51
1000
90
Φ450
Features:
1. The base of the machine is made of high-quality materials, easy to install and run smoothly.
2. There are many functions such as frequency modulation, frequency sweeping, programmable amplitude modulation, time control,etc.
3. Strong anti-magnetic and anti-interference ability; safe and reliable protection.
4. Computer connecting line control, immediately store materials.
5. Low resistance and high performance design, high efficiency, low cost.
6. High reliability, low fault. 6 Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement and Testing Center and South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.
FAQ
Q1 :Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.

Q2 :Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.

Q3 :What is your product warranty ?
A:1 Year warranty, but lifetime for services.

Q4 How about the products quality?
A: Our products apply to ISO, ASTM, GB, MIL-STD etc.

If you need more information about High Frequency Mechanical Vibration Shaker Table Solar Vibration Test Chamber Factory Price , please don't hesitate to send your inquiry.
