High Precision Portable MOA Tester Zinc Oxide Arrester Electrified Tester

High Precision Portable MOA Tester Zinc Oxide Arrester Electrified Tester

High Precision Portable MOA Tester Zinc Oxide Arrester Electrified Tester
High Precision Portable MOA Tester Zinc Oxide Arrester Electrified Tester
Categories MOA Tester
MOQ: 1 Set
Price: US $945-1,435 / Set
Place of Origin: China
Brand Name: Sansion
Certification: CE/CNAS/ISO9001
Packaging Details: Plywood Case
Payment Terms: L/C T/T
Supply Ability: 100 Units/Month
Model NO.: SXYHX
Max Diameter of Workpiece: <500mm
Mass Scope of Workpiece: <900kg
Type: Oxide Arrester (on-Line) Tester
Maxcapacity: <1000KN
Accuracy Grade: 0.5
Load Way: Electronic Load
Loading Method: Dynamic Load
Display: Digital
Control: Manual Control
Weight: 0-100Kg
Power Source: AC220V
Oil Cylinder Position: Without
Application 1: Condition Monitorin
Application 2: Insulation Diagnosi
Application 3: Aging Assessment
Application 4: Preventive Maintenance
Application 5: Field Testing
Application 6: Substation Equipment
Transport Package: Plywood Case
Specification: ISO9001 SGS
Trademark: Sansion
Origin: China
HS Code: 9030332000
Production Capacity: 100 Units/Month
Contact Now
Company Info.
Sansion Power Electric Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Precision Portable MOA Tester Zinc Oxide Arrester Electrified Tester

Product Description
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test MOA Test Device

General Information:
SXYHX series Zinc Oxide Arrester Electrified Tester is a special instrument used for detecting zinc oxide lightning arrester electrical properties, the instrument is suitable for all kinds of voltage grade zinc oxide lightning arrester of on-line or power off detection, so as to discover the internal insulation equipment be affected with damp be affected with damp, valve plates aging dangerous defects, etc.
Equipment operation is simple, easy to use, the whole measuring process is controlled by single chip microcomputer, can measure the zinc oxide lightning arrester full current and resistive current and harmonic, frequency voltage and harmonics, active power and phase difference, real big screen can display voltage and current waveform..Instrument with digital waveform analysis technology, the use of harmonic analysis and digital filtering software anti-interference methods, such as the measurement results are accurate, stable, to analysis the fundamental wave and 3 ~ 7 times harmonic content accurate., and overcome the interphase interference effects can, measure the edge of impedance surge arrester current correctly. This machine is equipped with high-speed panel printer, rechargeable batteries; the experimenter uses it very convenient. Instrument adopts unique high speed magnetic isolation digital sensor collection and collects input voltage, current signal directly, to ensure the reliability and security of data.
Features:
1. The machine uses LCD display, full English menu operation, easy to use.
2. High precision sampling and processing circuit, the advanced Fourier harmonics analysis technology, ensure the data is more reliable.
3. Instrument uses unique high speed magnetic isolation digital sensor collection and input voltage, current signal directly, to ensure the reliability and security of data.
4. Instrument has an impedance current peak value output, edge phase correction, etc.
5. Instruments equipped with rechargeable batteries, calendar, clock, miniature printer, can store 120 groups of measuring data.
Specifications:
1.
Full current range:0~10mA Valid values Accuracy: ±(Readings×5%+5uA)
2.
Fundamental wave of resistive current accuracy (wired without interphase interference:±(Readings×5%+5uA)
3.
Current harmonic accuracy: ±(Readinbgs×10%+10uA)
4.
The current channel input resistance: ≤2Ω
5.
Input voltage range: 25V~250V accuracy: ±(Readings×5%+0.5V)
6.
Voltage harmonic accuracy: ±(Readings×10%)
7.
Voltage channel input resistance:≥1800kΩ
8.
AC charging: AC 220 v + 10%, 50 Hz ± 1%
9.
Battery continuous working time: more than 8 hours
10.
Battery charging time: 6 hours
11.
Precision of the instrument: 1%
12.
Instrument dimensions: 34 cm x 22 cm x 20 cm
13.
Instrument weight: 5 kg (excluding cable box)
14.
Working environment temperature: - 10 ~ 40 ºC
15.
Relative humidity: < 90%
Company Profile
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test Moa Test Device

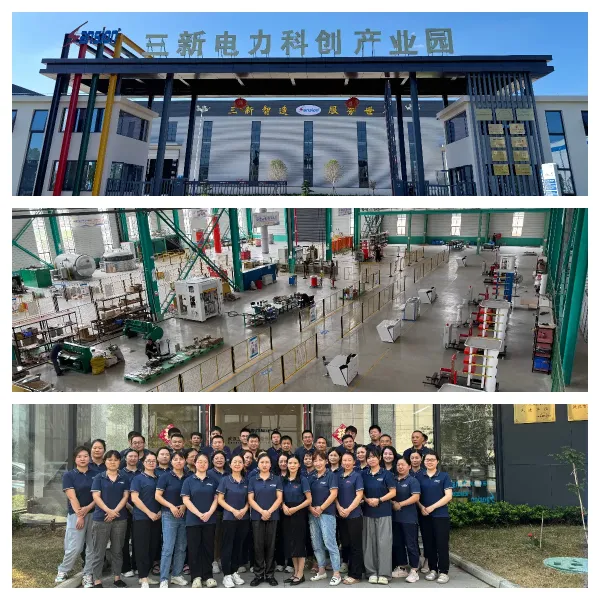

About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Main products:
HV Hipot Test Set System
Transformer Test Equipment
HV Switchgear Test Set
Relay Protection Tester
CT/PT Tester
SF6/Oil Tester
Transmission Line Test System
Insulation Resistance Tester
Earth Resistance Tester
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test Moa Test Device
Certifications
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and etc, now we have more than 60 employees including 20 technical engineers. We have obtained the ISO9001 quality system certification and all products strictly conform to the international IEC or Chinese state standards.
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test Moa Test Device
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test Moa Test Device
Packing & Delivery
From the date of order placing, we usually need 3-7 working days to manufacturing. Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean. Sansion Power also can provide OEM service according your customized. We are sincerely looking forward to cooperate with you from all the countries of the whole world.
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test Moa Test Device
Customer Visit
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test Moa Test Device
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.

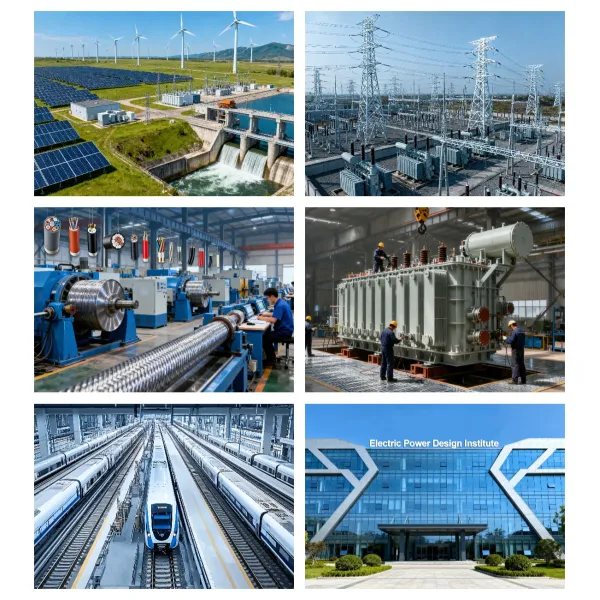

Q6:In which fields can your product be applied?
A: Our services span key industries including Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Many of our products incorporate advanced international technologies and rank among the best in China. They have consistently excelled in national high-voltage testing competitions and earned widespread acclaim from our partners.
Portable Zinc Oxide Arrester Electrified Tester for Leakage Current Test Moa Test Device
