Double Two Heating Position U/ R-Shape PVC Pipe Belling Socketing Machine

Categories Pipe Belling Machine
Brand Name: LB
Model Number: LB
Certification: CE ISO
Place of Origin: ZHANGJIAGANG
MOQ: 1 SET
Price: Negotiable(USD EUR)
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Delivery Time: 45 WORKING DAYS
Packaging Details: NORMAL PACKAGE
Pipe diameter: 16~630mm
Product Type: Plastic Pipe
Controlsystem: PLC Control with Touch Screen
Automatic Grade: full automatic
Model: SGK
Screw Design: Conical twin screw extruder
Motor Power: 22KW
Coolingmethod: Air Cooling
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Double Two Heating Position U/ R-Shape PVC Pipe Belling Socketing Machine

Double Two Heating Position U/ R-Shape PVC Pipe Belling Socketing Machine

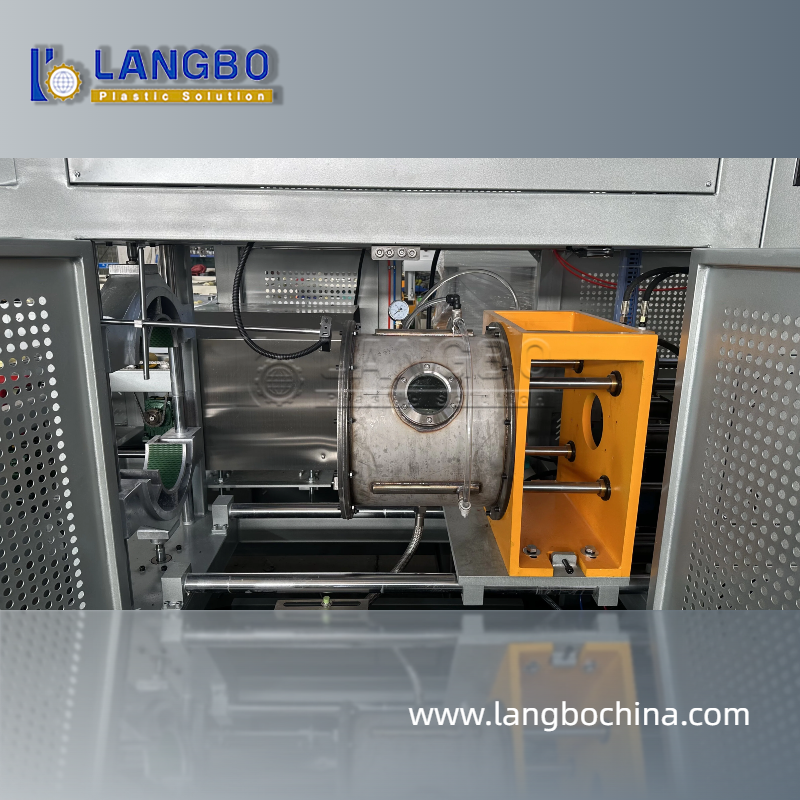

Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter)Φ 20-630mm
Belling TypeR type & U type
Used Oil LabelNo. 40/Hydraulic Oil
Quantity of Heater2
Highest Temperature in Heater280°C
Gas Pressure0.6~0.8Mpa
Water Pressure0.2~0.3Mpa
Pipe Length3-6m
Center Height900mm ± 50mm
Machine Dimensions8615 × 3125 × 2500mm
