| Categories | Three system |
|---|---|
| product type: | Scarf, SWEATER, Collar, shoe upper |
| production capacity: | 1.2m/S(3.94ft/s) |
| Place of Origin: | Anhui, China |
| Brand Name: | OPEK |
| power(w): | 1.5 W(0hp) |
| knitting style: | FLAT |
| Knitting Method: | Three system |
| Computerized: | Yes |
| dimension(l*w*h): | 2790*2010*940mm(109.84*79.13*37.01in) |
| Warranty: | 1 Year |
| Key Selling Points: | High Productivity |
| gauge: | 3 GG, 12 GG, 14 GG, 16 GG, 9 GG, 5 GG, 10GG, 18GG, 16GG, 8GG, 3-5-7 multi-gauge, 8-10-12 multi-gauge |
| knitting width: | 52 Inch |
| machinery test report: | Provided |
| video outgoing-inspection: | Provided |
| core components: | Motor |
| Product Name: | Fully Fashion Automatic Computerized Flat Knitting Machine |
| Gauge: | 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg |
| Knitting system: | Single carriage with three system system |
| Multi-gauge: | 3-5-7 multi-gauge , 8-10-12 multi-gauge |
| Application: | Sweater knitting , fabric knitting , hat and scarf knitting |
| Keywords: | 3 system computerized flat knitting machine |
| Knittind width: | 52 inch |
| Applicable Industries: | Garment Shops, Manufacturing Plant, Home Use, Retail, Advertising Company |
| Condition: | New |
| Type: | Jacquard |
| Marketing Type: | New Product 2020 |
| Warranty of core components: | 2 Years |
| Weight: | 1280 KG(2821.92lb) |
| MOQ: | 1 set |
| Price: | $6,800-9,800 / set |
| Company Info. |
| Hefei Opek Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
three system flat knitting machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Single carrier with three system
4.Max speed:1.2m/s.
Gauge : | 2.5gg,3gg, 3-5-7 multi-guague ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 8-10-12 multi-gauge ,14gg,16gg ,18gg | ||||
Knitting bed width : | 52 /56 /60/72/80 inch | ||||
knitting function: | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or
apparent shaping and other regular or irregular patterns. | ||||
Knitting speed: | Controlled by servo motor, 24 sections speed optional, max
1.2M/S.varies according to gauge and knitting condition | ||||
Knitting system: | Single carriage with three system | ||||
Needle bed: | Replaceable segment needle bed ,flat needle bed | ||||
Take down roller: | Programmed instruction,controlled by marching motor, changeable 24
levels and selectable scope: 0-99. | ||||
Transfer: | Combined cam box single or double system can work independently and
one system can transfer the stitch While the other system keeps
knitting. | ||||
Racking: | Controlled by servo motor racking within 2 inches and with fine
adjusting function. | ||||

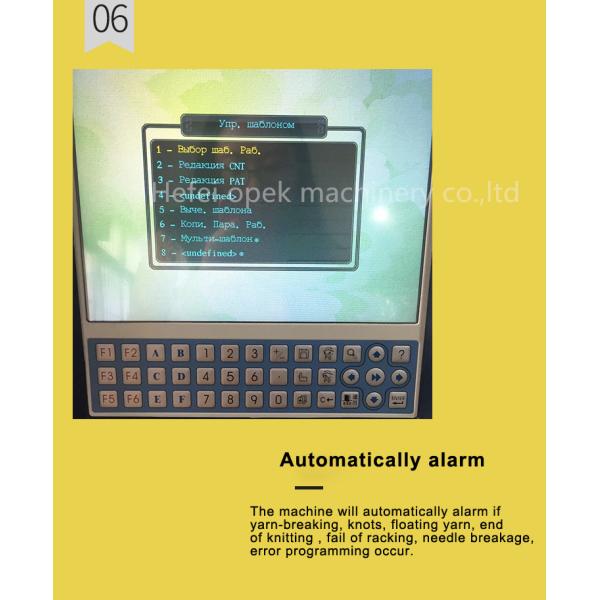

Protection: | The machine will automatically alarm if yarn-breaking knots
floating yarn rewind end of knitting, fail of racking needle
breakage error programming occur. | ||||
Stitch system: | Controlled by stepping motor, 24 section stitch selectable,
adjustable scope supported by subdivision technology: 0-650, the
stitch of the knitwear can be accurately controlled. | ||||
Encoder: | Advanced encoder adopted. | ||||
Yam carrier: | 2×8 Yarn carriers on each side of 4 guide rails, shiftable on any
needle position(special instarsia carriers available). | ||||
Sinker system | Controlled by stepping motor, adjustable to different knitwear,
have various results of shaping and patterns. | ||||
Power: | Singe-phase 220V, adopts advanced CMOS technology, having
memorizing function at power shock stop. | ||||
Controller: | 1. Screen:Adopt LCD industrial screen and figure interface,input
device:USB. Internal storage 32M.The latest system 1G. A great
amount of design files can be stored at the same time and they can
be fetched out for using at any time as per production
requirements. | ||||
2. Monitoring menu,each kind of operating parameter can be shown,
and they can be adjusted at any time when the machine is running is
visual and easy to understand and upgrade. | |||||
3. Free design is visual and easy to understand and upgrade | |||||
4.Multi language version :there are Chinese .English and Arabic
etc. languages version ,the other language version set up shall
according to customers requirement . | |||||
Volume and weight | Length×width×height: 2790×1100×1500mm Net weight :1280kg | ||||
|
