| Sign In | Join Free | My insurersguide.com |
|
| Categories | Rotary Drying Machine |
|---|---|
| Model Number: | cement |
| Warranty: | 24 Months |
| Price: | 335000-789000 |
| OEM: | Accept |
| Supply Ability: | 20 sets/month |
| Capacity: | 1.5-13t/h |
| Voltage: | Upo to Client |
| Payment Terms: | T/T |
| Condition: | New |
| Application: | cement, lime |
| MOQ: | 1 |
| Delivery Time: | 30-50 days |
| Material: | Q235, SS304,SS316 |
| Place of Origin: | China |
| Packaging Details: | negociated |
| Certification: | ISO9001 |
| Brand Name: | hengyang |
| Company Info. |
| Zhengzhou Hengyang Industrial Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
To ensure that you have the driest final product at the lowest
cost, we provide a customized solution tailored to nearly any
heating source or downstream application. The result is a complete
process solution together with any test run optimizations or
ancillary technologies you may need, all from a single source.
Based on experience from hundreds of installations worldwide, we
can help you minimize your disposal costs to profitably produce an
equally wide range of dried sludge products. This could mean
turning out Class A biosolids for fertilizer products, alternative
fuels for power plants or cement plants, or dried sludge for a
variety of mono-combustion and cocombustion applications.

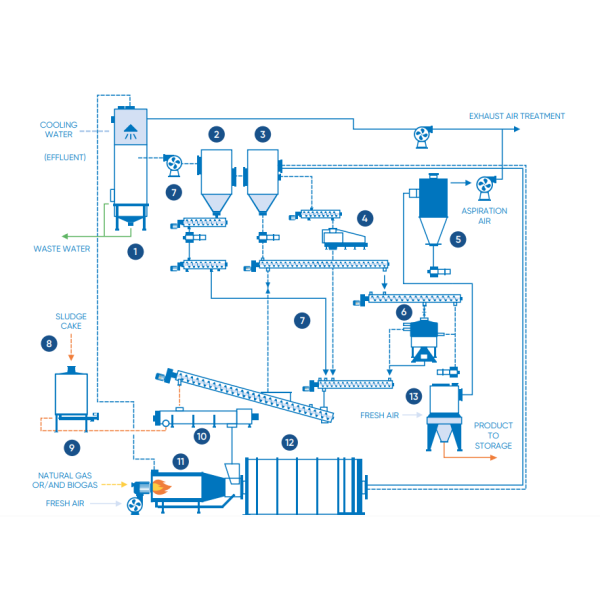

OPTIMIZED DRYING SOLUTIONS FOR MULTIPLE RECYCLING OPTIONS
After screening, dewatering, thickening, and dewatering steps, a
drying phase is required for valorization. Hengyang
industry-leading range of drying solutions makes it possible to
tailor the right process technology for any demand. Depending on
your local market conditions and desired dried sludge product, we
can advise on the most efficient and best value-for-money solution
for your needs.

Technical performance of Solid waste drying machine for sale:
Size(m) | Capacity(t/d) | Inclination(%) | Supports(pc) | Damper Type | Kiln Rotation Speed | Main Drive | Auxiliary Drive | |||
Main Drive(r/m) | Auxiliary Drive(r/m) | Motor Power(KW) | Reducer (Overall Ratio) | Motor Power (KW) | Reducer (Overall Ratio) | |||||
φ2.8/2.5×44 | 300 | 3.5 | 3 | Mechanical | 0.445-2.22 | 4.75 | 55 | 49-63 | 4 | 40.44 |
φ3×48 | 600-700 | 3.5 | 3 | Mechanical/ Hydraulic | 0.676-3.38 | 9.36 | 100 | 50 | 7.5 | 14 |
φ3.2×50 | 1000 | 3.5 | 3 | Hydraulic | 0.36-3.57 | 6.5 | 160 | 40 | 15 | 31.5 |
φ3.3×50 | 1200 | 4 | 3 | Hydraulic | 0.36-3.57 | 5.61 | 160 | 40 | 11 | 31.5 |
φ3.5×54 | 1500-1800 | 4 | 3 | Hydraulic | 0.39-3.9 | 7.66 | 220 | 28 | 18.5 | 45 |
φ4×60 | 2500 | 4 | 3 | Hydraulic | 0.41-4.07 | 8.2 | 315 | 22.4 | 22 | 45 |
φ4.3×64 | 3500 | 4 | 3 | Hydraulic | 0.4-4.0 | 7.93 | 400 | 31.5 | 30 | 45 |
φ4.8×74 | 5000 | 4 | 3 | Hydraulic | 0.35-4 | 8.52 | 630 | 42.226 | 55 | 28 |
φ5.0×74 | 6000 | 4 | 3 | Hydraulic | 0.35-4 | 7.58 | 710 | 28 | 55 | 45 |
φ5.6×87 | 8000 | 4 | 3 | Hydraulic | Max4.23 | 8.7 | 800 | 23.901 | 90 | 35.795 |
φ6.0×95 | 10000 | 4 | 3 | Hydraulic | Max5 | 9.2 | 950×2 | 26.646 | 132 | 35.795 |

|
