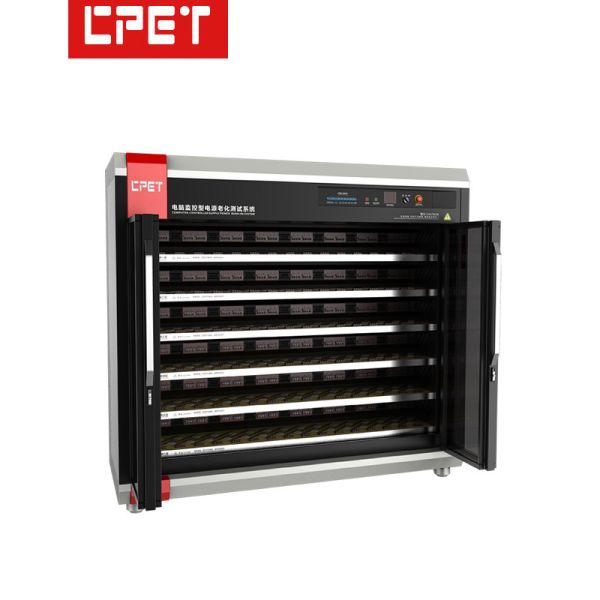

Aging Test Machine Burn In Machine For Switching Power Led Lamp Power Supply

Aging Test Machineburn-In Machine For Switching Power Led Lamp Power Supply

1. Set various load parameters and real-time monitor for parameters such as voltage, current and power by computer software

2. Be of five kinds of load modes such as CC, CV, CR, CP and LED

3. Support parallel connection of channels under any load modes and meet power extension of products

4. Support power cc from low voltage to high voltage and from low current to large current

5. Be of built-in over-temperature and smoke-alarming automatic protection device

6. Be of editable switch sequence and load conversion function

7. Cooperate with monitoring software of power burn-in, for application

8. Interface of multiple DC adapter plates can meet the demands for different output interface products

9. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of different products

Performance parameters

Model	CP-3003	CP-3004	CP-3005	CP-3001	CP-3002
Power of single channel	400W/CH	100W/CH	125W/CH	96W/CH	96W/CH
Quantity of load channels	240CH	192CH	192CH	96CH	96CH
Scope of load voltage	2-450V	2-450V	2-450V	8-420V	8-420V
Scope of load current	0.05-10A/CH	0.05-5A/CH	0.05-10A/CH	0.05-12A/CH	0.05-12A/CH
Load precision	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)	±(1%+0.1%FS)
Load Model	Electronic load type	Electronic load type	Electronic load type	Energy Saving	Energy Saving
Load Mode	CC+CV Mode	CC+CV Mode	CC+CV Mode	CC+CV+CR+CP+LED Mode	CC+CV+CR+CP+LED Mode
Number for plies of product zone	6
Height for plies of product zone(mm)	170
Width of products zone(mm)	Series CC mode 380
Temperature control of products zone	Temperature control type of products zone: normal temperature-60℃
Structure material of trolley	Elaborately processed and produced with cold-rolled sheet
Mode of main control	Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT	Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT	Connecting fixture boards (with various specifications) for first choice/custom design
External dimension	2050*1200*1900/custom design
