| Categories | Needle Roller Bearing |
|---|---|

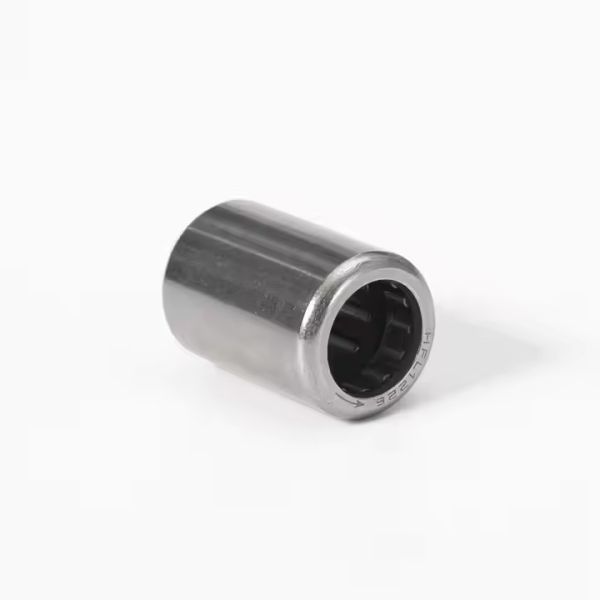

| Brand Name: | SFT |
| Model Number: | HFL1426 |
| Place of Origin: | CHINA |
| MOQ: | 500 |
| Price: | 1-50USD/PC |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000PCS |
| Delivery Time: | 45 days |
| Packaging Details: | neutral |
| Number of Row: | Three Row |
| Bore Size: | 6 - 35 mm |
| Cage Material: | ST14 |
| Type: | Needle |
| Needle Material: | GCr15 |
| Thickness: | 15-30mm |
Structure of Drawn Cup Bearngs :
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.
Catalogue of Drawn Cup Bearings for your choice
| Shaft Diameter | Mass Approx | Torgue Ma | Basic Load Ratings | ||||||||
| Clutch Designation | Borndary Dimensions | Limiting Speed | |||||||||
| Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 | C | Co | |||||
| KN | |||||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
|
