| Categories | End Mill |
|---|---|
| Brand Name: | BABOS |
| Model Number: | 65 R9*18*36*18*150L 2T |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 20,000PCS per month |
| Delivery Time: | 3 days for standard products, 1-2weeks for custom products. |
| Packaging Details: | Plastic Box |
| Cut Diameter: | 18mm |
| Shank Diameter: | 36mm |
| Overall Length: | 18mm |
| Coating/Finish Type: | TiAISiN |
| Machine Type: | Finish Machining, Roughing Machining |
| Application: | Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc. |
| Tolerance: | 0.020mm~0.050mm |
| Customize: | Available |
| Company Info. |
| CHENGDU BABOS CUTTING TECH CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
The HRC65 R9 2-Flute Carbide Ball Nose End Mill is a high-performance tool designed for precision 3D contouring, deep cavity milling, and mold machining. With an ultra-hard TiAlSiN coating, it offers exceptional wear resistance, heat resistance, and durability, making it ideal for machining hardened steels, alloy steels, and cast iron up to HRC65. The long reach (150mm overall length) allows for deep milling applications while maintaining stability and accuracy.

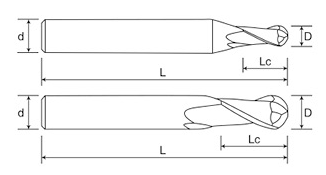

| HRC 2 Flutes Ball Nose End Mill Specifications (For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron) | |||||
| Sizes | Cut Diameter D | Cut Length Lc | Shank Diameter d | Overall Length L | Flutes No. |
| R1.5*6*3*50 | 3 | 6 | 3 | 50 | 2 |
| R1.5*6*3*75 | 3 | 6 | 3 | 75 | 2 |
| R1.5*6*3*100 | 3 | 6 | 3 | 100 | 2 |
| R0.5*2*4*50 | 1 | 2 | 4 | 50 | 2 |
| R0.75*3*4*50 | 1.5 | 3 | 4 | 50 | 2 |
| R1*4*4*50 | 2 | 4 | 4 | 50 | 2 |
| R1.25*5*4*50 | 2.5 | 5 | 4 | 50 | 2 |
| R1.5*6*4*50 | 3 | 6 | 4 | 50 | 2 |
| R1.75*7*4*50 | 3.5 | 7 | 4 | 50 | 2 |
| R2*8*4*50 | 4 | 8 | 4 | 50 | 2 |
| R2*8*4*75 | 4 | 8 | 4 | 75 | 2 |
| R2*8*4*100 | 4 | 8 | 4 | 100 | 2 |
| R0.5*2*4*75 | 1 | 2 | 4 | 75 | 2 |
| R0.75*3*4*75 | 1.5 | 3 | 4 | 75 | 2 |
| R1*4*4*75 | 2 | 4 | 4 | 75 | 2 |
| R1.25*5*4*75 | 2.5 | 5 | 4 | 75 | 2 |
| R1.5*6*4*75 | 3 | 6 | 4 | 75 | 2 |
| R2.5*10*5*50 | 5 | 10 | 5 | 50 | 2 |
| R2.5*10*5*75 | 5 | 10 | 5 | 75 | 2 |
| R2.5*10*5*100 | 5 | 10 | 5 | 100 | 2 |
| R0.5*2*6*50 | 1 | 2 | 6 | 50 | 2 |
| R0.75*3*6*50 | 1.5 | 3 | 6 | 50 | 2 |
| R1*4*6*50 | 2 | 4 | 6 | 50 | 2 |
| R1.25*5*6*50 | 2.5 | 5 | 6 | 50 | 2 |
| R1.5*6*6*50 | 3 | 6 | 6 | 50 | 2 |
| R2*8*6*50 | 4 | 8 | 6 | 50 | 2 |
| R2.5*10*6*50 | 5 | 10 | 6 | 50 | 2 |
| R3*12*6*50 | 6 | 12 | 6 | 50 | 2 |
| R3*12*6*75 | 6 | 12 | 6 | 75 | 2 |
| R3*12*6*100 | 6 | 12 | 6 | 100 | 2 |
| R3*12*6*150 | 6 | 12 | 6 | 150 | 2 |
| R3.5*14*8*60 | 7 | 14 | 8 | 60 | 2 |
| R4*16*8*60 | 8 | 16 | 8 | 60 | 2 |
| R4*16*8*75 | 8 | 16 | 8 | 75 | 2 |
| R4*16*8*100 | 8 | 16 | 8 | 100 | 2 |
| R4*16*8*150 | 8 | 16 | 8 | 150 | 2 |
| R4.5*18*10*75 | 9 | 18 | 10 | 75 | 2 |
| R5*20*10*75 | 10 | 20 | 10 | 75 | 2 |
| R5*20*10*100 | 10 | 20 | 10 | 100 | 2 |
| R5*20*10*150 | 10 | 20 | 10 | 150 | 2 |
| R5.5*22*12*75 | 11 | 22 | 12 | 75 | 2 |
| R6*24*12*75 | 12 | 24 | 12 | 75 | 2 |
| R6*24*12*100 | 12 | 24 | 12 | 100 | 2 |
| R6*24*12*150 | 12 | 24 | 12 | 150 | 2 |
| R7*28*14*80 | 14 | 28 | 14 | 80 | 2 |
| R7*28*14*100 | 14 | 28 | 14 | 100 | 2 |
| R7*28*14*150 | 14 | 28 | 14 | 150 | 2 |
| R8*32*16*100 | 16 | 32 | 16 | 100 | 2 |
| R8*32*16*150 | 16 | 32 | 16 | 150 | 2 |
| R9*36*18*100 | 18 | 36 | 18 | 100 | 2 |
| R9*36*18*150 | 18 | 36 | 18 | 150 | 2 |
| R10*40*20*100 | 20 | 40 | 20 | 100 | 2 |
| R10*40*20*150 | 20 | 40 | 20 | 150 | 2 |
This tool is ideal for complex parts requiring intricate detailing or finishing with tight tolerances.
|
