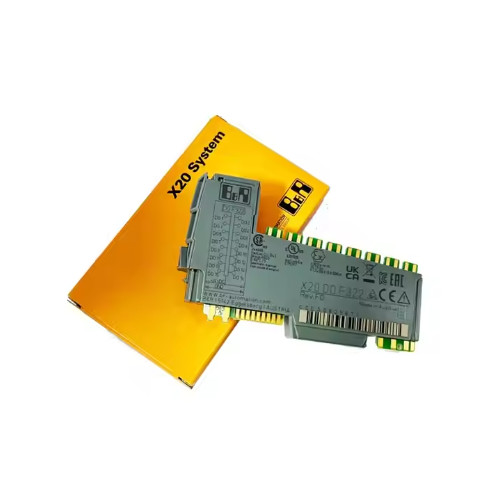

B&R X20DOF322 Industrial PLC Controller | High-Performance Automation Module for Machinery & Robotics | Official B&R Store

Module Identification

The module in question has a material number of X20DOF322. This unique identifier helps in easy recognition and tracking within a system. It is crucial for inventory management and technical support, ensuring that the correct module is being referred to in various processes, whether it's installation, maintenance, or replacement.

Functionality

This module is equipped with 16 digital outputs specifically designed for 1 - wire connections. It is engineered for source output wiring, which means it can actively drive signals to connected devices. This setup is beneficial in applications where a reliable source of digital signals is required. For example, in industrial control systems, it can be used to control the operation of multiple components with a single - wire connection, simplifying the wiring complexity.

Protection and Advantage

Integrated output protection is a key feature of this module. This protection safeguards the outputs from various electrical issues such as over - voltage, over - current, and short - circuits. By having this built - in protection, the module's lifespan is extended, and the reliability of the overall system is enhanced. It reduces the risk of damage to connected devices and minimizes downtime, making it a cost - effective choice for applications where continuous operation is essential.

Attribute	Detail
General Information
Model Number	X20DOF322
Brand	B&R
B&R ID Code	0xC0EA
Product Type	Digital output module
Description	16 digital outputs for 1 - wire connections, source connection, integrated output protection
Electrical Characteristics
Nominal Voltage	24 VDC
Switching Voltage	24 VDC - 15% / + 20%
Nominal Output Current	0.5 A
Total Nominal Current	8 A
Connection Type	1 - wire connections
Output Circuit	Source
Output Protection	Thermal shutdown in case of overcurrent or short circuit. Internal freewheeling diode for switching inductive loads
Diagnostic Status	Output monitoring with 10 ms delay
Leakage Current (Output Off)	5 µA
Rds(on)	140 mΩ
Peak Short - Circuit Current	< 3 A
Switch - On Time after Overload or Short - Circuit Shutdown	Approx. 10 ms (depends on module temperature)
Switching Delay (0 → 1 / 1 → 0)	< 300 µs / < 300 µs
Switching Frequency (Resistive Load)	Max. 500 Hz
Braking Voltage (Inductive Load Switch - Off)	Typ. 45 VDC
Insulation Voltage (Channel - Bus)	500 V eff
Electrical Isolation	Channel isolated from bus; channel not isolated from channel and I/O power supply
Power Consumption
Bus	0.28 W
Internal I/O	0.95 W
Additional Power Dissipation (Actuators - Resistive)	+ 0.56 W
Operating Conditions
Mounting Orientation	Horizontal and vertical
Installation Elevation	0 - 2000 m: no limitation; > 2000 m: reduce ambient temperature by 0.5 °C per 100 m
Degree of Protection	IP20
Temperature (Operation - Horizontal)	- 25 to 60 °C
Temperature (Operation - Vertical)	- 25 to 50 °C
Temperature (Storage)	- 40 to 85 °C
Temperature (Transport)	- 40 to 85 °C
Relative Humidity (Operation / Storage / Transport)	5 - 95%, non - condensing
Mechanical Properties
Pitch	12.5 + 0.2 mm
Shipping Weight	2 kg
Certifications	CE, UKCA, ATEX Zone 2, UL cULus E115267, DNV, CCS, LR Env 1, KR, ABS, BV, etc.
