| Categories | Industrial Air Spring |
|---|---|
| Brand Name: | GUOMAT |
| Model Number: | 260130H-1 |
| Certification: | ISO/TS16949, ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Model NO.: | 260130H-1 |
| Quality: | 100 % Tested |
| Fuction: | Reduce Shock |
| Transport Package: | Strong Cartons |
| Trademark: | GUOMAT |
| Origin: | Guangzhou, China |
| Warranty: | 12 Months |
| Type: | Gas-Filled |
| Company Info. |
| GUANGZHOU GUOMAT AIR SPRING CO. , LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
260130H-1 Industrial Air Spring with Flange Ring for Construction Vehicles
About GUOMAT Air Springs
Flange-type air springs excel in safety. They use advanced sealing technology to effectively prevent gas leakage and ensure the safe operation of the system. In addition, the flange-type air springs use precise processing technology inside, the piston and spring are precisely matched, and the operation is stable and reliable, which can ensure the safe operation of the equipment.
Product Details
| Nut / Blind Nut Top Cover Plate Screw (Nut) Tooth : 8×M10 Bottom Cover Plate Screw (Nut) Tooth :8×M10 |
| Gas Hole / Air inlet / Air Fitting Gas Hole / Air inlet : G1/2 |
| Cover Plate Top Cover Plate Diameter:210MM Bottom Cover Plate Diameter: 210MM |
| Rubber Bellows Rubber Bellows Natural Diameter : 260 mm Rubber Bellows Natural Diameter :130 mm |
| Bumper block / Buffer block Without Bumper Block |
| Girdle Hoop / Girdle Ring/Belt Loop Without girdle hoop/girdle ring/belt loop |
Product Core Competitiveness
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid
resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness,
anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace
the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant,
long service life.
Other Types
| Model Size | Nominal diameter | The largest diameter(0.7MPA) | Bearing capacity at design height | Natural frequency(0.7MPA) | Stroke | Weight | |||
| 0.2MPA | 0.5MPA | 0.7MPA | Minimum compression height | Height of safe elongation | |||||
| 086060H-1 | 50 | 110 | 44 | 123 | 175 | 5.18 | 42 | 90 | 1 |
| 120060H-1 | 80 | 130 | 122 | 313 | 444 | 3.79 | 42 | 65 | 1.6 |
| 150076H-1 | 104 | 160 | 164 | 435 | 621 | 3.5 | 46 | 85 | 1.4 |
| 188102H-1A | 120 | 210 | 208 | 587 | 862 | 3.05 | 52 | 115 | 2.25 |
| 215120H-1 | 125 | 233 | 294 | 768 | 1109 | 2.83 | 42 | 140 | 2.9 |
| 235118H-1 | 180 | 260 | 474 | 1185 | 1684 | 2.52 | 60 | 136 | 2.6 |
| 235150H-1 | 180 | 260 | 441 | 1205 | 1740 | 2.29 | 65 | 172 | 3.1 |
| 260135H-1 | 170 | 290 | 425 | 1150 | 1670 | 2.4 | 55 | 155 | 2.95 |
| 280126H-1 | 195 | 300 | 643 | 1662 | 2370 | 2.46 | 50 | 144 | 3.75 |
| 320124H-1 | 230 | 340 | 798 | 2071 | 2965 | 2.28 | 52 | 142 | 3.9 |
| 130142H-2 | 80 | 150 | 80 | 219 | 314 | 3.12 | 72 | 162 | 4.4 |
| 156130H-2 | 118 | 170 | 70 | 146 | 3.15 | ||||
| 160166H-2 | 100 | 175 | 149 | 413 | 593 | 2.3 | 82 | 190 | 2.35 |
| 168132H-2 | 120 | 185 | 229 | 589 | 832 | 2.53 | 72 | 151 | 2.2 |
| 200142H-2 | 150 | 220 | 326 | 843 | 1195 | 2.02 | 78 | 162 | 3.05 |
| 220200H-2 | 148 | 250 | 354 | 920 | 1310 | 1.89 | 90 | 229 | 3.22 |
| 230214H-2 | 150 | 255 | 388 | 1023 | 1457 | 1.93 | 88 | 246 | 4.05 |
| 235152H-2 | 180 | 250 | 461 | 1180 | 1667 | 1.91 | 80 | 174 | 3.25 |
| 235210H-2 | 180 | 250 | 80 | 245 | |||||
| 250180H-2 | 185 | 270 | 520 | 1345 | 1904 | 1.74 | 84 | 206 | 3.95 |
| 252163H-2 | 192 | 275 | 422 | 1142 | 1644 | 1.73 | 82 | 238 | 4.2 |
| 260230H-2 | 170 | 290 | 374 | 1036 | 1506 | 1.78 | 90 | 263 | 4.85 |
| 280214H-2 | 200 | 305 | 668 | 1741 | 2480 | 1.68 | 88 | 246 | 5.57 |
| 290265H-2 | 205 | 320 | 440 | 1250 | 1800 | 1.19 | 90 | 303 | 6.55 |
| 300170H-2 | 240 | 320 | 849 | 2156 | 3045 | 1.74 | 85 | 195 | 5.35 |
| 310214H-2 | 230 | 330 | 813 | 2078 | 2992 | 1.89 | 88 | 245 | 7 |
| 330214H-2 | 250 | 355 | 1064 | 2749 | 3897 | 1.65 | 88 | 246 | 7.75 |
| 330254H-2 | 230 | 355 | 861 | 2222 | 3166 | 1.75 | 88 | 290 | 7.24 |
| 350255H-2 | 250 | 380 | 1095 | 2851 | 4098 | 1.45 | 90 | 295 | 8.2 |
| 360214H-2 | 280 | 380 | 1250 | 3220 | 4570 | 1.36 | 88 | 246 | 7.9 |
| 380221H-2 | 300 | 405 | 1432 | 3765 | 5352 | 1.34 | 90 | 255 | 8.5 |
| 400217H-2 | 320 | 430 | 1753 | 4450 | 6300 | 1.66 | 90 | 249 | 11.1 |
| 400255H-2 | 300 | 430 | 1465 | 3752 | 5256 | 1.55 | 90 | 295 | 10.4 |
| 430255H-2 | 330 | 460 | 1760 | 4526 | 6427 | 1.43 | 90 | 295 | 10.2 |
| 480217H-2 | 400 | 510 | 2723 | 6850 | 9700 | 1.27 | 88 | 249 | 13.8 |
| 520217H-2 | 440 | 550 | 3070 | 7850 | 11094 | 1.41 | 90 | 249 | 14.5 |
| 580214H-2 | 500 | 600 | 3978 | 10137 | 14293 | 1.65 | 88 | 246 | 13.3 |
| 630262H-2 | 530 | 660 | 4371 | 10585 | 15801 | 1.48 | 90 | 300 | 19.9 |
| 680262H-2 | 580 | 710 | 5278 | 13596 | 19313 | 1.35 | 90 | 302 | 18.6 |
| 200206H-3 | 150 | 220 | 229 | 634 | 888 | 1.68 | 116 | 236 | 3.75 |
| 250260H-3 | 185 | 270 | 507 | 1344 | 1924 | 1.7 | 116 | 299 | 5.5 |
| 255230H-3 | 200 | 280 | 566 | 1460 | 2070 | 1.3 | 116 | 264 | 5.55 |
| 255322H-3 | 200 | 290 | 116 | 400 | 5.85 | ||||
| 310306H-3 | 230 | 330 | 861 | 2239 | 3170 | 1.3 | 120 | 354 | 7.3 |
| 330306H-3 | 250 | 355 | 1035 | 2730 | 3892 | 1.4 | 120 | 354 | 8.69 |
| 360306H-3 | 280 | 380 | 1250 | 3220 | 4570 | 1.3 | 122 | 360 | 8.25 |
| 380316H-3 | 300 | 405 | 1401 | 3672 | 5235 | 1.32 | 122 | 370 | 10.95 |
| 400312H-3 | 320 | 430 | 1724 | 4436 | 6308 | 1.19 | 122 | 360 | 11.8 |
| 430370H-3 | 330 | 460 | 1716 | 4435 | 6333 | 1.20 | 122 | 430 | 13.8 |
| 480312H-3 | 400 | 510 | 2650 | 6883 | 9768 | 1.17 | 122 | 360 | 16.5 |
| 520312H-3 | 400 | 550 | 3046 | 7932 | 11262 | 1.32 | 122 | 360 | 20.1 |
| 580306H-3 | 500 | 600 | 3950 | 10181 | 14409 | 1.22 | 118 | 354 | 19.16 |
| 630376H-3 | 530 | 660 | 4243 | 11045 | 45612 | 0.94 | 122 | 436 | 24.1 |
| 680376H-3 | 580 | 710 | 5259 | 13620 | 19339 | 1.27 | 122 | 436 | 27.6 |

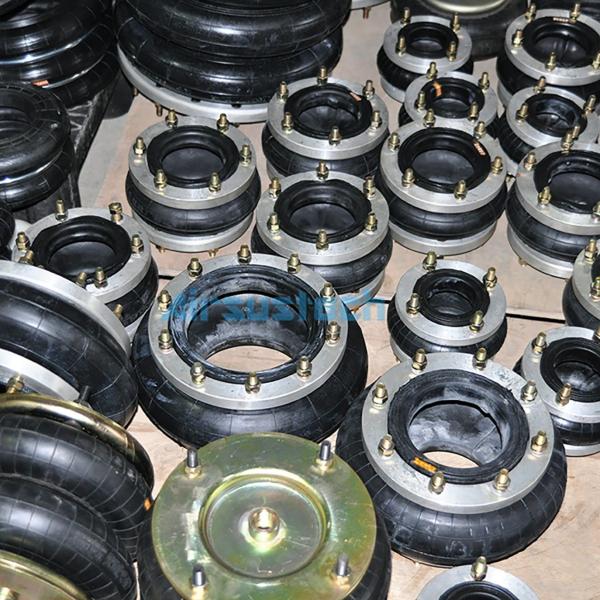

260130H-1 Real Pictures
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are:
rubber air springs, air suspension springs, rubber air springs for
automobiles, airbags for passenger cars and trucks, industrial air
springs, etc. The products cover buses, luxury cars, trucks,
Commercial vehicles, rail vehicles, industrial machinery,
industrial equipment and other industries. The company has hundreds
of models and styles of products. At the same time, it can also
carry out directional transformation and design of products
according to the special needs of users, providing users with
one-stop service.
