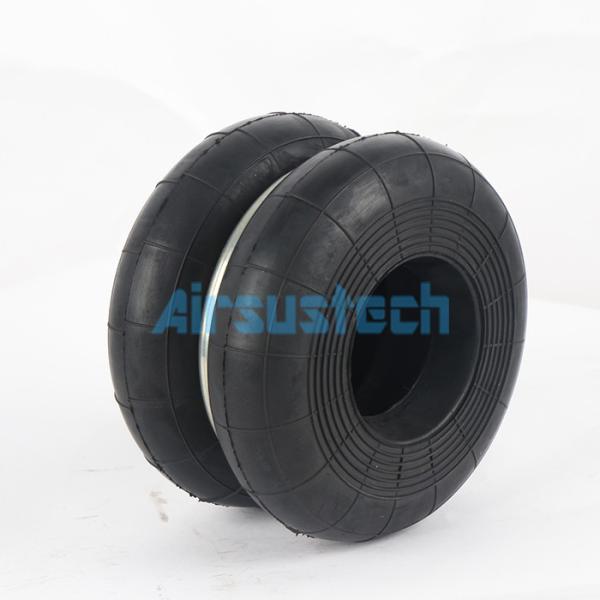

| Categories | Yokohama Air Spring |
|---|---|
| Brand Name: | AIRSUSTECH |
| Model Number: | F-120-2 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou,China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, Paypal or Others |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Supplier: | AIRSUSTECH |
| Product Number: | F-120-2 |
| Yokohama: | S-120-2R |
| Design Height: | 98 MM |
| Max. Expanded Height: | 148 MM |
| Spring Material: | Natural Rubber |
| Structure: | Double Convoluted |
| Sample: | Available |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Technical Datas
| AIRSUSTECH NO. | Yokohama Reference No. | Hight H(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | |||
| F-160-1 | S-160-1 | 72 | 102 | 40 | 220 |
| F-160-2 | S-160-2 | 98 | 148 | 53 | 220 |
| F-160-4 | S-160-4 | 206 | 306 | 111 | 220 |
| F-120-4 | S-120-4 | 206 | 306 | 111 | 180 |
| F-120-3 | S-120-3 | 152 | 227 | 82 | 180 |
| F-120-2 | S-120-2 | 98 | 148 | 53 | 180 |
| F-100-4 | S-100-4 | 206 | 296 | 121 | 160 |
| F-90-3 | S-90-3 | 152 | 222 | 87 | 160 |
| F-90-2 | S-90-2 | 98 | 143 | 58 | 160 |
| F-90-1 | S-90-1 | 76 | 106 | 46 | 125 |
Cross References
AIRSUSTECH NO.: F-120-2
YOKOHAMA: S-120-2R
YOKOHAMA: S 120 2R
YOKOHAMA: S1202R
Product Applications
In addition to being used as a die pad for a punching machine, it
is also used flexibly for the following purposes.
We Also Have Other YOKOHAMA Series Convoluted Rubber Bellows
| AIRSUSTECH | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | S-600-1R | S 600 1R | F-240-4 | S-240-4R | S 240 4R |
| F-600-2 | S-600-2R | S 600 2R | F-240-3 | S-240-3R | S 240 3R |
| F-600-3 | S-600-3R | S 600 3R | F-240-2 | S-240-2R | S 240 2R |
| F-600-4 | S-600-4R | S 600 4R | F-240-1 | S-240-1R | S 240 1R |
| F-600-5 | S-600-5R | S 600 5R | F-220-4 | S-220-4R | S 220 4R |
| F-550-2 | S-550-2R | S 550 2R | F-220-3 | S-220-3R | S 220 3R |
| F-550-3 | S-550-3R | S 550 3R | F-220-2 | S-220-2R | S 220 2R |
| F-500-2 | S-500-2R | S 500 2R | F-200-2 | S-200-2R | S 200 2R |
| F-500-3 | S-500-3R | S 500 3R | F-200-3 | S-200-3R | S 200 3R |
| F-500-4 | S-500-4R | S 500 4R | F-200-4 | S-200-4R | S 200 4R |
| F-500-5 | S-500-5R | S 500 5R | F-160-1 | S-160-1R | S 160 1R |
| F-450-1 | S-450-1R | S 450 1R | F-160-2 | S-160-2R | S 160 2R |
| F-450-2 | S-450-2R | S 450 2R | F-160-3 | S-160-3R | S 160 3R |
| F-450-3 | S-450-3R | S 450 3R | F-160-4 | S-160-4R | S 160 4R |
| F-450-4 | S-450-4R | S 450 4R | F-120-4 | S-120-4R | S 120 4R |
| F-450-5 | S-450-5R | S 450 5R | F-120-3 | S-120-3R | S 120 3R |
| F-400-2 | S-400-2R | S 400 2R | F-120-2 | S-120-2R | S 120 2R |
| F-400-3 | S-400-3R | S 400 3R | F-100-4 | S-100-4R | S 100 4R |
| F-400-4 | S-400-4R | S 400 4R | F-90-3 | S-90-3R | S 90 3R |
| F-400-5 | S-400-5R | S 400 5R | F-90-2 | S-90-2R | S 90 2R |
| F-350-1 | S-350-1R | S 350 1R | F-90-1 | S-90-1R | S 90 1R |
| F-350-2 | S-350-2R | S 350 2R | F-300-1 | S-300-1R | S 300 1R |
| F-350-3 | S-350-3R | S 350 3R | F-300-2 | S-300-2R | S 300 2R |
| F-350-4 | S-350-4R | S 350 4R | F-300-3 | S-300-3R | S 300 3R |
| F-300-4 | S-300-4R | S 300 4R |
