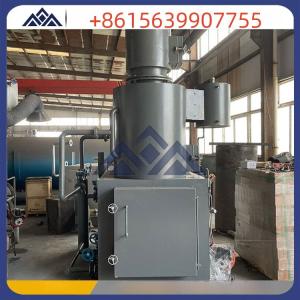

In today's society, waste treatment has become a global focus. Our
waste incinerator, as an innovative environmental - friendly
device, offers an ideal solution to the waste problem with its
excellent performance and advanced technology.
This waste incinerator adopts a unique combustion method of
"primary incineration + circumferential air mixing combustion +
secondary pyrolysis gasification + burnout treatment". The primary
incineration decomposes the waste initially. The circumferential
air mixing combustion promotes full contact between the waste and
air. The secondary pyrolysis gasification further improves the
combustion efficiency, and the burnout treatment ensures complete
combustion of the waste. This progressive combustion method greatly
enhances the incineration effect.
It has numerous remarkable advantages. With an extremely high
incineration efficiency, it can fully combust waste and effectively
reduce the volume of waste. Meanwhile, the equipment is compact in
size and occupies a small area, which is convenient for
installation and use. It is suitable for various places, such as
hospitals, hotels, stations, large commercial institutions,
enterprises, and public institutions. Its wide application scope
makes it a "versatile key" in the waste treatment field.
The fully - enclosed operation design is a major highlight of this
incinerator. When handling infectious waste, it can effectively
prevent secondary pollution, providing reliable protection for the
environment and human health. In addition, it is available in two
types: fuel - oil - fired and gas - fired. Users can choose
flexibly according to actual needs to meet the requirements of
different scenarios.
In terms of technical indicators, when treating domestic waste, the
temperature in the incinerator can be stably maintained at ≥850°C,
the residence time of flue gas is ≥2.0 seconds, the incineration
efficiency is ≥99%, the destruction and removal rate is ≥99%, and
the heat - reduction rate of incineration residues is ≥5%. All
indicators meet or even exceed the national specified standards,
fully demonstrating its high - efficiency harmless treatment
capacity.
In terms of equipment specifications, we offer a variety of models,
The incineration capacity of different models ranges from 30 - 50
kg/time to 400 - 500 kg/time. Parameters such as the size of the
incinerator, the size of the garbage inlet, the specifications of
the chimney, the power of the fan, the power of the burner, and the
fuel consumption also vary. Users can select the most suitable
model according to their own waste treatment volume and site
conditions.
For installation, we provide detailed and convenient installation
instructions. Whether it is the hoisting of the main equipment, the
flue gas purification chamber, and the chimney, or the installation
of the fan, burner, and oil pipeline, there are clear operating
steps to ensure that users can complete the installation smoothly
and put it into use quickly.
Choosing our waste incinerator means choosing an efficient,
environmentally - friendly, and safe waste treatment method,
contributing to environmental protection and sustainable
development.
| Specification | ZJS-30 | ZJS-100 | ZJS-200 | ZJS-300 | ZJS-500 |
|---|
| Handling Capacity (kg/times) | 30 - 80 | 100 - 150 | 200 - 300 | 300 - 400 | 400 - 550 |
| Size of Feeding Port (mm) | 480×600 | 760×960 | 900×1100 | 1080×1280 | 1300×1400 |
| Blower Power (kw) | 0.15 | 0.25 | 0.5 | 0.75 | 1.1 |
| Primary Burner | Power: 0.17KW
Oil consumption: 4 - 6kg/h | Power: 0.17KW
Oil consumption: 4.5 - 10kg/h | Power: 0.17KW
Oil consumption: 6.5 - 14kg/h | Power: 0.32kw
Oil consumption: 6.5 - 14kg/h | Power: 0.32kw
Oil consumption: 6.5 - 14kg/h |
| Secondary Burner | Power: 0.17KW
Oil consumption: 4 - 6kg/h | Power: 0.17KW
Oil consumption: 4.5 - 10kg/h | Power:
Oil consumption: | Power:
Oil consumption: | Power:
Oil consumption: |
| Weight (t) | 3.1 | 4.5 | 8.6 | 13.7 | 18.9 |
| Chimney (mm) | 273 | 273 |
Medium Waste Incinerators On-site or Off-site Installation for Optimal Performance
