| Categories | Strapping Band Winding Machine |
|---|---|
| Brand Name: | JT |
| Model Number: | JTPP/PET |
| Certification: | ISO CE SGS |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000sets |
| Delivery Time: | 30days |
| Packaging Details: | Wooden box packaging |
| Touch screen control: | YES |
| Product Name: | Strapping Band Winding Machine |
| Servo motor wiring: | YES |
| Strap Width: | 5-19mm |
| Package Weight: | 650kg |
| Adjustable tightness: | YES |
| Servo motor: | YES |
| Speed: | 220-350m/min |
| Company Info. |
| SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description:

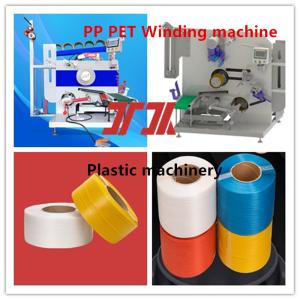

1.The automatic winding method is fully automatic operation, does
not require manual intervention, and improves production
efficiency. This PET/PP automatic winder is specially designed for
the packaging industry, ensuring that the PET/PP packaging tape
winding process is met and provides the desired results you need.
2.This automatic winding machine for PET/PP packaging is ideal for
industries requiring high quality PET/PP packaging, which can
quickly solve the winding problem. The servo motor ensures a smooth
and consistent winding process, reduces the risk of errors, and
ensures that your product packaging meets the highest standards.
Line speed: 200-300 m/min
PARAMETER TABLE
| Name | Automatic Winding Machine |
| Tape width | 5-19mm |
| Thickness | 0.4-1.2mm |
| Control mode | servo motor |
| Pressure | 4-7kgf |
| PLC control | YES |
| Paper tube | Ø200*190mm |
| Max weight | 20-350kg/roll |
| power single-phase | 220V |
| Weight | 700KG |
| Overall dimension | (L)1400mm*(W)1200mm*(H) 1850mm |

Performance description:
Strong adaptability---can handle PET tapes of different widths and thicknesses, adapt to a variety of production needs, with or without paper cores.
Energy-saving and environmental protection---adopt energy-saving technology to reduce energy consumption, low power consumption, fast speed, in line with environmental protection requirements.
Safe and reliable---equipped with multiple safety protection devices, automatic power-off protection, to ensure safe operation.
Finished PP tape:
Both sides are wrapped around the whole
Rolled flat
No overlap, no deformation

After-sales service:
1. Shelf life: 12 months
2. Consumable parts: spare parts are available
3. Support 24-hour online service.
4. Free system upgrade service.
5. Remote detection service.

|
