Name: Excavator Swing Motor EC240B VOE14500382 SA 114200520 For Excavator Parts
Brand: Belparts
Price: 1 USD

Product Details
Company Profile

Excavator Swing Motor EC240B VOE14500382 SA 1142-00520 For Excavator Parts

Excavator swing motor EC240B VOE14500382 SA 1142-00520 for excavator parts

Product Description

Appliion	Excavator
Part name	Swing Motor
Model	EC240B
Part number	VOE14500382 SA 1142-00520
Brand	volvo
Warranty	6 months
Payment term	T/T& LC &Paypal
Delivery Time	Within 3 days after receiving the payment
Packing	Standard shipping package

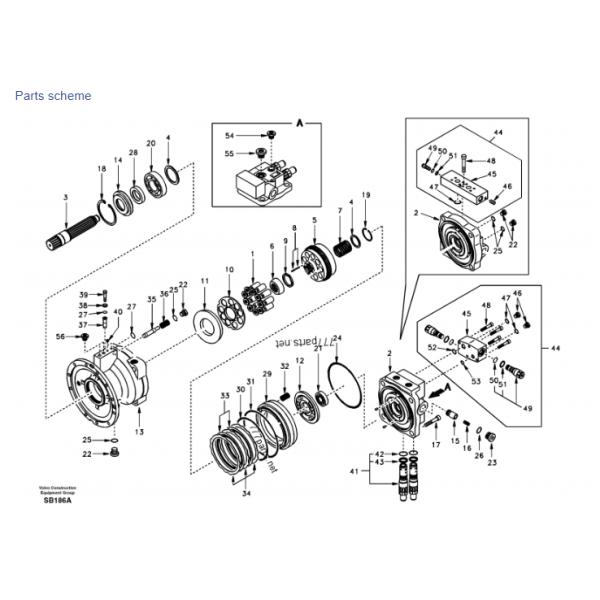

List of spare parts

#	Part No	Part Name	Qty.
	SA 1142-00520	Swing Motor SER NO 3001-3103	1
	VOE 14500382	Swing Motor SER NO 3104-	1
1	VOE 14500062	Piston	1
2	SA 8230-13560	Casing SER NO 3001-3103	1
	VOE 14509246	Casing SER NO 3104-	1
3	VOE 14500066	Shaft	1
4	SA 8230-13500	Spacer	1
5	SA 8230-13680	Cylinder	1
6	SA 8230-13700	Retainer	1
7	SA 8230-13460	Spring	1
8	SA 8230-26390	Bar	12
9	SA 8230-13490	Spacer	3
10	SA 8230-13630	Plate	1
11	SA 8230-13710	Plate	1
12	SA 8230-13750	Plate	1
13	SA 8230-13580	Casing	1
14	SA 8230-13540	Cover	1
15	SA 8230-14160	Plunger SER NO 3001-3103	1
	VOE 14501798	Plunger SER NO 3104-	2
16	SA 8230-14150	Spring SER NO 3001-3103	1
	VOE 14501799	Spring SER NO 3104-	2
17	SA 8230-25820	Bolt	4
18	SA 8230-25760	Ring	1
19	SA 8230-25740	Ring	1
20	SA 8230-26530	Roller Bearing	1
21	SA 8230-26600	Roller Bearing more	1
22	SA 8230-25640	Plug SER NO 3001-3103 more	4
	SA 8230-25640	Plug SER NO 3104- more	2
23	SA 8230-26730	Plug SER NO 3001-3103	2
	VOE 14501802	Plug SER NO 3104-	2
24	SA 8230-25551	O-ring	1
25	SA 9511-12011	O-ring SER NO 3001-3103 more	4
	SA 9511-12011	O-ring SER NO 3104- more	2
26	SA 9511-12028	O-ring SER NO 3001-3103 more	2
	SA 9511-12034	O-ring SER NO 3104-	2
27	SA 9511-12012	O-ring more	2
28	SA 8230-26871	Seal	1
29	SA 8220-10730	Piston	1
30	SA 8210-06281	O-ring	1
31	SA 8230-25560	O-ring	1
32	SA 8230-14040	Spring	12
33	SA 8230-13770	Plate	3
34	SA 8230-13720	Plate	4
35	SA 8230-13450	Slide	1
36	SA 8230-13480	Spring	1
37	VOE 14500067	Plunger	1
38	SA 8230-13550	Cover	1
39	SA 8230-25830	Bolt	2
40	SA 7242-11040	Plug more	3
41	VOE 14518517 Replace: SA 8230-27410	Relief valve more	2
42	SA 9511-22030	O-ring more	1
43	SA 9566-20300	Ring more	1
44	SA 8230-27390	Block SER NO 3001-3103	1
	SA 8230-27360	Block SER NO 3104-	1
45	SA 8230-27150	Casing SER NO 3001-3103	1
	SA 8230-29070	Casing SER NO 3104-	1
46	SA 8240-03270	Plug SER NO 3001-3103	6
	SA 8230-25640	Plug SER NO 3104- more	2
47	SA 9511-22030	O-ring SER NO 3001-3103 more	2
	SA 9511-12011	O-ring SER NO 3104- more	2
48	SA 8230-25870	Bolt SER NO 3001-3103 more	2
	SA 8240-03610	Screw SER NO 3104-	4
49	VOE 14500037	Valve	2
50	SA 9511-12020	O-ring more	1
51	SA 9566-10200	Ring	1
52	SA 9511-12012	O-ring more	2
53	SA 9511-12006	O-ring more	2
54	SA 8230-26930	Plug more	1
55	SA 8230-26920	Plug SER NO 3001-3103	1
	SA 8230-26910	Plug SER NO 3104-	1
56	SA 8230-33690	Plug more	2
100	SA 8148-10180	Seal SER NO 3001-3103	1

The excavator swing motor, as the core actuator of hydraulic systems, directly determines equipment performance through its technical specifications. Taking the mainstream swash plate axial piston motor as an example, its operating pressure range typically spans 25-35MPa with displacement specifications covering 80-500cc/r, capable of delivering up to 3000Nm torque. The integrated cross roller bearing design enables axial load capacity exceeding 50kN, while achieving stepless rotation speed regulation from 0-12rpm. Utilizing a 9-piston symmetrical configuration, volumetric efficiency reaches over 97%, complemented by dual-channel flushing valves maintaining oil temperature below 65℃. Latest models incorporate pressure compensators and LUDV control systems, enabling demand-based flow distribution with 18% energy consumption reduction.
