| Categories | Ethernet Slip Ring |
|---|---|
| Brand Name: | CENO |
| Model Number: | ECN000-03P4-06P-08S-04EM |
| Certification: | CE,RoHS,ISO9001,UL |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Delivery Time: | 1 week |
| Packaging Details: | Carton/As request |
| Current & Circuits: | 9 * Electric power; 2 * signal; 4 * Ethernet |
| Rating Voltage: | 220VAC/VDC |
| Dielectric strength: | ≥1000VAC@50Hz; ≥500VAC@50Hz |
| Isolation resistance: | 500MΩ@500VDC; 100MΩ@100VDC |
| Contact resistance: | 30mΩ (50rpm) |
| Temperature: | -20°C~+60°C |
| Working humidity: | 60%RH |
| IP protection grade: | IP51 |
| Operating speed: | 0~300rpm |
| External Diameter: | Ø 86mm |
| Contact Material: | Precious Metal / Gold to gold |
| Housing Material: | Aluminum Alloy |
| Lead wire size & length: | As customized |
| Company Info. |
| CENO Electronics Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

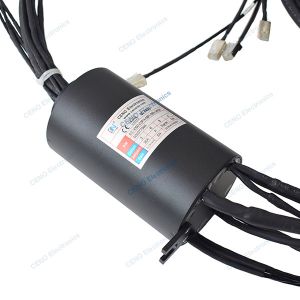

Ethernet slip ring with electric power signal and Ethernet for industrial system
ECN000-03P4-06P-08S-04EM is CENO new customized Ethernet signal slip ring with circuits electric power and Ethernet / RS422 signals for industry automation system. Industry Ethernet signal is an Ethernet technology used in the field of industrial control system. It’s technically compatible with commercial Ethernet, but the actual products and applications are completely different, Industrial Ethernet features high quality material, strength and timeliness should meet the needs of industrial sites.
Features
Applications
Optional
Specification
| ECN000-03P4-06P-08S-04EM | Specification |
| Current & Circuits | 9 circuits * Electric power; 2 * signal; 4 * Ethernet signal |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥500VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø86mm |
| Contact material | Precious Metal / gold to gold |
| Housing material | Aluminum alloy |
| Lead wire size | As customized |
| Lead wire length | As customized |
Outline drawing

| Application
 |
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
|   |
