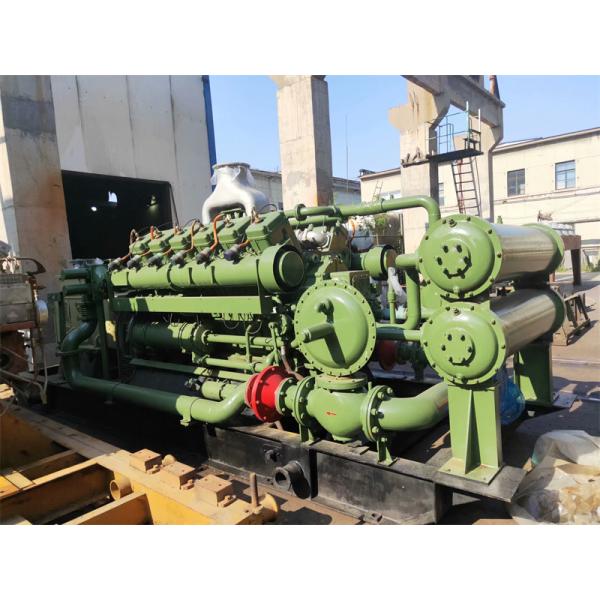

Shengdong T12V190 500KW gas generator in KZ spark plug,sensor and other parts

1. Installation Type

• Model: 500GF1-PT

• Engine Model: T12V190ZL-2

• Generator Model: 1FC6 455-6LA42

• Control Panel Model: FCP1-ESM3-500 T

2. Technical Specifications

• Rated Power: 500 kW

• Rated Current: 902 A

• Rated Voltage: 400 V

• Rated Power Factor: 0.8

• Rated Frequency: 50 Hz

• Starting Method: Electric start, 24V DC

• Voltage Regulation Mode: Automatic

• Speed Regulation Mode: Electronic

• Excitation Mode: Brushless

• Connection Type: Three-phase, four-wire system

• Coupling Mode: Flexible coupling connection

• Cooling System: Circulating water with fan-cooled tank

• Overall Dimensions (L×W×H): 5433 × 1970 × 2700 mm

• Unit Weight: 10,750 kg

3. Application

• Purpose: Power generation

• Field of Use: Associated petroleum gas (APG) utilization

4. Container Dimensions and Weight

• External Dimensions: 8930 × 2440 × 2900 mm

• Weight: 16,000 kg

5. Packing List

• Item: Gas Engine Generator Set (Container Type)

• Quantity: 2 sets

• Note: Includes inspection

6. Inspection and Compliance

• 6.1 The equipment complies with the standards JB/T 9583.1-1999 (General Technical Specifications for Gas Fuel Generator Sets) and Q/SDL 32002-2009 (Requirements for 190 Series Gas Generator Sets), and has successfully passed the factory acceptance test.

• 6.2 Manufacturing Date: March 2012 (To be filled in and stamped upon quality control).

  • Equipment Type Codes: 1203013; 1203014

7. Warranty

• 7.1 Under proper conditions of operation, transportation, installation, and storage (referencing applicable national or industry standards), the warranty period is 1 year from the date of delivery.
