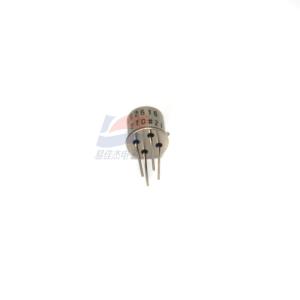

Gas Sensor TGS2616-C00 Hydrogen Sensor High Selectivity To Hydrogen Small Size And Low Power Consumption For Transformer Oil Maintenance Portable Gas Detectors

The sensing element is comprised of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater, and it is housed in a standard TO-5 package.

TGS2616-C00 has a newly developed sensing element which reduces the influence of interference gases such as alcohol, resulting in highly selective response to hydrogen.

1.Main spec.:
Range:10-3000ppm

Circuit voltage:5.0±0.2V

Heater voltage:5.0±0.2V

Heater power consumption:280mW

2. Main features:

* High selectivity to hydrogen

* Small size and low power consumption

* Uses simple electrical circuit

3. Applications:

* Hydrogen detection for:

- transformer oil maintenance

- steel plant safety, etc.

* Portable gas detectors

* Leak detection for gas appliances

* Hydrogen leak detectors for fuel cells
