| Categories | Hot Sales Products |
|---|---|
| Model Number: | PFC |
| Type: | common mode inductor, PFC Inductor |
| Place of Origin: | Guangdong, China |
| Brand Name: | Chipsen |
| D/C: | 0.01A--500A |
| Application: | Power Supplies |
| Brand: | Chipsen |
| Supplier Type: | ODM OEM, Manufacturer |
| Cross Reference: | / |
| Tolerance: | 5-30% |
| Operating Temperature: | -40℃ to 85℃ |
| Rated Power: | customized |
| Package Type: | unencapsulated |
| Resistance Tolerance: | it depends |
| Temperature Coefficient: | optional |
| Resistance: | it depends |
| Media Available: | / |
| Frequency - Self Resonant: | 1k-10MHz |
| Features: | high performance |
| Height - Seated (max): | customized |
| Function: | filter |
| Inductance: | 1nH-1H |
| Q @ Freq: | it depends |
| Mounting Type: | THD |
| Package / Case: | without casing |
| Size / Dimension: | customized |
| Heigh: | customized |
| Number of Coils: | customized |
| Inductance - Connected In Parallel: | 1nH-1H |
| Inductance - Connected In Series: | 1nH-1H |
| Current Rating - Parallel: | 0.01A--500A |
| Current Saturation - Parallel: | 0.01A--500A |
| Current Saturation - Series: | 0.01A--500A |
| DC Resistance (DCR) - Parallel: | Customized |
| DC Resistance (DCR) - Series: | Customized |
| Shielding: | unshielded |
| Material - Core: | iron powder core |
| Current Rating (amps): | customized |
| Current - Saturation: | customized |
| DC Resistance (DCR): | Customized |

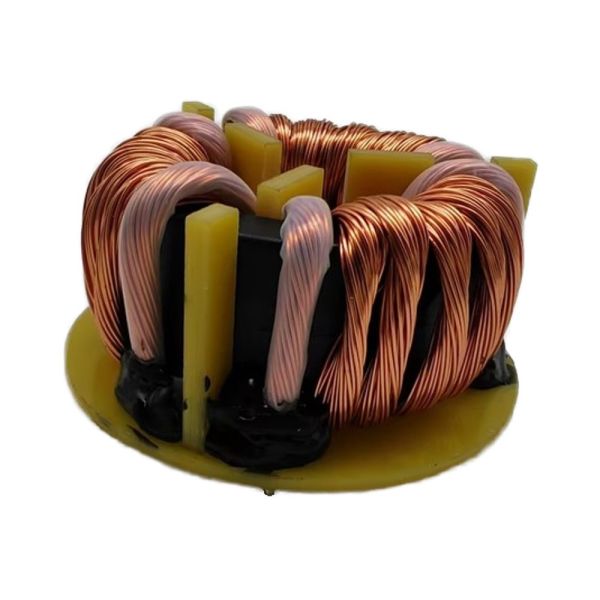

| Product Name: | Common Mode Filter Inductor |
| Output Voltage: | 5V 7V 12V 24V 100V 220V |
| Certification: | ISO9001:2015, IATF16949:2016, U/L, RoHS, CQC |
| MOQ: | 100 Pcs |
| Warranty: | 3 years |
| R&D Cost: | Free design service |
| Electronic Solution: | One-stop Solution |
| ODM OEM: | Acceptable |
| MOQ: | 100 pieces |
| Price: | CN¥67.52/pieces 100-999 pieces |
Model No. | PFC Inductor | |
Mounting Method | THD | |
Packaging | Bag/ Tape/ Reel | |
Test Frequency Range | 1KHz-10MHz | |
Inductance Range | 1nH-1H | |
Rated Current | 0.01A-500A | |
Saturated Current | 0.01A-500A | |
Tolerance at Current Loaded | 5% to 20% | |
Storage Temperature | -25℃ to +85℃ | |
Working Temperature | -40℃ to +125℃ | |
Storage Humidity | 30% to 70% | |
Certifications | ISO9001:2015, ISO14001:2015, IATF16949:2016, UL/cUL, RoHS, REACH | |
Designing Information | operating frequency | |
Rated Inductance | ||
Rated Current | ||
Saturated Current | ||
mounting dimensions | ||
Temperature rising range | ||
product application |
|
