| Categories | 2960 Switch |
|---|---|
| Brand Name: | Cisco |
| Model Number: | WS-C2960X-48LPS-L |
| Place of Origin: | Beijing, China |
| Packaging Details: | Original brand new box |
| Supply Ability: | 40 Piece/Pieces per Day |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Delivery Time: | 2-3 working days |
| Part Number: | WS-C2960X-48LPS-L |
| Ports: | 48 x 10/100/1000 ports |
| Uplink Interfaces: | 4 x 1G SFP |
| Switch Capacity: | 216Gbps |
| Flash Memory: | 128MB |
| Private Mold: | NO |
| Dimensions: | 44.5 cm x 36.8 cm x 4.5 cm |
| Company Info. |
| Beijing Lianmai Tongchuang Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

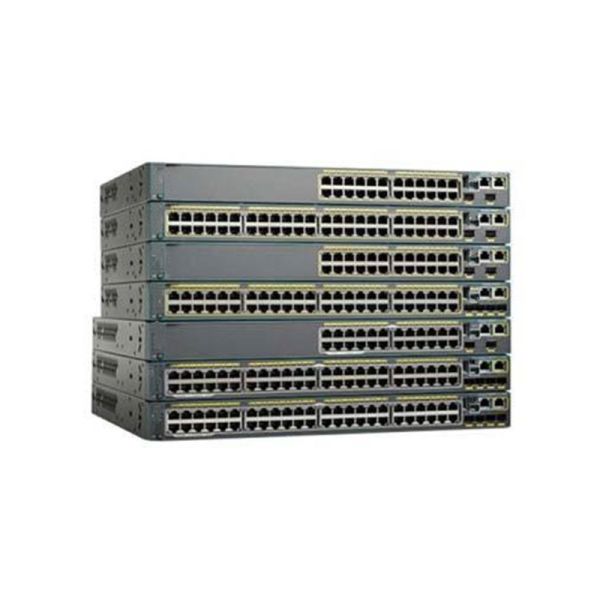

Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 370W of PoE budget for 12 ports with 30W per port, or 24 ports with 15.4W per port or 48 ports with 7.4W per port.
Specifications
Product Code | WS-C2960X-48LPS-L |
Enclosure Type | Rack-mountable - 1U |
Feature Set | LAN Base |
Uplink Interfaces | 4 x 1G SFP |
Ports | 48 x 10/100/1000 Ethernet Gigabit ports |
Available PoE Power | 370W |
Maximum stacking number | 8 |
Stack bandwidth | 80G |
Forwarding Performance | 107.1Mpps |
Switching Bandwidth | 216Gbps |
RAM | 512 MB |
Flash Memory | 128 MB |
Dimensions | 44.5 cm x 36.8 cm x 4.5 cm |
Package Weight | 10.65 Kg |
Expansion / Connectivity
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.49KVA |
System software / license
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | ●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
| Network security | ●SSH, SSL and SCP ●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle |
| Management and Troubleshooting | ●Auto-MDOX ●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB |
Some accessories of WS-C2960X-48LPS-L
| Models | Description |
| C2960X-STACK | Catalyst 2960-X FlexStack Plus Stacking Module |
| CAB-STK-E-0.5M | Cisco FlexStack Stacking Cables |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| GLC-SX-MM D | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
|
