| Categories | Automatic Soldering Machine |
|---|---|
| Brand Name: | ZT |
| Model Number: | ZT-HXJ441-R |
| Certification: | CE, ISO, RoHS |
| Place of Origin: | China |
| MOQ: | 1 SET |
| Price: | USD 3100-3500/SET |
| Payment Terms: | T/T |
| Supply Ability: | 100SET/Month |
| Delivery Time: | 15-30 Day |
| Packaging Details: | Wooden box |

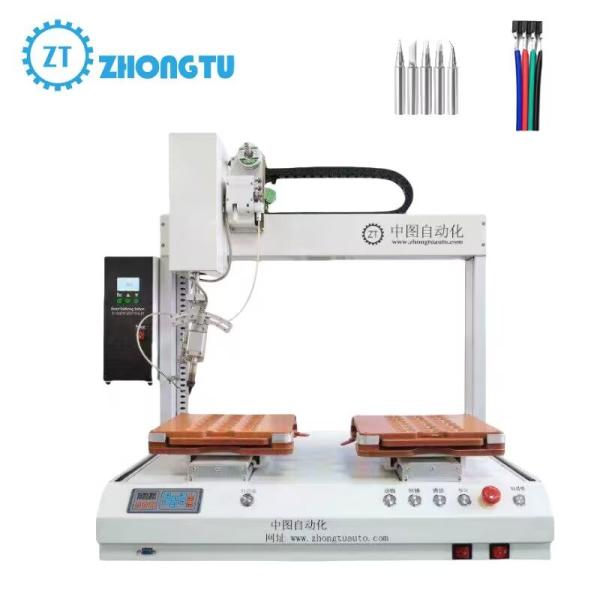

| Product Name: | Automatic Soldering Machine |
| Core Components: | PLC, Motor |
| Voltage: | AC 110~230V |
| Current: | 5A |
| Transport Package: | Wooden Box |
| Specification: | 80*78*85cm |
| Trademark: | ZT |
| Origin: | Shenzhen, Guangdong, China |
| Solder Wire Diameter: | 0.5, 0.6, 0.8, 1.0, 1.2mm |
| Model: | S5331R |
| Editing Mode: | Teaching Pendant |
| Xyz Range: | X400*Y:400 *Z100mm |
| Solder Robert: | soldering robert for PCB |
| Soldering Iron Tip Material: | Copper |
| Color: | White |
| Solder Time: | 1.0-1.5s/point |
| Repeatability Accuracy: | ±0.02mm |
| Soldering Iron Temperature Range: | 200-480℃ |
| Air Source: | 0.4-0.6MPA |
| Soldering Iron Holder: | Included |
| Electronic Parts: | electronic automatic solder machine |
| Power Consumption: | 100W |
| Company Info. |
| Shenzhen Zhongtu Automation Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Descrition
An automatic soldering machine mainly consists of a control unit, a soldering gun or soldering iron system, a wire feeder mechanism, and a motion control system. The control unit is like the "brain" of the machine, enabling users to set parameters and control the entire soldering process. The soldering gun or soldering iron system provides the necessary heat for soldering, while the wire feeder mechanism supplies the solder wire precisely. The motion control system ensures the accurate movement of the soldering head according to the set path.
Application
Automatic soldering machines are widely used in the electronics manufacturing industry, such as in the production of printed circuit boards (PCBs), electronic components, and household appliances. They are also applied in automotive electronics, aerospace, and other fields where high-quality soldering is required.
Product Parameter
| Name: | Automatic Soldering Robot | Place of Origin: | ShenZhen, China | |
| Applicable Industries: | Manufacturing Plant, SMT , DIP | Key Selling Points: | Automatic | |
| Video outgoing-inspection: | Provided | Weight (KG): | 65Kg | |
| Marketing Type: | New Product 2024 | Voltage: | 220/110V 50~60Hz | |
| Warranty period: | 1 Yea | Dimensions: | 850*750*850mm | |
| Warranty of core components: | 3 Years | Solder Wire: | 0.6~1.5mm solder wire | |
| Core Components: | PLC | Temperature Accuracy | ±3° | |
| Power: | 680W | Solder Feeding Speed | 1~50mm/s | |
| Current: | 5A | Repeate Accuracy | ±0.02mm | |
| Model | ZT-HXJ041R | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | Fixture Customization |
| Solder Power | 200W | 200/400w 600W | 200/400W | 200/400/600W | Need |
| Heating Temperature Range | 0-550ºC | ||||
| Machine Axis Number | 4axis | 4axis | 4axis | 5axis | Max moving speed |
| X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s |
| Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s |
| Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s |
| R Axis | 360° | 360° | 0 | 360° | ±0.05° Error |
| Temperature Errors | ±2° | ||||
| Tin Wire Diameter | φ0.6mm-1.5mm | ||||
| Teaching File Capacity | 256MB, up to 999 files, single file up to 1000 points | ||||
| Air Pressure | 4-5kg/cm² | ||||
| Weight(Kg) | 58Kg | 68Kg | 75Kg | 85Kg | Customized |
| Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order |
Detail Photos
Our advantage
Our Services
| Pre-Sale | In Sale | After Sale |
| 1.Product Introduction, 2.Technical Communication, 3.Remote consulting service. | 1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers. | 1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years. |
1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
|
