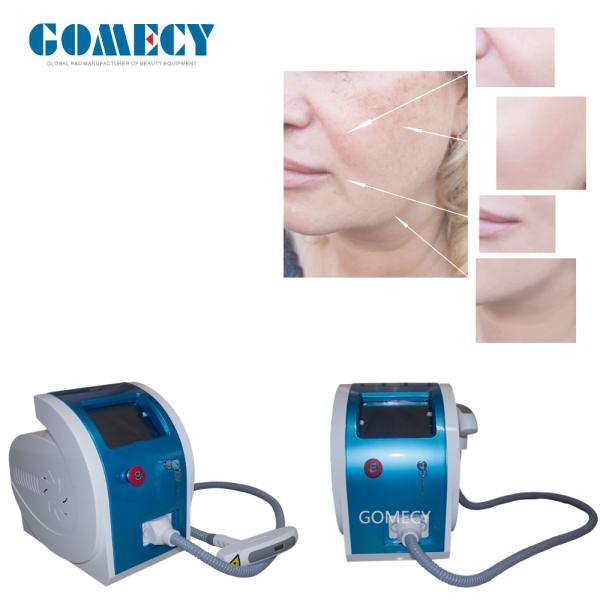

Picosecond Laser Vertical Tattoo Removal Laser Machine Nd Yag Q Switched Pico Second Laser Pen Acne Scar Removal

1. Technology Principle

The GMS Q-Switched Nd:YAG Laser is designed for high-performance pigment removal and skin rejuvenation. With ultra-short pulse durations of 2-6ns, the laser generates strong photoacoustic waves that efficiently shatter pigment particles while preserving surrounding tissues.

• 532nm wavelength is effective for treating superficial epidermal pigment lesions such as sunspots and freckles.

• 1064nm wavelength penetrates deeper to target dermal pigment lesions, including melasma, birthmarks, and tattoos.

Featuring both Genesis mode for skin rejuvenation and PTP mode for gentle toning, this system offers versatile treatment options suitable for a range of dermatological needs.

2. Application Range

• Epidermal pigment removal (532nm)

• Dermal pigment removal (1064nm)

• Tattoo removal (all color types)

• Skin rejuvenation and pore reduction

• Skin toning and tightening (Genesis mode)

• Vascular lesion treatment

• Collagen stimulation

3. Product Specifications

Specification	Value
Laser Type	Electro-optical Q-Switched Nd:YAG
Pulse Width	2-6ns
Pulse Energy	≤1000mj @ 1064nm / ≤500mj @ 532nm
Genesis Mode Energy	1300mj
PTP Mode	50% energy increase (dual pulse)
Repetition Rate	Up to 10Hz
Spot Size	2-10mm adjustable
Cooling System	Closed water circulation + air cooling
Electrical Requirements	100–240V, 50–60Hz

4. Product Highlights

• Advanced HoneyComb handpiece ensures precise, even energy delivery

• Genesis mode stimulates collagen, improves skin texture and firmness

• High-energy pigment clearance for both shallow and deep-seated pigmentations

• Adjustable spot sizes and repetition rates for customizable treatment

• Reliable cooling system for patient comfort and continuous operation
