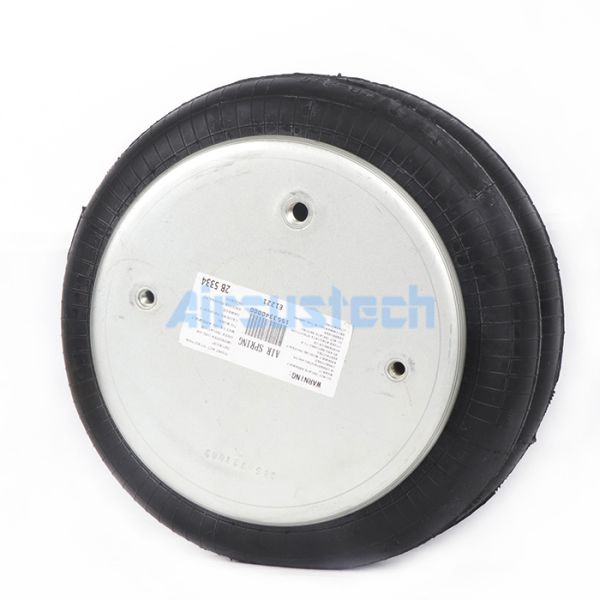

Imperial Suspension Air Spring for Freightliner 16-10769-000 Goodyear 2B12-309

Imperial Suspension Air Spring for Freightliner 16-10769-000 Goodyear 2B12-309

Product Description

AIRSUSTECH air springs are available in single, double, or triple bellows designs and perform a wide range of functions in different suspensions and applications. AIRSUSTECH air springs can be found in numerous trucks, trailers, and industrial equipment. These air springs are characterized by their ability to perform linear or angular movements while requiring less space than conventional cylinders. They are highly adaptable and perform a wide range of functions in pressing, clamping, rolling, conveying, lifting, and packaging machines. In addition, they can act as shock absorbers, effectively reducing the damaging effects of vibration.

OEM Cross References

Freightliner 16-10769-000

Firestone W01-358-7400 / 22
Contitech FD 330-22 313
Goodyear 2B12-309 / 316
Goodyear 578-92-3-309
Triangle 6316 / 4313
Fab Tek 04-0080
GMC 693230
Granning 2726
Hendrickson S1013
Neway 90557016
R & S Truck & Body 1027519
Watson & chalin As0003
Ridewell 1003587400C
Dayton 354700
Volvo 3130488
Scania 670199

Product Detailed Data

Important Tips to Remember When Installing New Equipment

1. Inspect the balance valve, linkage and transmission parts for wear and damage and replace damaged parts if necessary.
2. Check the shock absorbers for leaks and perform a shock test. Faulty shock absorbers must be replaced.
3. Once the air tube is disconnected, inspect it for cracks or other damage along its entire length. Replace worn parts.
4. With the air spring removed, the other parts of the air suspension become more accessible. Inspect the frame hangers, trailing arm bushings, torsion bars, trailing arms and air spring brackets for wear or damage. Parts can also be replaced if necessary.
5. Inspect the outer spring bellows air bearing for external damage, deformation, sharp edges and proper connections.
6. Before installing a new unit, clean the air spring mounting plates to ensure they are properly installed in the suspension.
7. Always use new connecting bolts for installation and pay attention to the tightening torque. Never use old bolts as they may fall off.
8. Check the balance valve connection to ensure it is working properly. Under load, the linkage must move from the neutral position to the input position. This allows air to enter the spring, which returns the lever to the neutral position. This allows air to enter the spring, which returns the lever to the neutral position. This opens the bleed valve, allowing air to escape until the lever returns to the neutral position. Then check the ride level.

Factory Workshop

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
