| Categories | Huawei Switch |
|---|---|
| Brand Name: | Huawei |
| Model Number: | S6750-H36C |
| Port Type: | 10/100/1000BASE-T |
| Forwarding Performance: | 130.9 Mpps |
| Packet Buffer Size: | 4MB |
| Flash Memory: | 512 MB |
| Power Frequency: | 50/60 Hz |
| Forwarding Rate: | 41.7 Mpps |
| Subtype: | Gigabit Ethernet Ports |
| Mac Address Table Size: | 16K |
| Storage Temperature: | -40°C to 70°C |
| Poe: | Supports PoE+ |
| Warranty: | 1 year limited warranty |
| Poe Power Budget: | 370 W |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Stackable: | Yes/No |
| Company Info. |
| Shanghai Xinben Information Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

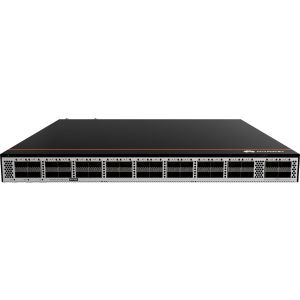

Huawei S6750-H36C Switch : High-Performance 10G/25G Ports ,
AI-Optimized Networking & FlexE Support For Data Centers
The Huawei S6750-H36C Switch is a next-generation data center and enterprise-grade Ethernet switch designed for high-speed, low-latency, and AI-driven networking. Featuring high-density 10G/25G ports, intelligent traffic optimization, and FlexE (Flexible Ethernet) technology, it delivers scalable, reliable, and future-proof connectivity for modern cloud, AI, and storage workloads.
✔ High-Performance Networking – Supports 10G/25G/100G uplinks with
wire-speed forwarding, ensuring ultra-low latency for AI/ML, big
data, and distributed storage applications.
✔ AI-Optimized Traffic Management – Huawei’s iLossless algorithm
reduces packet drops to near-zero, improving RoCEv2 and
NVMe-over-Fabrics performance.
✔ FlexE & SRv6 Support – Enables network slicing for multi-tenant
clouds and simplifies WAN integration with Segment Routing over
IPv6.
✔ Enterprise-Grade Reliability – 99.999% uptime with redundant
power supplies, ERPS (Ethernet Ring Protection), and sub-50ms
failover.
✔ Energy-Efficient Design – 30% lower power consumption with
Huawei’s Energy Efficient Ethernet (EEE) and smart fan control.
| Category | Specification |
|---|---|
| Port Configuration | 36x 10G/25G SFP+ ports + 12x 100G QSFP28 uplinks (varies by model) |
| Forwarding Capacity | Up to 2.4 Tbps |
| Switching Capacity | Up to 5.76 Tbps |
| Latency | <1μs (cut-through) |
| Power Supply | Dual 1+1 redundant (AC/DC options) |
| Cooling | Front-to-back or back-to-front airflow |
| Security | MACsec, ACLs, Anti-DDoS, IEEE 802.1X |
| Management | NetConf/YANG, Telemetry, iMaster NCE SDN integration |
Cloud Data Centers – High-density server access with lossless Ethernet.
Enterprise Core Networks – FlexE-based SLA guarantees for VoIP, video, and critical apps.
AI/ML Clusters – Optimized for GPU/CPU traffic with RoCE support.
Compared to competitors like Cisco Nexus 3000 or H3C S6850, the S6750-H36C offers better TCO (Total Cost of Ownership) with open SDN compatibility, AI-powered optimization, and carrier-class reliability.
|
