UL 2556 VW-1 Combustion Test Chamber For Cable AC220V 50/60Hz

UL 2556 VW-1 Horizontal And Vertical Combustion Tester For Cable

Product Description:

The VW-1 Horizontal and Vertical Flame Tester for Wires and Cables is a professional device designed strictly in accordance with the UL2556-2013 standard and is widely used for combustion tests in the wire and cable industry. The device is capable of performing both VW-1 and FT-2 combustion tests to ensure that the product meets international safety standards. Its sealed test chamber design (4.32 cubic meters) ensures the stability and accuracy of the test environment and is suitable for the combustion performance evaluation of various types of wires and cables.

Standards:

• UL2556 - 2013

Technical Parameters:

• Test Chamber: It adopts electrostatic spray paint on the outside and electrostatic roast black paint inside, which is rustproof and has a great-looking
• There’s a fume extractor on the top so that the waste gas can be released when the test is completed. There are 2 air intakes on the lower of both sides, and it’s equipped with a set of pneumatic seal operation device
• There’s an observing window in the front, which is convenient for observation
• It adopts anti-smoke and anti-mist round Lamps inside
• 7" Color Touch Screen and PLC Control
• Flame Time Setting: 0 ~ 999s (adjustable)
• Stop Flame Time Setting: 0 ~ 999s (adjustable)
• Continuous Flame Time Setting: 0 ~ 999s (adjustable)
• Thermal sensor uses electrolytic copper with extremely high conductivity
• Equipped with imported thermocouple with φ0.5K stainless steel sheath
• The portable intelligent temperature controller is matched with the K-type thermocouple, and the reading can reach above 1000℃
• Combustion blowtorch imported from the USA HUMBOLDT meets the requirements of ASTM D 5025-99. Standard Power: 500W; Angle: 20°

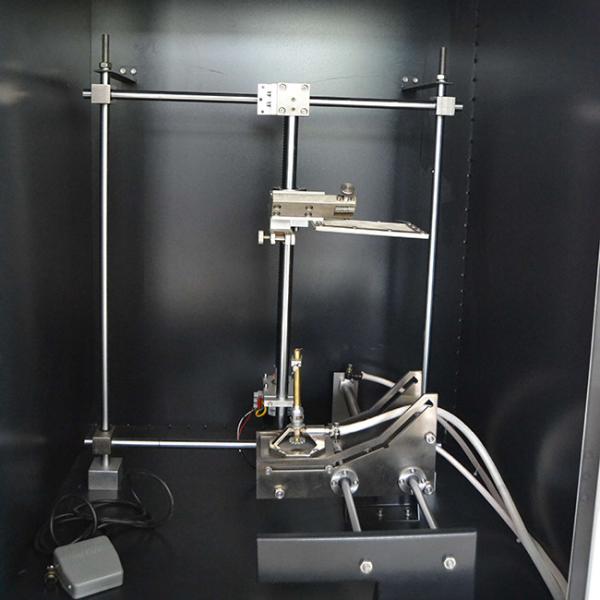

• Test Support Frame: VW-1 and FT2 Combustion test support frame
• U-tube Pressure Gauge: 1 (Dwyer, USA)
• Flowmeter: high-precision flowmeter 0.1～1.0L/Min, level 2 accuracy
• Equipped with a mini printer

Specification:

Since 2008, GOLD has developed 70 kinds of fire testing instruments and served many industries such as building materials, aviation, rails, IMO, wire & cable, safety protection, and so on.

Quality and Certification:
We always adhere to a strict quality control system, and all products comply with international standards (such as ISO, IEC, ASTM, etc.). We provide customers with technical support and maintenance services for equipment to ensure the long-term reliability and accuracy of the equipment.

Customer Support:
We provide customers with comprehensive technical support and services, including equipment operation training, technical consulting and after-sales service, to ensure that customers can make full use of the equipment and improve test efficiency and accuracy.

Vision and Mission:
Our vision is to become a leader in the field of global fire test equipment, and provide customers with the most reliable fire safety testing solutions through continuous innovation and high-quality services. Our mission is to help customers improve product safety performance, ensure the safety of personnel and property, and promote sustainable development of the industry.
