Graphite-plugged CuAl10Ni5Fe5 aluminum bronze bushings are a type
of copper alloy bushings that feature graphite insertion. This
material combination offers excellent wear resistance, high
strength, and good corrosion resistance, making it suitable for
various industrial applications. The graphite insertion helps to
reduce friction and wear, while the CuAl10Ni5Fe5 aluminum bronze
alloy provides excellent mechanical properties. These bushings are
commonly used in high-load and high-speed applications where
durability and performance are critical.
CuAl10Ni5Fe5 Aluminum Bronze Bushing,
| Material | CuZn25Al5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 |
|---|
| JDB650 series | 650 | 650S1 | 650S2 | 650S3 | 650S5 |
| Cu | 65 | 85 | 80 | 88 | 80 |
| Sn | | 5 | | 12 | 10 |
| Pb | | 5 | | | 10 |
| Zn | 25 | 5 | | | |
| Ni | | | | | |
| AI | 6 | | 10 | | |
| Fe | | | 5 | | |
| Mn | 4 | | | | |
| Density | 8 | 8.8 | 7.6 | 8.8 | 8.9 |
| Hardness HB | ＞210 | ＞70 | ＞150 | ＞80 | ＞250 |
| Pullable force N/mm2 | ＞750 | ＞200 | ＞500 | ＞260 | ＞800 |
| Elongation % | ＞12 | ＞15 | ＞10 | ＞8 | ＞8 |
| expansion Coefficient | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
| Friction coef(μ) | 0.03~0.20 | 0.03~0.18 | 0.03~0.20 | 0.03~0.18 | 0.03~0.20 |
| Thermal conductivity | 60W(m·k)-1 | 60W(m·k)-1 | 60W(m·k)-1 | 60W(m·k)-1 | 60W(m·k)-1 |
| Working temperature | -40℃~+300℃ | -40℃~+400℃ | -40℃~+400℃ | -40℃~+400℃ | -40℃~+300℃ |
| Max Load Capacity N/mm2 | 100 | 60 | 50 | 70 | 150 |
| Max Sliding Speed m/min | 15 | 10 | 20 | 10 | 10 |
| Max PV Value Limit N/mm2·m/min | 200 | 60 | 60 | 80 | 200 |
Cast Bronze Machining Parts Application
Your specialist for copper and copper alloys bearings. Crane
Bushings
Parts for Piston Pump & Gear Pump
We are focused on the research and development for hydraulic piston
bronze bushings for pump and gear pump industry parts according to
customer drawings. Such as Bushing driving gear, cast bronze
bearing, pressure plate, copper bushing, thrust plate for gear pump
bushes.
Bushing/Sleeve for Cylinder Block
Ship
Ships: Propellers, propeller caps, worm gear, marine copper
flanges, copper shaft rods, copper sleeves,bushings
Construction machinery: Rock drilling nuts, copper sleeve drill
handle, wear-resistant sleeve for connecting parts
Bushing driving gear CuAl10Fe5Ni5, cast bronze bushing CuAl9Fe3
Or Graphite Plugged Bronze Bushings
Symbol:CuAl10Fe5Ni5-C
Number:CC333G
Category:EN Casting Copper Alloy Bushings
Type:Cast bronze bushings
| Chemical Composition mass/% |
|---|
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| 76.0-83.0 | 0.1 | 8.5-10.5 | 4.0-5.5 | 3 | 4.0-6.0 | 0.03 | 0.1 | - | 0.5 |
| Mechanical properties |
|---|
| Tensile strength Mpa(Min) | Yield strength MPa(Min) | Elongation % | Brinell hardness(HB) |
| 650 | 280 | 13 | 150 |
Note:
1,In Chemical Composition, Single values represent maximums.
2,Mechanical performance of hardness value is only for reference
VIIPLUS is a growing manufacturer of graphite Plugged Bushings products tailored to meet the needs of various industry
requirements with a primary focus within the sliding bearings parts
oil and gas industry.
Continuous Cast & Centrifugal Cast Bearings Meet Astm, Sae And
Other Standards C86300 Manganese Bronze Graphite Bronze Bushing Made To Order From China. Shoulder Bushings Solid bronze bushing,
high-compressed with evenly applied lubricant, maintenance-free.

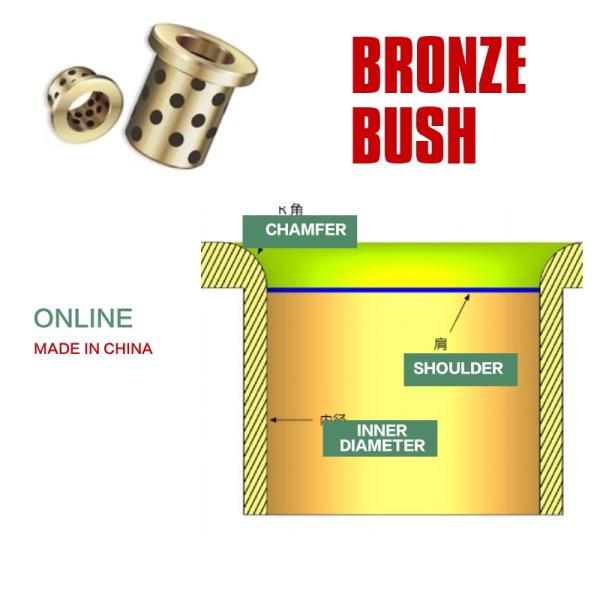

There is no "shoulder" phenomenon in the inner hole of our
company's flange guide sleeve bushings; Since the R Angle and inner
diameter of the inner hole are processed in two processes, a
shoulder will be produced at the junction of the two processes,
which will affect the service life of the product. Moreover, if the
shoulder is too large, some copper materials of the shoulder will
fall off due to the extrusion of the guide column.
Bronze with smoothly dispersed graphite incorporated in the matrix
Shoulderless Guide Groove Sleeve Bush slides, cams Can be Axially
Secured
Metric guide bronze bushings are precision-made of high-quality bronze brass, manganese bronze, aluminum bronze (C863,C954,C932...), and
hardened and finish-ground to close tolerances. VIIPLUS
manufactures bushings made to order from china Bronze guide bush
has no shoulder, sleeve bushing making is suitable for use when
there is no supplementary mold plate for axially securing the bush
or if the plate in which the bush sits makes an additional
demolding movement, as in the case of molds with stripper
plates.The guide bush also comes with a corresponding securing
groove that helps ensure precise guidance in the mold.
Tolerance Bushings Details
Housing ØH7
Bushing inner-Ø after mountingPlease consult our sales engineers,
standard delivered tolerance: r6 or E7
Shaft tolerance based on customer’s requirement
The customized bushing features DIN metric measurements to
accommodate increased demand from globe. The metric-sized bushing
parts include bronze-plated wear plates; self-lubricating bushing;
thrust washer; and bronze-plated shoulder bushings, ejection
bushings, and self-lubricating guided-ejection bushings.
The bronze bushings, which also feature a durable wear surface for
high-production molds, are said to be easy to machine and can be
shaped to virtually any configuration, requiring no special tools.
The wear plates are manufactured with a durable surface for
bronze-plated molds that require slides, cams or flat surfaces
where frictional wear is a factor. The bronze bushings are made of precision-ground bronze with oil grooves and a true bushing
surface that extends their full length. They are said to perform
smoother and longer than plain bronze, as the lubricant is
distributed throughout the bearing surface by the figure-eight oil
groove system.
Oil Grooves Type For Cast Bronze Bushings
Double Loop and Double Figure Eight recommended for grease only.
Made-To-Order Cast Bronze Sleeve Bearings
Oil & Grease Groove Bronze Bushings & Flanged
Groove Type :Single Loop Figure Eight Straight & Circular Double
Loop Double Figure Eight Half Figure Eight Straight Circular
Note: In order to form a more perfect oil film between the bearing
& shaft, we recommend a V-shaped groove whenever the design
permits, as it allows full flow of the lubricant across the bearing
surface.
Copper Alloy Bushings Technical Parameters
| Material Composition and Properties |
|---|
| Grade | BRONZE | BRONZE | BRONZE BUSHINGS | BURONZE BUSHING |
| Material | CuZn25Al5Mn3Fe3 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 |
| Density | 8 | 8.9 | 7.8 | 8.9 |
| Hardness HB | ＞210 | ＞70 | ＞150 | ＞95 |
| Tensile strength N/mm² | ＞750 | ＞200 | ＞600 | ＞260 |
| Yield strength N/mm² | ＞450 | ＞90 | ＞260 | ＞150 |
| Elongation % | ＞12 | ＞25 | ＞10 | ＞8 |
| Coefficient of linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ |
| Max.temp ℃ | -40~+300 | -40~+400 | -40~+400 | -40~+400 |
| Max.load N/mm² | 100 | 60 | 50 | 70 |
| Max.speed (Dry) m/min | 15 | 10 | 20 | 10 |
| Max.PV(Lubrication) N/mm² *m/min | 200 | 60 | 60 | 80 |
| Compression deformation 300N/mm² | ＜0.01mm | ＜0.05mm | ＜0.04mm | ＜0.05mm |
Available Sliding Bearings Form:
Plain cast bronze sleeve bushings, grooved cast bronze sleeve
bushings, flanged cast bronze bushings, thrust washer, cast bronze
bearings, Oversized Bearings, Bushings Size: Our standard bearing
line features over different dimension & inch size bushings that
are carried in stock.
Made-To-Order Cast Bronze Sleeve Bearings for an Oil/Grease
Application
VIIPLUS INTERNATIONAL according to different customer requirements, according to DIN,
BS, EN (DIN/EN), SS, BS, UNS, SAE, and China GB standard production
of all kinds of bronze, brass bushing, plate, and rod products. All
products are made of electrolytic copper by centrifugal casting,
continuous casting, and extrusion sliding bearings.
Bearing solutions
Our company specializes in providing you with: oil-free bearing,
sliding bearing, self-lubricating bearing, composite bearing; in
Construction Machinery, The automotive industry, Electrical
appliances, Hydraulic and pneumatic, Mold, Agricultural Machinery,
water conservation, Bridge.
