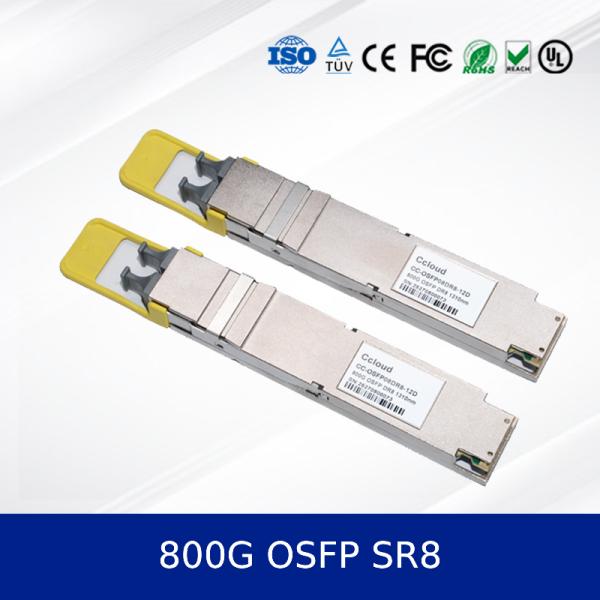

800G OSFP SR8 Optical Transceiver Module High-Speed, Low Power, MSA Compliant

800G OSFP SR8 Optical Transceiver Module High-Speed, Low Power, MSA Compliant

800G OSFP SR8 Optical Transceiver Module High-Speed, Low Power, MSA Compliant
800G OSFP SR8 Optical Transceiver Module High-Speed, Low Power, MSA Compliant
Categories Optical Transceiver Module
Certification: CE/FCC/RoHS/UL/TUSUD Mark/ISO9001/ISO1004
MOQ: 50pcs
Price: Face to face/bulk price
Brand Name: own
Model Number: 800G OSFP SR8
Place of Origin: China
Payment Terms: T/T
Supply Ability: Supply by project/batch
Delivery Time: Spot goods 3-7 days; Customization 2-4 weeks
Packaging Details: outer box
Name: Optical Transceiver Module
Model NO.: CC-OSFP08SR8-12D
Performance: 800G OSFP SR8
Speed: 800G
Specification: 400*265*100mm
Hot-pluggable: Yes
Supply Voltage: 3.3 V
Operating Case Temperature: Commercial 0–70 °C; 10G offers industrial –40–85 °C option.
Management / Diagnostics: High-speed: CMIS Rev 5.0+ with I²C; 10G: SFF-8472 DDM with I²C.
Applications: Data-center Ethernet, HPC/InfiniBand NDR, cloud/backbone & metro, access & aggregation.
Compliance / Environmental: CE/FCC/UL/TUV /RoHS
Condition: New
Contact Now
Company Info.
Hong Kong Starsurge Group Co., Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

800G OSFP SR8 Optical Transceiver Module High-Speed, Low Power, MSA Compliant

800G OSFP SR8 Optical Transceiver — High-Speed, Low Power, MSA Compliant

1. Product Overview

800G OSFP SR8 optical transceiver module designed for high-bandwidth data centers and high-performance computing environments. It supports 800G Ethernet and InfiniBand NDR applications over multimode fiber with a reach of up to 100m on OM4. Compliant with industry standards, this hot-pluggable module offers low power consumption and robust performance.

2. Key Features

  • Hot-pluggable OSFP form factor with dual MPO-12 APC connectors
  • Compliant with OSFP MSA, IEEE P802.3db/D3.0, and IEEE P802.3ck
  • Supports CMIS Rev 5.0+ for advanced management
  • Maximum power consumption: 17W (1.5W in low-power mode)
  • Reach: 70m on OM3, 100m on OM4 multimode fiber
  • Digital diagnostics via I2C interface

3. Technology & Standards

This optical module uses PAM4 modulation with a per-lane signaling rate of 53.125 GBd. It complies with the OSFP MSA Type2 specification and supports Common Management Interface Specification (CMIS) Rev 5.0 or later for seamless integration and monitoring.

4. Working Principle

The transceiver converts electrical signals from the host system into optical signals using VCSEL arrays, transmitting over eight parallel fiber lanes. On the receive side, it converts incoming optical signals back to electrical data using integrated photodiodes, ensuring high-speed, low-latency communication.

5. Applications

  • InfiniBand NDR interconnects
  • 800G SR8 Ethernet networks with FEC
  • 8x100GbE breakout applications
  • Data center spine-leaf architectures
  • High-performance computing clusters

6. Specifications

ParameterMinTypicalMaxUnit
Operating Temperature0—70°C
Supply Voltage3.1353.33.465V
Power Consumption——17W
Tx Output Power (per lane)-4.6—4.0dBm
Rx Sensitivity (per lane)——-4.6dBm

7. Advantages

  • Lower power consumption compared to competing optical transceiver modules
  • Dual MPO-12 connectors enable easy integration and high port density
  • Advanced digital diagnostics for real-time monitoring and management
  • Designed for compatibility with major switch and router platforms

8. Service & Support

We offer a 3-year warranty, global shipping, and 24/7 technical support. Our team provides integration assistance and custom configuration upon request.

9. Frequently Asked Questions

Q: What is the maximum distance supported?
A: Up to 70m on OM3 and 100m on OM4 multimode fiber.

Q: Is this module compatible with 100G breakout modes?
A: Yes, it supports 8x100GbE breakout applications.

Q: What is the operating temperature range?
A: 0°C to 70°C case operating temperature.

10. Precautions

  • Ensure proper ESD handling during installation.
  • Use only approved cleaning tools for MPO connectors.
  • Verify host system compatibility before deployment.
  • Avoid bending fiber beyond minimum bend radius.

11. Company Introduction

China Cloud Electro Optics Technology Co., Ltd.

China Cloud Electro Optics Technology Co., Ltd. has over a decade of experience in the networking hardware industry. With a large manufacturing facility and a strong R&D team, we specialize in high-speed optical modules, switches, network adapters, and wireless solutions. We represent leading brands including Mellanox, Ruckus, Aruba, and Extreme. Our extensive inventory and global supply chain enable us to deliver high-quality products at competitive prices, backed by 24/7 customer and technical support.
