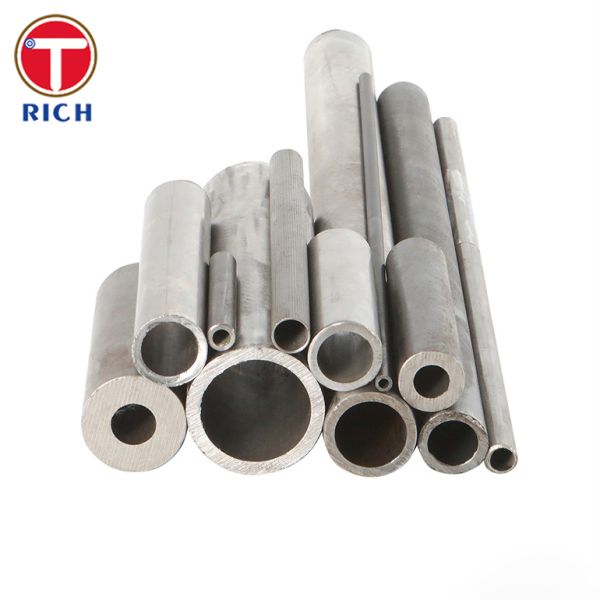

DOM Round Steel Tube 1020 Low Carbon Welded Pipe for Mechanical Use

DOM Round Steel Tube 1020 Low Carbon Welded Pipe for Mechanical Use

DOM Round Steel Tube 1020 Low Carbon Welded Pipe for Mechanical Use
DOM Round Steel Tube 1020 Low Carbon Welded Pipe for Mechanical Use
Categories Welded Steel Tube
Brand Name: TORICH
Model Number: ASTM A519 T5
Certification: API,CE,ISO,ISO9001-2008,ISO9001
Place of Origin: Zhejiang/China
MOQ: 1Ton
Price: 800-1300 USD/Ton
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 60000 Ton/Tons per Year
Delivery Time: 20-30days upon products
Packaging Details: In bundles or in wooden boxes.
Application: Structure Pipe,Hydraulic Pipe,Construction,Fluid Pipe,Oil Pipe
Outer diameter(round): 30 - 426 mm
Length: 6M or as requirement,As customer's require,8m,5.8m,2.5-8m
Thickness: 2 - 50 mm
Standard: ASTM,DIN,GB,JIS,API
Technique: Cold Drawn,Hot Rolled,Cold Rolled,ERW,Hot Rolled/Cold Drawn
Grade: 1008 1010 1015 1018 1020
Contact Now
Company Info.
TORICH INTERNATIONAL LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

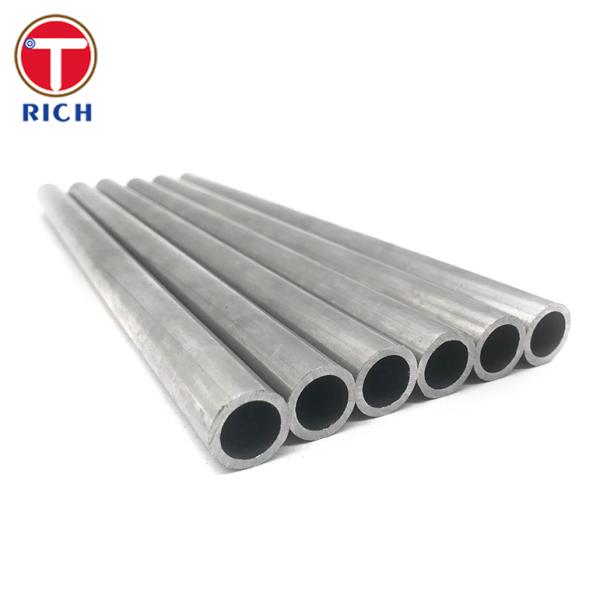

DOM Round Steel Tube 1020 Low Carbon Welded Pipe for Mechanical Use

DOM Round Steel Tube 1020 Low Carbon Steel Welded Pipe For Mechanical Equipment

Material

Drawn Over Mandrel (DOM) round steel tubing is produced from an electric-resistance-welded (ERW) tube that is cold drawn through dies and over a mandrel to remove weld flash, achieving precise outside and inside diameters, superior surface finish, and enhanced mechanical properties. This product is manufactured from low-carbon AISI 1020 steel, noted for its excellent weldability, formability, and machinability.

Specifications

  • ASTM Compliance: ASTM A513 Type 5 (DOM mechanical tubing)

  • Outer Diameter: 0.1875" – 5" (4.8 – 127 mm)

  • Wall Thickness: 0.028" – 0.625" (0.7 – 15.9 mm)

  • Tolerances (OD): per ASTM A513 Type 5 (e.g., +0.005"/0.000 for 0.500"–1.699" OD)

  • Length: Standard 6 m (20 ft); custom lengths available on request

Chemical Composition

The table below compares key alloying limits for five common low-carbon steel grades used in DOM and precision tubing:

GradeC (%)Mn (%)P (max %)S (max %)
AISI 1008 (G10080)0.08 – 0.100.30 – 0.500.0400.050
AISI 1010 (G10100)0.080 – 0.130.30 – 0.600.0400.050
AISI 1015 (G10150)0.13 – 0.180.30 – 0.600.0400.050
AISI 1018 (G10180)0.15 – 0.200.60 – 0.900.0400.050
AISI 1020 (G10200)0.18 – 0.230.30 – 0.600.0400.050

Mechanical Properties

Mechanical properties of cold-drawn tubing for these grades are shown below:

GradeTensile Strength (MPa)Yield Strength (MPa)Elongation (%)Hardness (HB)
AISI 10083402852095
AISI 101036530520105
AISI 101538532518111
AISI 101844037015126
AISI 102042035015121

Key Features

  • Precise Dimensional Control: Achieves close OD/ID tolerances via cold drawing over mandrel.

  • Superior Surface Finish: Weld flash removed; smooth inner and outer surfaces.

  • Enhanced Strength: Cold work increases yield and tensile strengths over standard ERW tubing.

  • Excellent Machinability: Low-carbon AISI 1020 base offers good machining and weldability.

  • Cost-Effective: Manufactured from widely available low-carbon alloy with efficient ERW and cold-drawn processes.

Execution Standards

  • ASTM A513 Type 5: Electric-resistance-welded, cold-drawn mechanical tubing

  • EN: DIN EN 10250-2 C22E (1.1151) cold-drawn carbon steel round tubes

  • GOST: GOST 10704-91 electric-resistance-welded steel tubes

  • JIS: JIS G3445 STKM 13B carbon steel mechanical structural tubes

  • GB: GB/T 31315-2014 cold drawn or cold rolled precision weld steel tubes for mechanical structures

Application Fields

Mechanical Equipment—widely used where high strength, accuracy, and surface finish are critical:

  • Hydraulic Systems: Cylinder barrels, piston rods

  • Automotive Industry: Axles, gears, bushings, steering components

  • Industrial Machinery: Shafts, spindles, couplings, structural supports

  • Agricultural Machinery: Drive shafts, rollers, frame elements

  • Furniture & Construction: Support tubes, frame members requiring precise fit




Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.


Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,

it is according to quantity.


Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
